High sound quality circuit design based on the ToP-ART (Total Purity Audio Reproduction Technology) concept
(P)ToP-ART Design and ART Base Ensure Optimum Sound When processing and transmission of the audio signal is simple and direct there is less chance of it being affected by noise and distortion. Yamaha s amplifier design technology called ToP-ART features an I/O (input to output) Direct Symmetrical Design, with left and right channels organised in a straight, symmetrical layout for highest signal purity. In addition, the ART (Anti-Resonance and Tough) Base bottom chassis and a solid centre bar provide high-rigidity support and vibration damping. These Yamaha design innovations contribute to this amplifiers rich audio reproduction with abundant musicality.(/P) (BR)
High Quality Parts for Outstanding Audio Performance
(P)Custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, one-point grounding system, aluminium-extruded heat sinks and other top-quality parts effortlessly handle demanding audio signal conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of any component. Yamaha uses only very high quality parts, carefully selected and tested.(/P) (BR)
Pure Direct Mode for Greater Sound Purity
(P)The Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.(/P) (BR)
Continuously Variable Loudness Control
(P)The A-S501 also feature a new analogue loudness control on the front panel that uses electronic volume for higher sound quality, which lets you adjust the loudness effect as desired. Separate from the overall volume, this controls the balance of the low- and high- frequency sounds, providing full tonal range at any volume level, compensating for the natural loss in the human ear of high and low frequencies at soft levels.(/P) (BR)
Gold-plated Terminals
(P)Gold-plated terminals ensure a high quality connection that prevents signal loss. The A-S501 have Gold-plated speaker terminals and RCA (CD, Phono) and coaxial terminals.(/P) (BR)
Digital Audio Input for TV and/or Blu-ray Player
(P)The A-S501 is equipped for digital audio input with both optical and coaxial terminals. The optical is for receiving audio from a TV, and the coaxial for receiving audio from a Blu-ray player. The audio stays in the digital domain, giving you pure, pristine dynamic sound for all your entertainment sources, from sports and other programmes to movies and concerts.(/P) (BR)
Connection for YBA-11 Bluetooth Wireless Adapter
(P)With the YBA-11, you ll be able to stream music wirelessly from a Bluetooth capable mobile phone or a PC to the Network receiver. Thanks to the digital connection and aptX(R) audio coding algorithm, you ll enjoy wireless music streaming with optimum sound quality. You can also conveniently power the YBA-11 via the DC-out connection on the rear panel of the amplifier.(/P) (BR)
Speaker A, B or A+B Selection and Speaker Terminals for Two Systems
(P)You can connect two separate speaker systems in different rooms and switch between them, or have them both playing at the same time. There are four terminals, so by just pushing a button, you can switch speakers to match the sound source.(/P) (BR)
Simple yet Sophisticated Design
(P)With a beautifully simple and unique design inherited directly from Yamaha s HiFi audio components, this amplifier also boast an easy-to-operate button layout. The aluminium front panel has a richly textured silver hairline finish.(/P) (BR)
Remote Control with Clean, Simple Design
(P)The clean, simple design of the remote control provides easy-to-understand one-hand operation. The easy-to-use design makes it simple to adjust song volume and order. The unit has a sophisticated looking hairline finish that matches the design of the amplifiers. You can also use the remote to control a Yamaha CD player.(/P) (BR)
Auto Power Standby Function
(P)The amplifier has a power management function that detects when it hasn't been used for a long time (about 8 hours) even though the power is on, and automatically shifts it into standby mode. So even if you forget to turn it off, power consumption will be minimised.(/P) (BR)

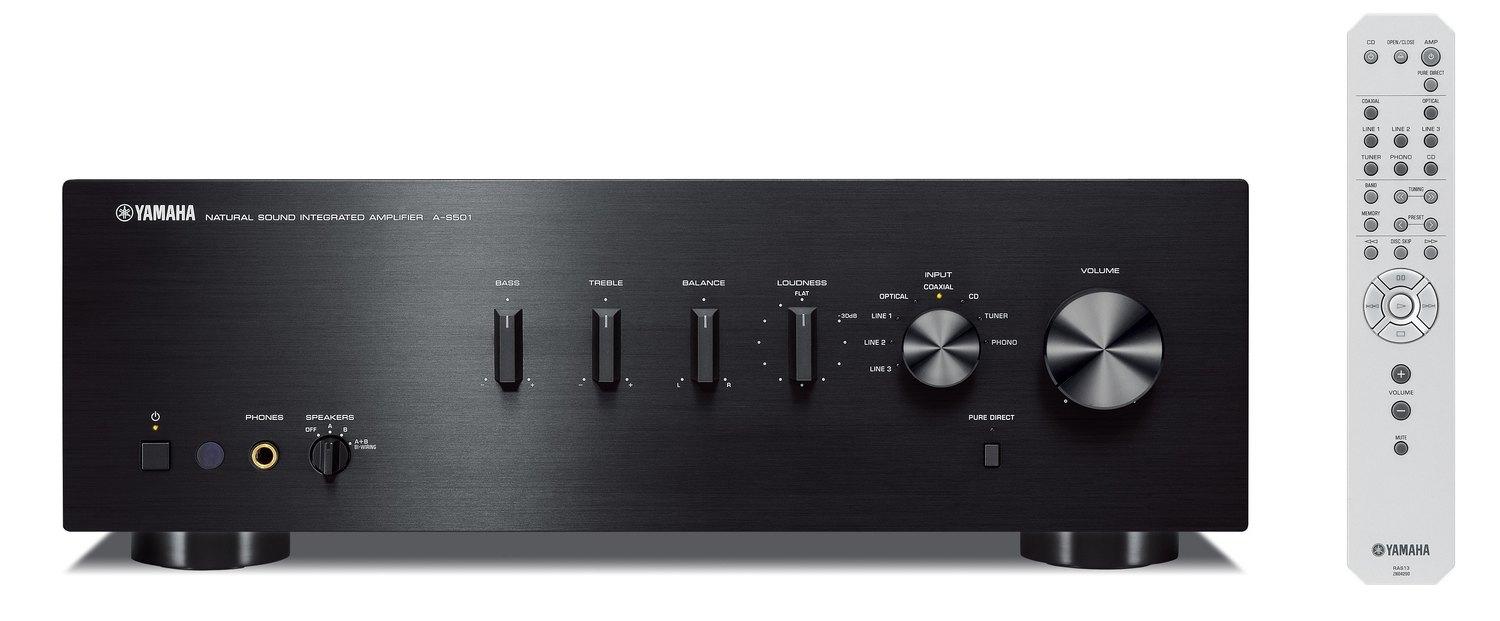

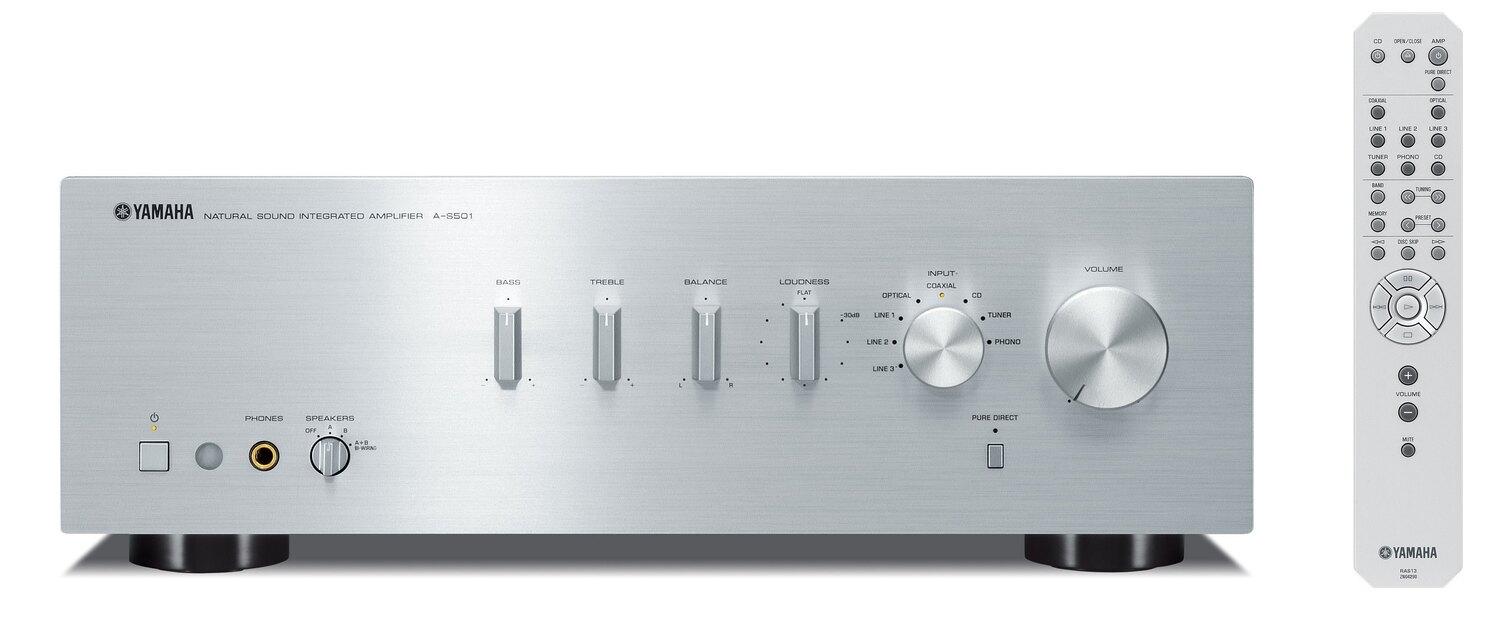

Impressive high quality sound with a wide range of features and an elegant appearance. An integrated amplifier with the advantage of digital inputs.
- 85 W x 2-ch <20 Hz - 20 kHz>
- Digital audio inputs for TV and Blu-ray Disc
player - Pure Direct mode for greater sound purity
- ToP-ART
and high quality parts - I/O direct symmetrical design
- ART
Base - Custom-made power transformer / 12,000 F block capacitors / extruded aluminum heat sinks
- Gold-plated speaker terminals and RCA terminals
- Simple yet sophisticated design
- Continuously Variable Loudness Control
| Receiver / Integrated Amplifier | |
| Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) | 85 W + 85 W (0.019% THD) |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 130 / 150 / 185 / 220 W |
| Frequency Response | 10 Hz -100 kHz +/- 1.0 dB |
| Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) | 0.019% (50 W / 8 ohms) |
| Signal-to-Noise Ratio (CD) | 99 dB (input shorted, 200 mV) |
| Damping Factor | 240 |
| Digital Input | Yes (optical / coaxial) |
| Audio In / Out | 8 / 2 |
| Subwoofer Out | Yes |
| Pure Direct | Yes |
| ToP-ART | Yes |
| DC out | Yes |
| Standby Power Consumption | 0.5 W |
| Power Management (Auto Power Standby) | Yes |
| Dimensions (W x H x D) | 17-1/8" x 6" x 15-1/4" |
| Weight | 22.7 lbs. |
ADDITIONAL FEATURES
Remote Control
AUDIO FEATURES
120W + 120W Maximum Power
240 Damping Factor
Pure Direct
ToP-ART Technology
Continuous Variable Loudness Control
CONNECTIONS
Analog Audio 8 In/2 Out
Coaxial Digital Audio Input
DC Out
Optical Digital Audio Input
Subwoofer Out
Gold-Plated Speaker Terminals
Phono Input
CONVENIENCE FEATURES
Auto Power Standby
Wireless Music Streaming (w/YBA-11)
DIMENSIONS
6" H x 15 1/4" D x 17 1/8" W
MANUFACTURERS WARRANTY
2 Year Parts & Labor Limited Warranty
Products specifications
| Color | BLACK |
| WiFi Connected | No |
| CHANNELS | 2 |
| Rooms | Single Room |
| Total Power | Less than 500W |
| Airplay | No |
| HD Radio | No |
| Internet Streaming | No |
