SQD-MINI LED
As the ultimate Mini LED TV, it integrates the expansive TCL Deep Color System with the breakthrough TCL Enhanced Halo Control System to ensure the most brilliant, pure, and immersive viewing experience possible.
Extraordinary Color Ultra Brightness Ultra Contrast
EXTRAORDINARY COLOR
Dive into vivid, true-to-life color that brings every scene to life with striking vibrancy and realism.
DEEP COLOR SYSTEM
TCL DEEP COLOR SYSTEM
The TCL Deep Color System is an advanced color suite that blends Super Quantum Crystals
* 100% of BT2020 Color is based on typical achievement of 100% of the BT2020 Color Ratio. Actual results may vary slightly due to differences in the test environment, standards, and equipment, as well as other factors such as reasonable production batch variations. More vivid images with 100% BT2020 Color*
TCL ULTRACOLOR FILTER
TCL ULTRACOLOR FILTERTCL s UltraColor Filter with fine 5-nanometer particles
SUPER QUANTUM DOTS
The all-new TCL Super QLED provides 100% of BT 2020 Color*, capturing the widest modern color range available for more vivid colors and nuanced shades for exceptional accuracy and realism.
* 100% of BT2020 Color is based on typical achievement of 100% of the BT2020 Color Ratio. Actual results may vary slightly due to differences in the test environment, standards, and equipment, as well as other factors such as reasonable production batch variations.
HVA 2.0 PRO PANEL
TCL ULTRACOLOR FILTER
TCL s UltraColor Filter with fine 5-nanometer particles
TCL ADVANCED COLOR PURITY ALGORITHM
The TCL Advanced Color Purity algorithm ensures an overall more consistently accurate color reproduction frame-by-frame.
HVA 2.0 PRO PANEL
The HVA 2.0 Pro Panel provides a stunning picture in nearly any environment with the high contrast, anti-reflective panel.
HIGH STATIC CONTRAST
Experience exceptional picture quality driven by a high 6000:1 contrast ratio for stunning clarity between light and dark scenes.
HIGH ZONES & HIGH BRIGHTNESS
Up to 2,100+ Discrete Dimming Zones and up to 3,000 Peak Nits combine for a picture that is brighter, deeper, and more realistic.
Brighter, deeper, and more realistic pictures.
UP TO 3,000 PEAK NITS
Up to 3,000 Peak Nits provides a great picture in virtually any room lighting environment. Together with the TCL Enhanced Halo control system, the result is high contrast images with dazzling specular highlights for amazing HDR impact.
UP TO 2,100+ DISCRETE DIMMING ZONES
Up to 2,100+ Discrete Dimming Zones provide pure black levels with up to 2,100+ precisely controlled discrete local dimming zones.
TSR AI PROCESSOR
Harnessing the power of AI to finely control Picture Clarity, Contrast, Color, Motion, Upscaling, and Backlighting, all dynamically, based on the incoming video signal.
144HZ PANEL REFRESH RATE
Experience fluid, natural movement, and clarity in every scene.
GOOGLE GEMINI INTERACTIVE AI
Experience a smarter, more intuitive TV that responds to you with interactive AI for a truly personalized entertainment experience.
Your TV, Now Smarter with Google Gemini.
EXPANDABLE HOME THEATER AUDIO
Experience every whisper and explosion with Audio by Bang & Olufsen, optional wireless subwoofer and satellite speakers that complement the high-performance, built-in speakers.
Audio by Bang & Olufsen, optional wireless subwoofer, and satellite speakers.
AUDIO BY BANG & OLUFSEN
Sound experiences elevated by Bang & Olufsen.
ELEGANT COSMETIC DESIGN
TCL HALO CONTROL SYSTEM - PRECISE DIMMING
An advanced Technology Suite that includes the Super High Energy LED Microchip, Super Condensed Micro Lens, Super Micro-OD Reduced Optical Distance, WHVA 2.0 Ultra Panel, Super Quantum Crystals, Fast Transient Response, new 26-bit Backlight Controller, and for Stunning Halo-Free Images.
GAME ACCELERATOR 288 VRR
Blistering fast 288 VRR eliminates screen tearing and lag, ensuring a responsive, fluid, and game-winning experience.
TCL ENHANCED HALO CONTROL SYSTEM - PRECISE DIMMING
An advanced Technology Suite that includes the Super High Energy LED Microchip, Super Condensed Micro Lens, Super Micro-OD Reduced Optical Distance, HVA 2.0 Pro Panel, Super Quantum Crystals, Fast Transient Response, new 26-bit Backlight Controller, and for Stunning Halo-Free Images.
COMPLETE HDR
Utilizing every advanced HDR format available, enjoy vastly enhanced contrast, pristine color accuracy, and details you've never seen before.
| TCL 7-Series | |
| Model | 75QM7L |
| Screen Class | 75" |
| Viewable Display Size | 74.5" |
| DISPLAY | |
| FullView Metal Bezel-Less Design | Yes |
| Panel Resolution | 4K UHD (3840 x 2160) |
| Aspect Ratio | 16:9 |
| Panel Refresh | 144Hz |
| Motion Enhancement Technology | Motion Rate 480 with MEMC |
| Panel Type | HVA 2.0 Pro Panel |
| Auto Game Mode (ALLM) | Yes |
| Game Bar | Yes |
| Variable Refresh Rate (VRR) | Yes |
| Game Enhancement Technology | Game Accelerator 288 |
| Freesync Certification | FreeSync Premium Pro |
| IMAX Enhanced | Yes |
| TCL AIPQ Processor | TSR AI Processor |
| Display Technology | QLED TV |
| Mini-LED / Local Dimming Type | SQD-Mini LED |
| Dimming Zones | Up to 2100+ Discrete Dimming Zones |
| Peak Brightness (nits) | Up to 3000 Peak Nits |
| Wide Color Gamut | 100% BT.2020 Color |
| Display Colors | 1.07 billion |
| Viewing Angle (Horizontal / Vertical) | 178° / 178° |
| High Dynamic Range (HDR) Format | Dolby Vision IQ / HDR10 / HDR 10+ / HLG |
| FEATURES | |
| Control Buttons | one button |
| Photos / Audio / Video Playback via USB | Yes |
| Program Guide (EPG) | Yes |
| Auto Channel Search / Channel Scanning | Yes |
| Multilingual On-Screen-Display | English / Spanish / French |
| Channel Label Edit | Yes |
| Input Label Edit | Yes |
| Channel Skip | Yes |
| Closed Caption | Yes |
| Parental control (V-Chip) | USA |
| Clock | Yes |
| Accessible Menu System (CVAA) | Yes |
| Sleep Timer | Yes |
| Store Mode | Yes |
| Live TV Pause from antenna (up to 30 minutes) | Yes |
| VIDEO (Picture) | |
| Adjustable Color Temperature | Warm / Normal / Cool |
| Filmmaker Mode | Yes |
| IMAX Mode | Yes |
| Dolby Vision Mode | Dolby Vision IQ / Dolby Vision Bright / Dolby Vision Dark |
| Picture Mode | Vivid / Low Power / Sports / Filmmaker Mode / Movie / Game / PC / Intelligent |
| Picture Size | 16:9 / 4:3 / Wide Zoom / Zoom 2 / Wide Zoom 2 / Stretch Zoom |
| Ambient Light Sensor | Yes |
| AUDIO | |
| Speaker System | Audio by Bang & Olufsen |
| Dolby Atmos FlexConnect Capable | Yes, Up to 3x Z100 and 1x Z100-SW |
| Audio Power (Watts) Speakers | N/A |
| Audio Presets | Movie / Music / Speech / Game / Night / Sport / Custom |
| Audio Passthrough | Dolby Atmos / Dolby Digital+ / Dolby Digital / PCM |
| Dolby Processing | Dolby Atmos / Dolby Digital+ / Dolby Digital |
| DTS Processing | DTS:X |
| DTS Virtual:X | No |
| CONNECTED TV | |
| Smart Platform | Google TV |
| Casting / Screen Mirroring | Chomecast |
| Works With | Google Assistant |
| Hands-Free Voice Control | Yes |
| Push-To-Talk Voice Control | / |
| Wi-Fi | Wi-Fi 5 |
| Bluetooth | 5.4 |
| USB FEATURE | |
| Photo Viewer | JPEG / PNG / BMP / HEIF |
| Audio Player | MP3, MKV, WMA, AVI |
| Video Player | H.264, H.265, MPEG1/2/4, WMV, VC1, VP9, AV1 |
| Software Upgrade | Network Update |
| SIGNAL FORMAT | |
| Tuner Type | ATSC 1.0 / NTSC / Clear QAM |

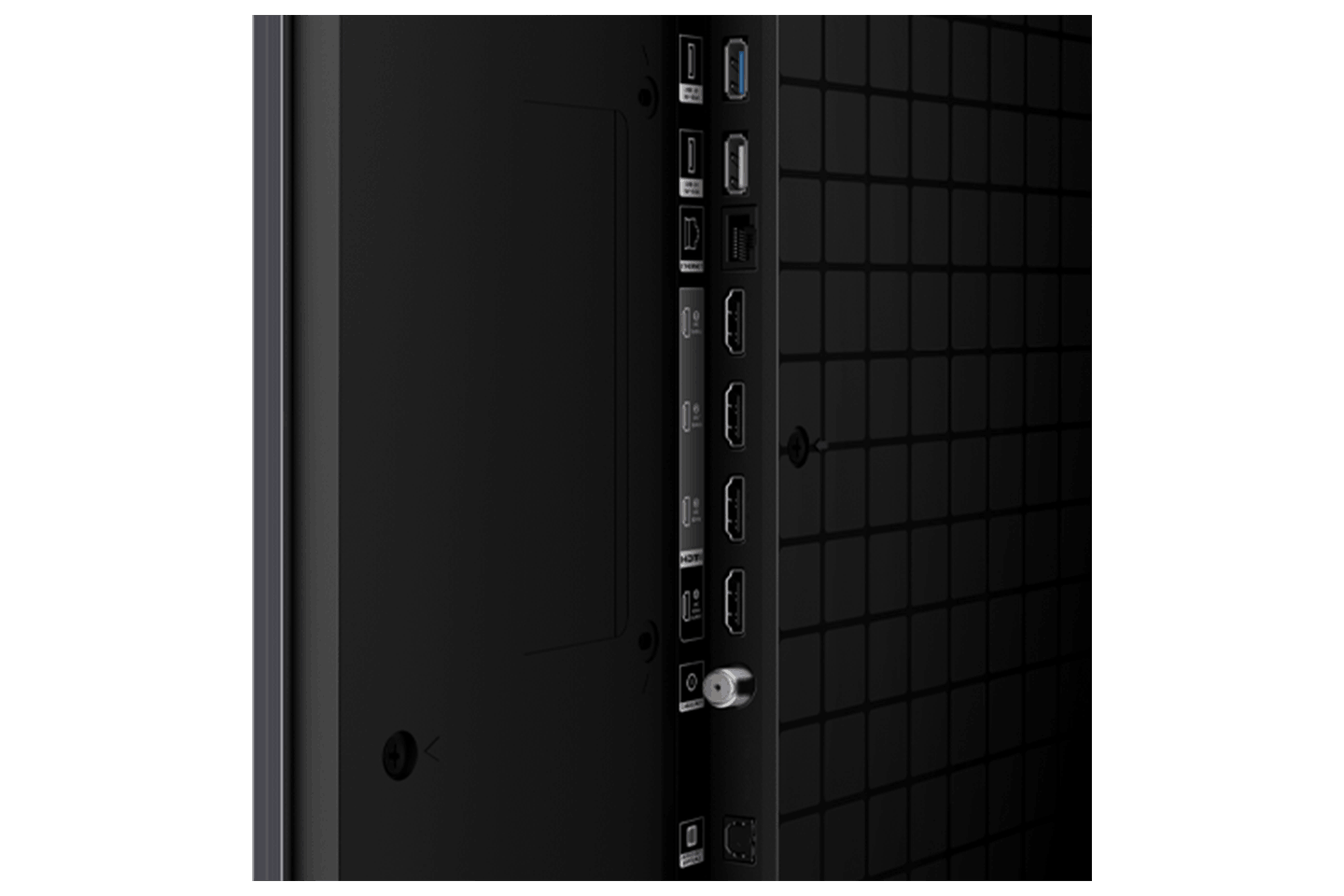

| CONNECTIVITY | |
| AV Input | No |
| RF Input | 1 |
| Ethernet | 1 |
| USB | 1x USB3.0 & 1x USB 2.0 |
| HDMI | 4x HDMI 2.1 (HDMI 1-2: 4K@144Hz) (HDMI 3-4: 4K@60Hz) HDMI4 with eARC |
| SPDIF Digital Audio Optical | 1 |
| Audio Output Headphone | No |
| ENERGY INFORMATION | |
| Energy Star | No |
| Energy Guide | TBD |
| Power Consumption (watts) | 370W |
| Standby Power (watts) | 0.5 |
| ACCESSORIES (INCLUDED) | |
| Warranty Info | 1 (English) |
| Quick Start Guide(QSG) | 1 (English) |
| Power Cord Type | Detachable |
| Remote Control Type | Backlit Voice (RC923A) |
| Remote Control Battery | 2 "AAA" |
| PRODUCT & PACKAGE INFORMATION | |
| Carton | Honeyboard / Color-Printed Box |
| Product Size (WxHxD) With Stand (inches) | 65.60*39.20*14.50 |
| Product Size (WxHxD) Without Stand (inches) | 65.60*37.80*2.20 |
| Pedestal Width (inches) | 15.20 |
| Product Size (WxHxD) With Stand (mm) | 1666.00*995.00*367.00 |
| Product Size (WxHxD) Without Stand (mm) | 1666.00*960.00*56.70 |
| Pedestal Width (mm) | 386.00 |
| Product Weight With Stand (lbs) | 58.60 |
| Product Weight With Stand (kg) | 26.60 |
| Product Weight Without Stand (lbs) | 54.20 |
| Product Weight Without Stand (kg) | 24.60 |
| Package Size (WxHxD) (inches) | 72.80*44.30*7.00 |
| Package Size (WxHxD) (mm) | 1850.00*1125.00*178.00 |
| Total Package Weight (lbs) | 80.00 |
| Total Package Weight (kg) | 36.30 |
| VESA MOUNTING SPECIFICATIONS | |
| VESA Mounting | YES |
| VESA Hole Pattern | 300X300 |
| Distance from TV to VESA mount mm | TBD |
| Screw Size | M6 |
| Screw Length (mm) | 16 |
| Screw Pitch (mm) | 1 |
| BASE STAND SPECIFICATIONS | |
| Screw Size | M5 |
| Screw Length (mm) | 16 |
| Screw Pitch (mm) | 0.8 |
| Quantity | 4 |
| INDUSTRIAL DESIGN | |
| Finish on Front | Black |
| Finish on Back | Black |
| Finish on Stand | Black |
| Cable Management | Yes |
| Adjustable Height Stand | Yes |
| WARRANTY (SEE QUICK START GUIDE FOR DETAILS) | |
| * All Product Specifications Are Subjected to Change Without Notice. | 1-year |
| SCREEN SIZE | 75" |
| Resolution | 4K |
| WiFi Connected | No |
| Width | 72.80 |
| Height | 44.30 |
| Depth | 7.00 |
