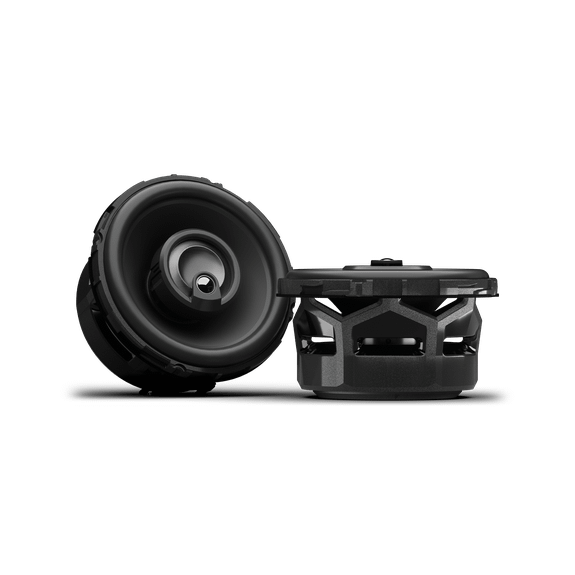

The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.

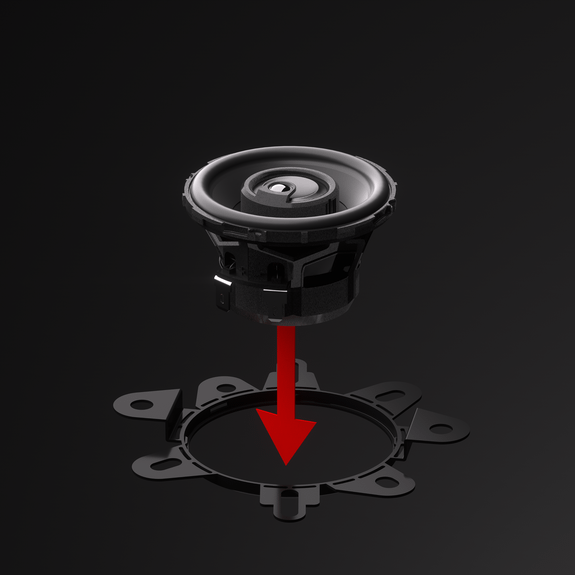

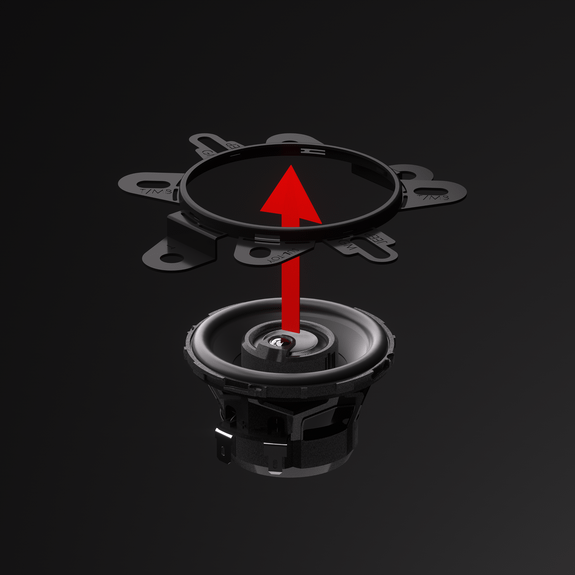

Auto Fit Architecture: Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today s modern vehicles. Our Factory Location Woofer Ring
Superior Flexibility: No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Performance Driven: Powered by our advanced VAST 2.0
Built to Last: Every component. Every material. Chosen for strength. Built for the long haul. From reinforced carbon fiber baskets to Santoprene
Punch Speakers Launch
Punch Speakers Overview
Punch Speakers Comparison
Punch Speakers First Look

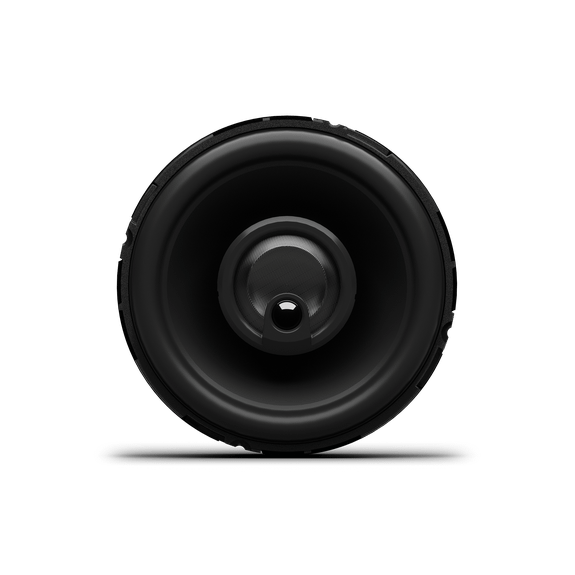

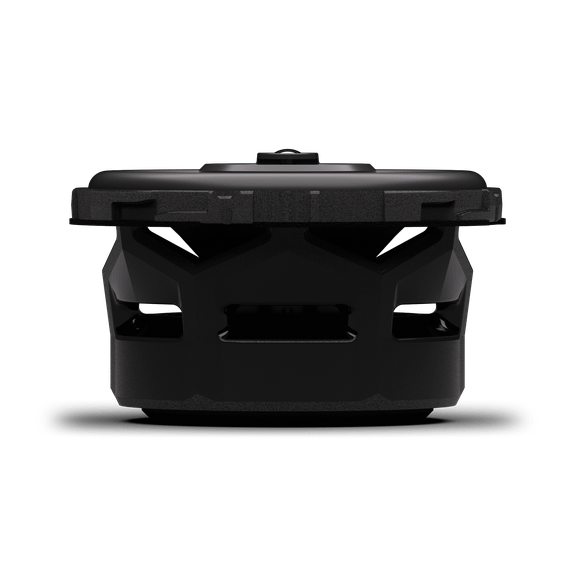

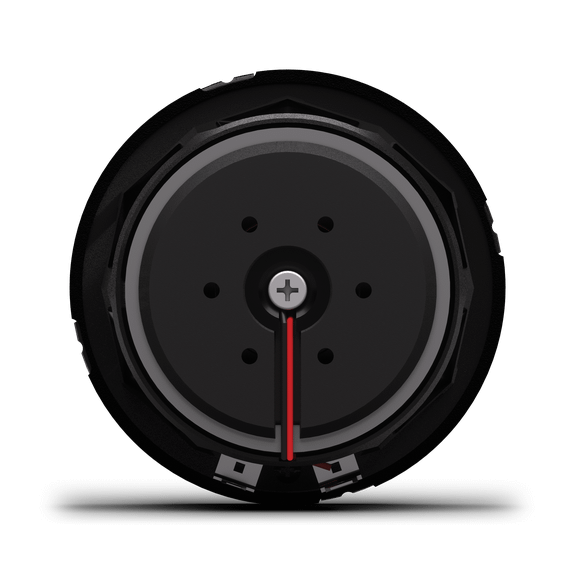

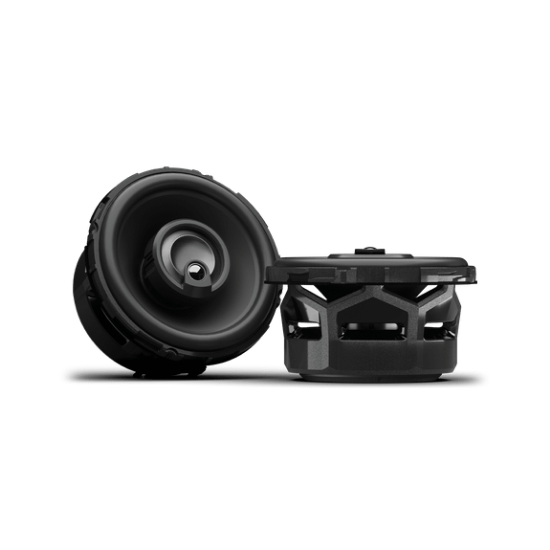

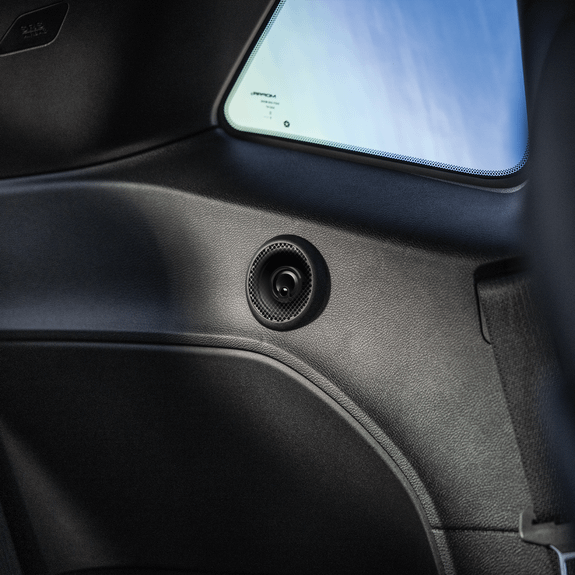

The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don't have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and "punch".

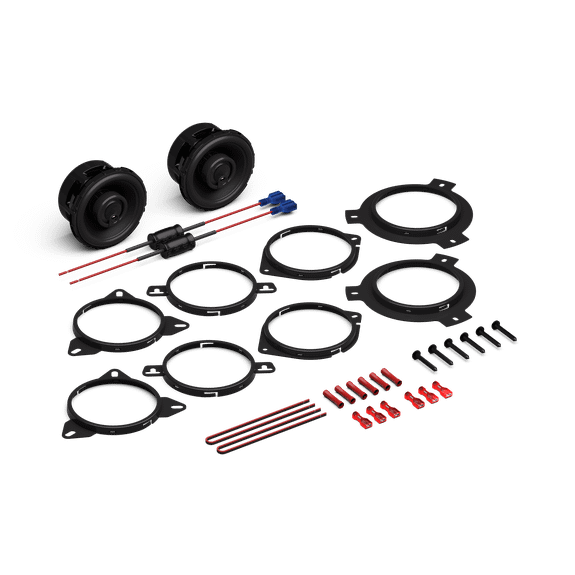

Kit Includes:
<2> 3.5" 4Ω Coaxial Speakers

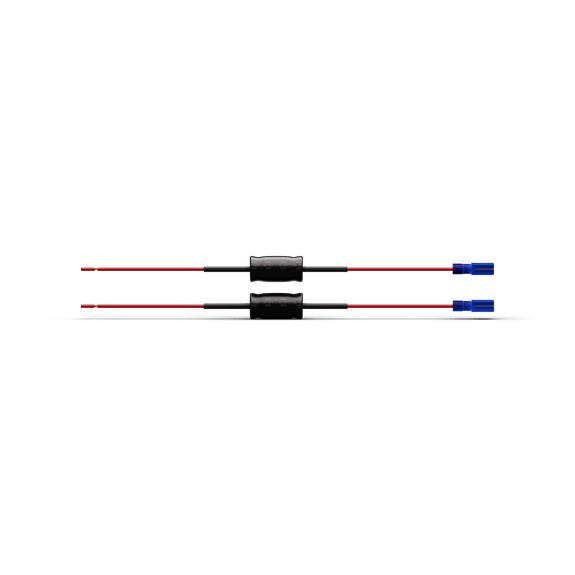

<2> Bass Blockers

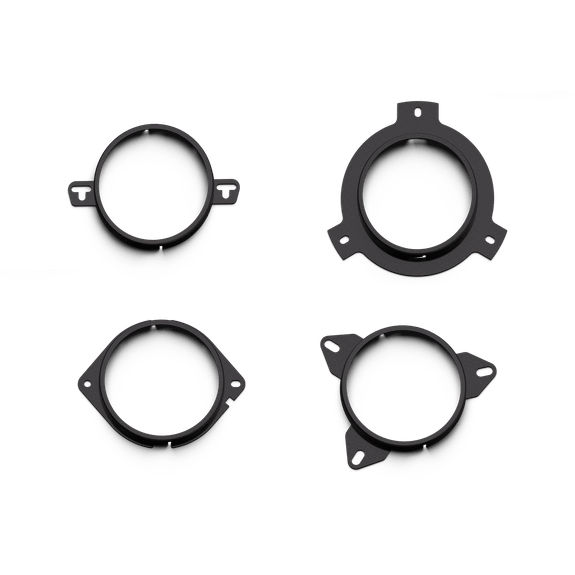

<4> OEM Adaptors
Installation Hardware
| CTA-2031 Compliant | |
| Speaker Type | Coaxial |
| Midrange Size (Nominal Diameter) | 3.5" |
| Tweeter Size (Nominal Diameter) | 3/4 (19 mm) Inverted Dome |
| Piezo Size (Nominal Diameter) | 3/8 (9 mm) Co-Witnessed Convex |
| Nominal Impedance (Ohms) | 4 |
| Frequency Response (Hz) | 98Hz - 25kHz |
| Voice Coil Diameter (in/mm) | 1" (25.4 mm) |
| Crossover | Tweeter High-Pass: 9kHz @ 6 dB/Octave Midrange Bass Blocker: 1,200Hz @ 6 dB/Octave (33 F) |
| Power Handling (Watts RMS) | 75 Watts RMS 150 Watts Peak |
| Fs (Hz) | 130 Hz |
| Sensitivity (dB @ 1W/1M) | 82 dB |
| Sensitivity (2.83V/1M) | 85 dB |
| Cutout Diameter | 2.87" (73 mm) |
| Rear-Loading Depth (Twist-Lock Adaptor) | 1.48" (37.7 mm) |
| Front-Loading Depth (Twist-Lock Adaptor) | 1.7" (43.3 mm) |
| Mounting Depth (With Motor Cover) | - |
| Min. Mounting Depth (No Motor Cover) | - |
| Front Side Clearance | 0.53" (13.4 mm) |
| Removable Motor Cover | No |
| Grille/Trim Ring Included | No |
| Included in the Box | (2) 3.5 4 3-Way Coaxial Speakers (1) 3.5 Speaker Cutout Template (2) 3.5 2-Tab Twist-Lock Adaptors (2) 3.5 3-Tab Twist-Lock Adaptors (2) 3.5 3-Tab Wide Twist-Lock Adaptors (2) 3.5 2-Tab Wide Twist-Lock Adaptors (2) 33 F Non-Polarized Cap (Bass-Blockers) (6) Self-Tapping Phillips #8x32mm (Speaker) (2) 18 AWG Red/Black Speaker Wire, 205 mm (3) 18 AWG (-) Female Crimp Spade Conn. (.187 ) (3) 18 AWG (+) Female Crimp Spade Conn. (.250 ) (6) 18 AWG Crimp Butt Connectors |
| Mounting Hardware | Yes |
| Shipping Weight | 3.5 Lbs. (1.59 Kg.) |
| WiFi Connected | No |
