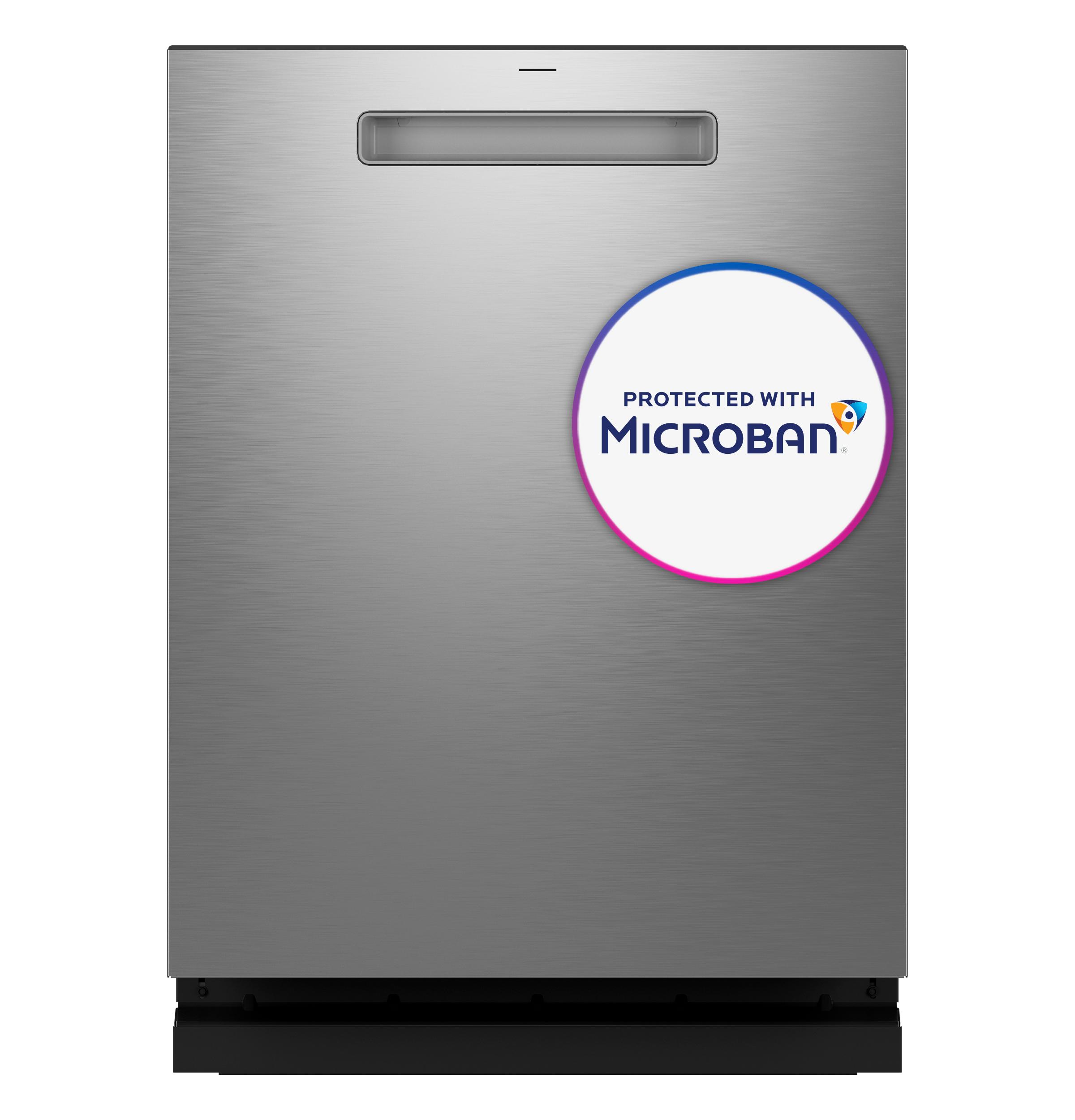

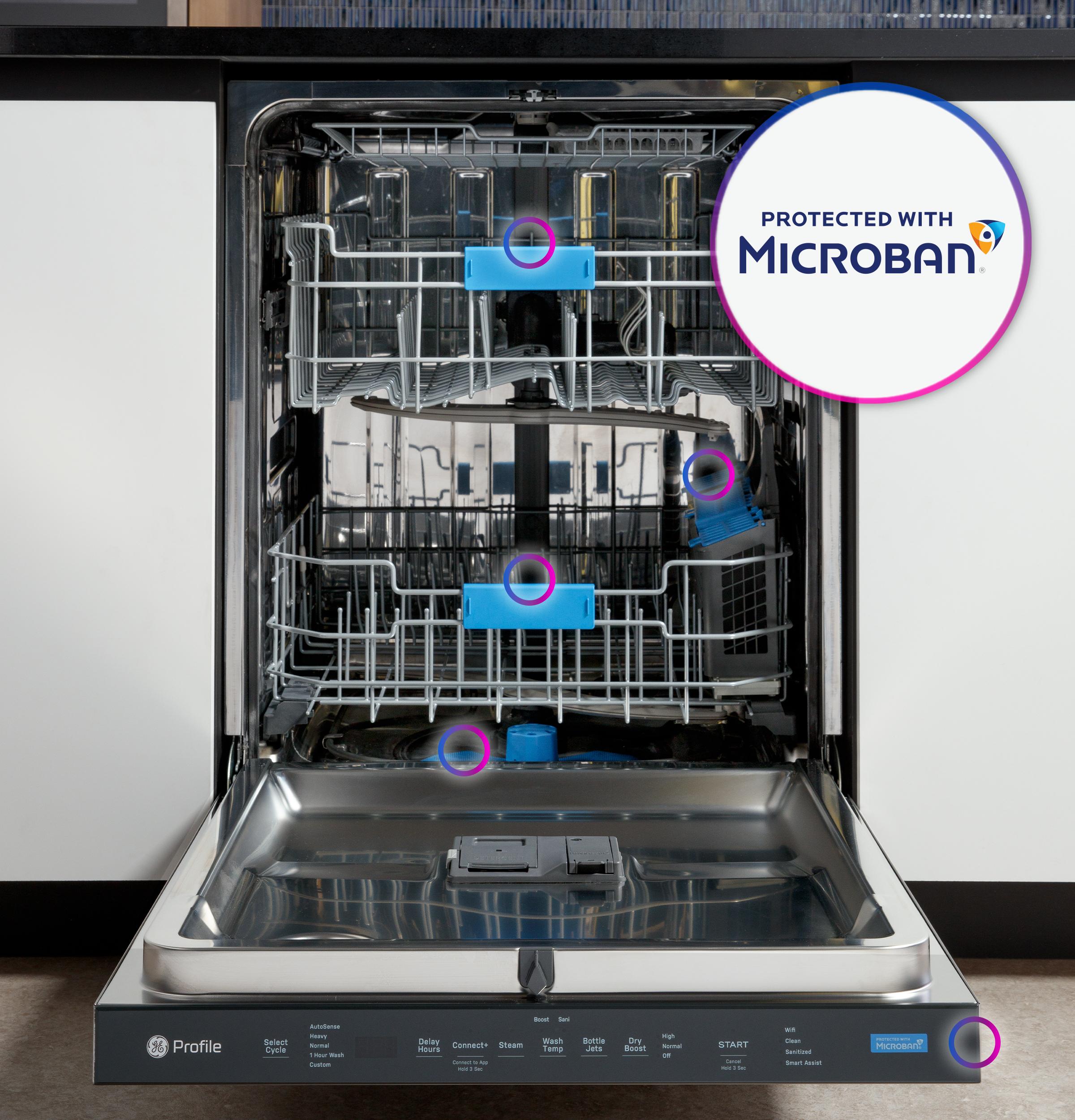

Microban(R) Antimicrobial Technology

Enjoy longer-lasting dishwasher protection thanks to Microban(R) Antimicrobial Technology. Built into high-usage touchpoints to help prevent bacteria growth, it keeps protected surfaces 99% cleaner than unprotected surfaces

Dry Boost(TM)

Dry Boost(TM) technology outperforms standard heated-dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier when compared to heated dry

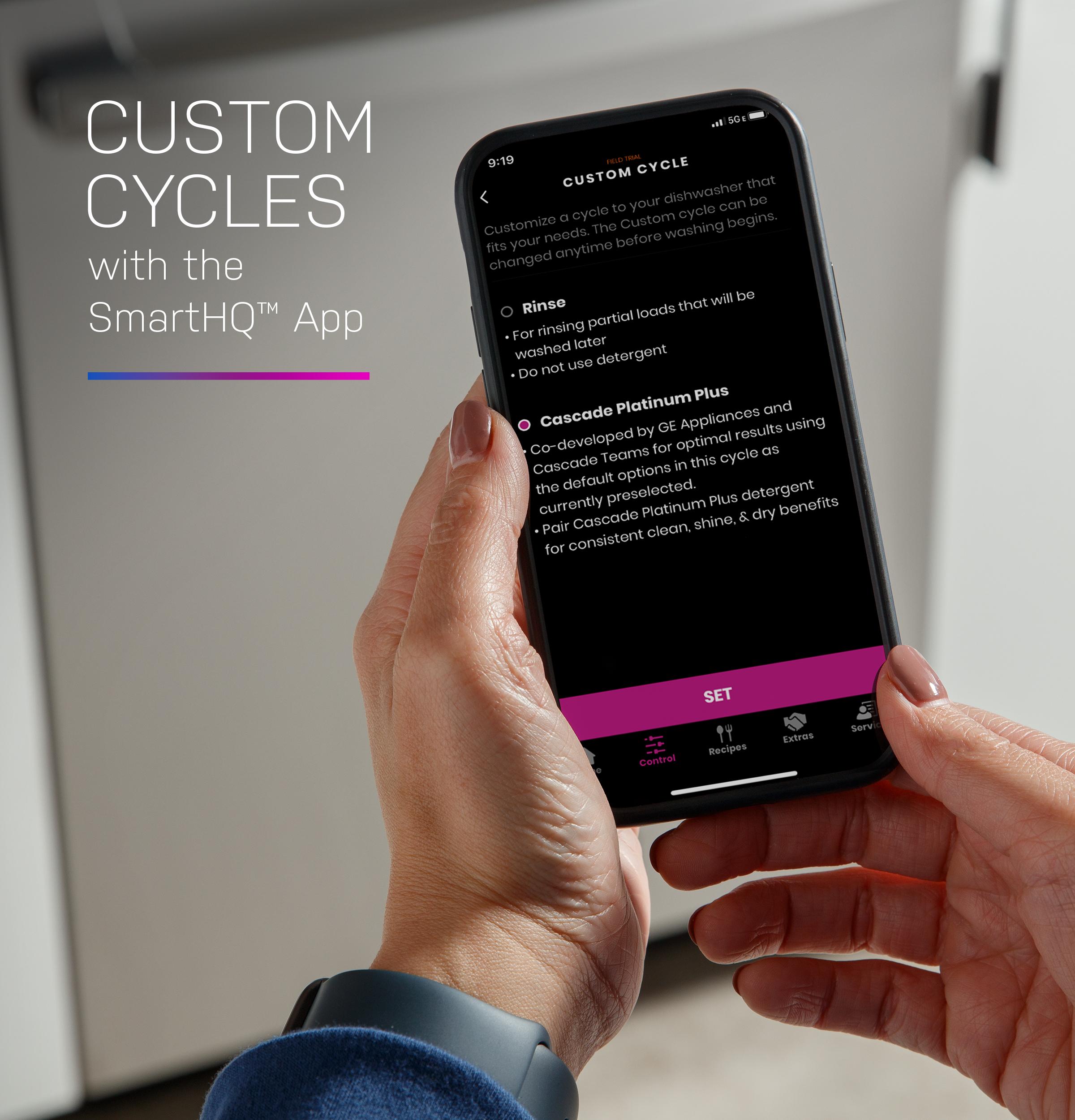

Smart Features Powered by SmartHQ(TM)

Built-In WiFi and the SmartHQ(TM) app make it easy to connect, control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features, including customized cycles, remote status notifications and more

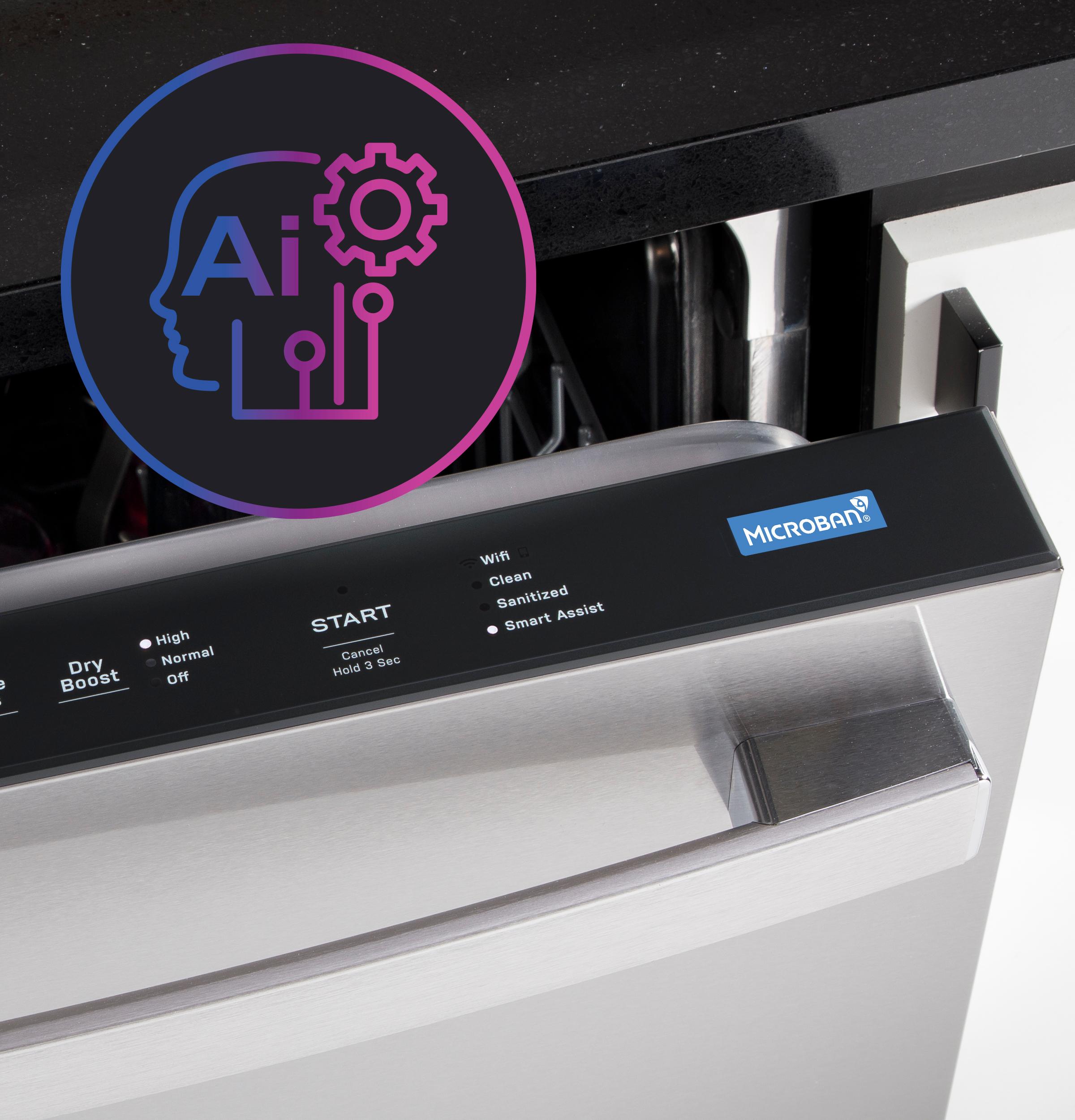

Smart Assist

Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time

Deep Clean Silverware Jets

A system of deep clean silverware jets blasts the silverware basket from the bottom up, removing all stuck-on foods and providing sparkling results

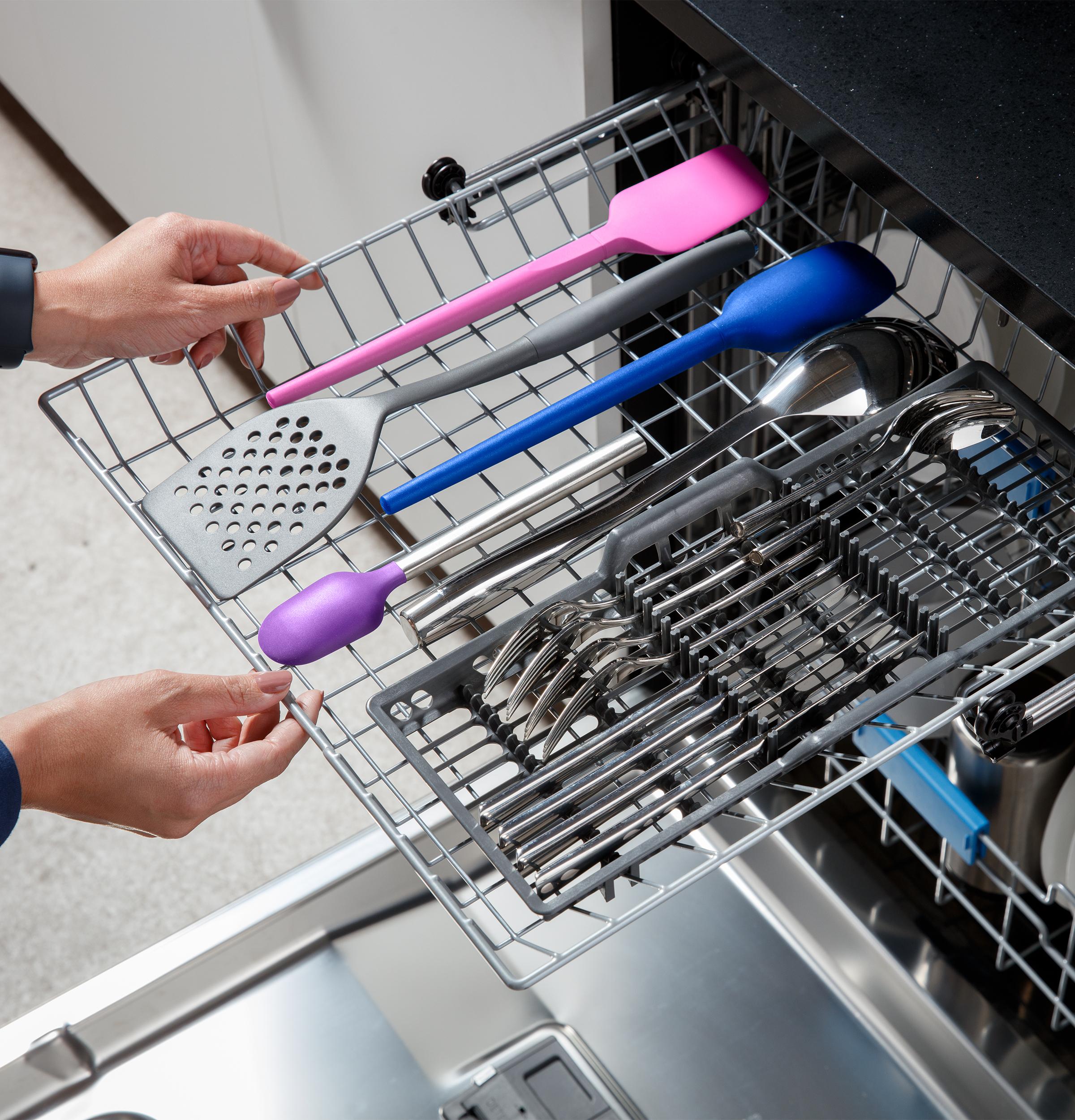

Third Rack with Removable Silverware Caddy

The versatile third rack was redesigned to load more than just silverware with additional space for unique items

Active Flood Protect

To prevent potential overflows, a sensor detects when the water is too high and pumps it out until a safe level is reached

4 Bottle Wash Jets

This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the 4 bottle wash jets directs water and detergent inside to effectively wash hard-to-reach areas

Steam + Sani

Save time with a high-temperature cycle that steams and sanitizes to loosen tough soils before the wash cycle begins, reducing bacteria by 99.999% without pre-rinsing or soaking

Piranha(TM) Hard Food Disposer

The Piranha(TM) Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design makes sure wash arms stay unclogged

44 dBA Dishwasher

Get reliable wash performance and a deep clean without unwanted noise thanks to this super-silent 44 dBA dishwasher

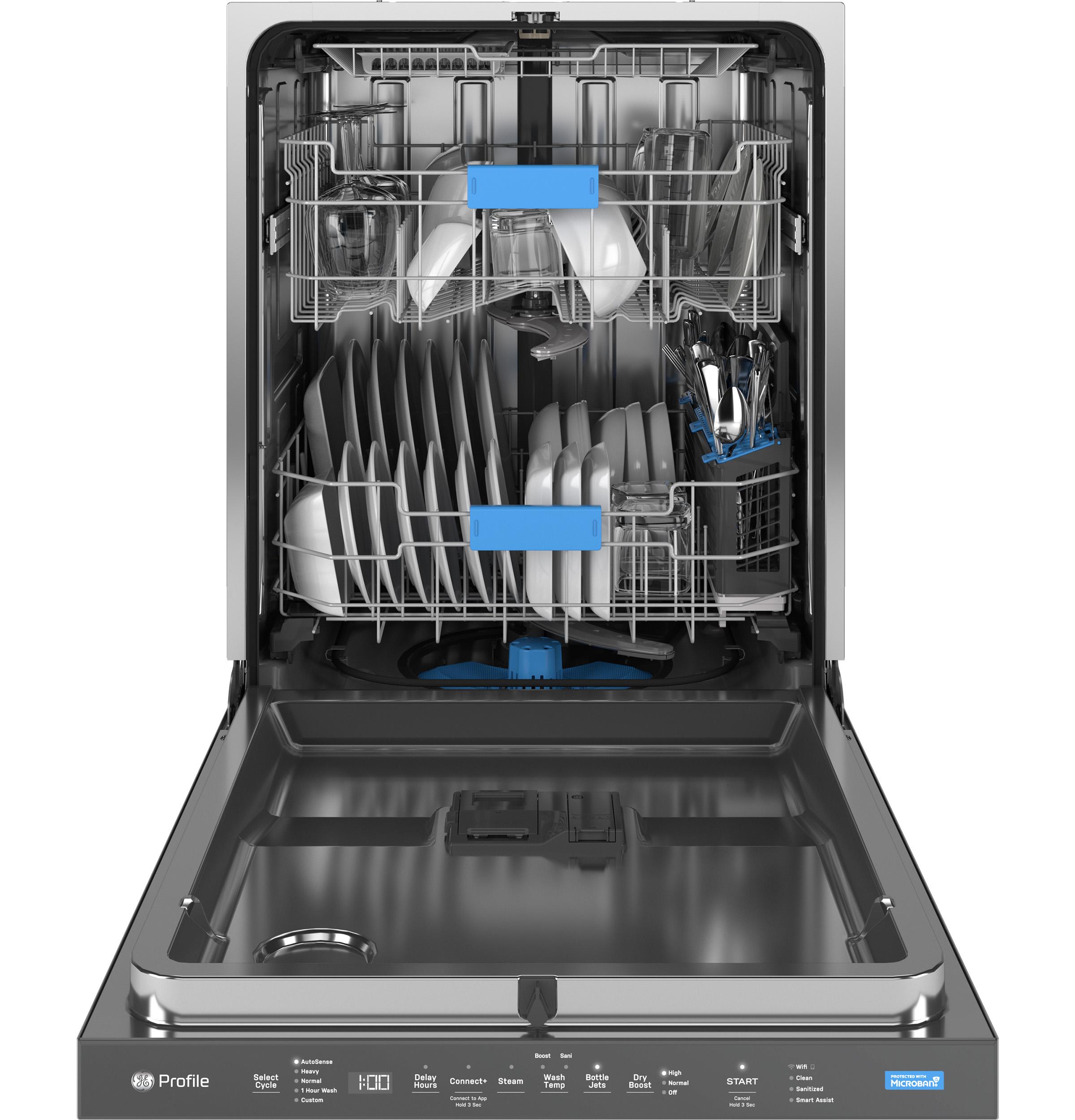

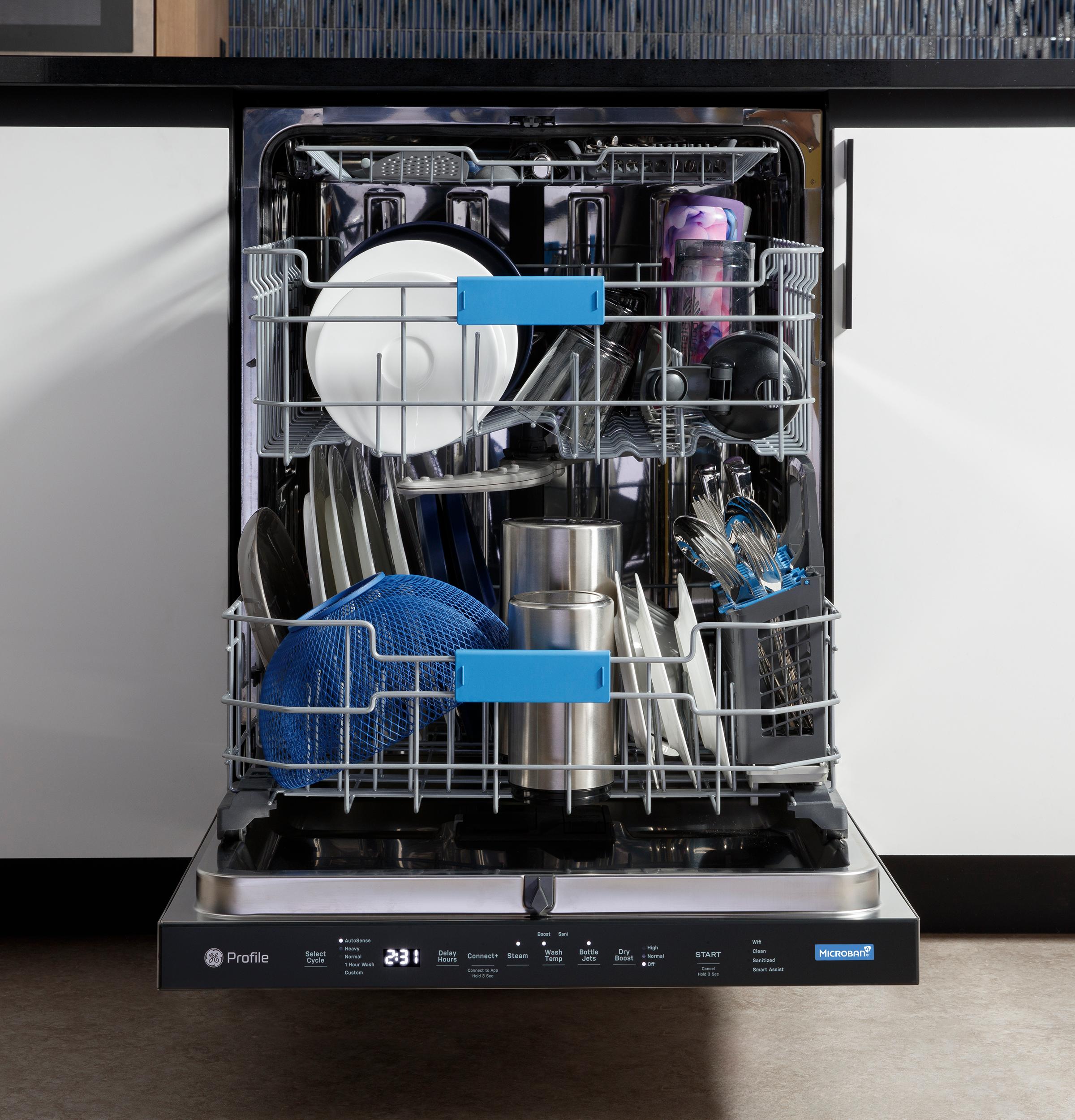

Extra-Large Capacity

Have enough space for 16 place settings and large dishware in this extra-large capacity dishwasher, making cleanup after large gatherings a breeze

Notification Bar

Always know the status of your clean with this notification display dishwasher feature. A bright bar illuminates different colors to indicate the status of the cycle

• Microban(R) Antimicrobial Technology

Enjoy longer-lasting dishwasher protection thanks to Microban(R) Antimicrobial Technology. Built into high-usage touchpoints to help prevent bacteria growth, it keeps protected surfaces 99% cleaner than unprotected surfaces

• Dry Boost(TM)

Dry Boost(TM) technology outperforms standard heated-dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier when compared to heated dry

• Smart Features Powered by SmartHQ(TM)

Built-In WiFi and the SmartHQ(TM) app make it easy to connect, control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features, including customized cycles, remote status notifications and more

• Smart Assist

Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time

• Deep Clean Silverware Jets

A system of deep clean silverware jets blasts the silverware basket from the bottom up, removing all stuck-on foods and providing sparkling results

• Third Rack with Removable Silverware Caddy

The versatile third rack was redesigned to load more than just silverware with additional space for unique items

• Active Flood Protect

To prevent potential overflows, a sensor detects when the water is too high and pumps it out until a safe level is reached

• 4 Bottle Wash Jets

This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the 4 bottle wash jets directs water and detergent inside to effectively wash hard-to-reach areas

• Steam + Sani

Save time with a high-temperature cycle that steams and sanitizes to loosen tough soils before the wash cycle begins, reducing bacteria by 99.999% without pre-rinsing or soaking

• Piranha(TM) Hard Food Disposer

The Piranha(TM) Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design makes sure wash arms stay unclogged

• 44 dBA Dishwasher

Get reliable wash performance and a deep clean without unwanted noise thanks to this super-silent 44 dBA dishwasher

• Extra-Large Capacity

Have enough space for 16 place settings and large dishware in this extra-large capacity dishwasher, making cleanup after large gatherings a breeze

• Notification Bar

Always know the status of your clean with this notification display dishwasher feature. A bright bar illuminates different colors to indicate the status of the cycle

APPEARANCE
Handle	Pocket Handle Treated with Microban™ Antimicrobial Technology
Installation	Built-Up Floor Capable Flush Cabinet Installation Side Installation or Top Installation Included
Handle Color	Fingerprint Resistant Stainless
Door Style	Long Door with Top Controls
Door Appearance	Full-length door
Color Appearance	Fingerprint Resistant Stainless
Control Panel Color	Matte Onyx Black treated with Microban™ Antimicrobial Technology
Handle Design	Recessed
POWER / RATINGS
Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year)	240
Hertz	60
Electrical Requirements	120V ; 60Hz ; 6.6A
Watts	936
Calrod Heater Watts	800/500
Volts/Hertz/Amps	120V; 60Hz; 6.6A
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ECONOMICAL / QUIET
Door Insulation	Insulation Mastic
Quiet Package	44 dBA
Outer Wrap	Bitumen Full-wrap Blanket
Motor Type	Variable Speed
Quiet Features	Quiet Water Valve Sealed Toe Kick Tub Collar Trim
ACCESSORIES
Optional 12' Drain Hose	Optional hose kit (WD24X10065)
WEIGHTS & DIMENSIONS
Height w/ Legs Retracted - Minimum Height	33.375 in
Cutout Height (in)	33.5
Cutout Width (in)	24
Overall Depth	24 in
Cabinet Width	24 in
Net Weight	105 lb
Overall Width	23.75 in
Depth Without Handle	24 in
Approximate Shipping Weight	118 lb
Overall Height	34 in
Overall Depth with Handle	24 in
Cutout Depth (in)	24
Height w/Legs Extended - Maximum Height	34.625 in
Depth with Door Open	27.5 in
FEATURES
Wash System	3-Level 700 Series
Sensor	Clean Sensor
Lower Rack	1 Blue rack handle treated with Microban™ Antimicrobial Technology Ball-Tip Tines
Tub Type	Tall Tub
Leveling System	4 Leveling Legs
OU Certified	No
Additional Protection	Active Flood Protect
Number of Place Settings	16
Dishwasher Options	Bottle Jets Child Lock (on app) Connect+ (assignable on app) Delay Start 1-12 Hr. Dry Boost™ (High) Dry Boost™ (Normal) Dry Boost™ (Off) FilterFresh (on app) Sabbath Mode Sani (Certified to NSF Standard 184) Start/Cancel Steam PreWash Wash TempBoost Wash Zones/Half Load (on app)
Latch	Pull with Handle
Number of Options	14
Style	Built-In Top Control
Water Filtration System	100% Filtration with Piranha Hard Food Disposer and Removable Filter Blue filters treated with Microban™ Antimicrobial Technology
Cutlery Tray	One piece removable 3rd rack
Rack Features	1 Piece Silverware Basket with 3 Cell Covers Adjustable Upper Rack Ball-Tipped Tines Blue cell covers treated with Microban™ Antimicrobial Technology Fold-Down Tines - Lower
Racking Material	Nylon
Smart Assist	Yes
Dishwasher Cycles	1 Hour Wash AutoSense Cascade Platinum Plus (on app) Custom (assigned to Rinse - reassignable on app) Heavy Wash Normal Wash
OdorBlock Capabilities	Microban + FilterFresh
Rack Color	Silver
Dispenser	Rinse Aid with Indicator and Adjustment
WiFi Connect	Built-In

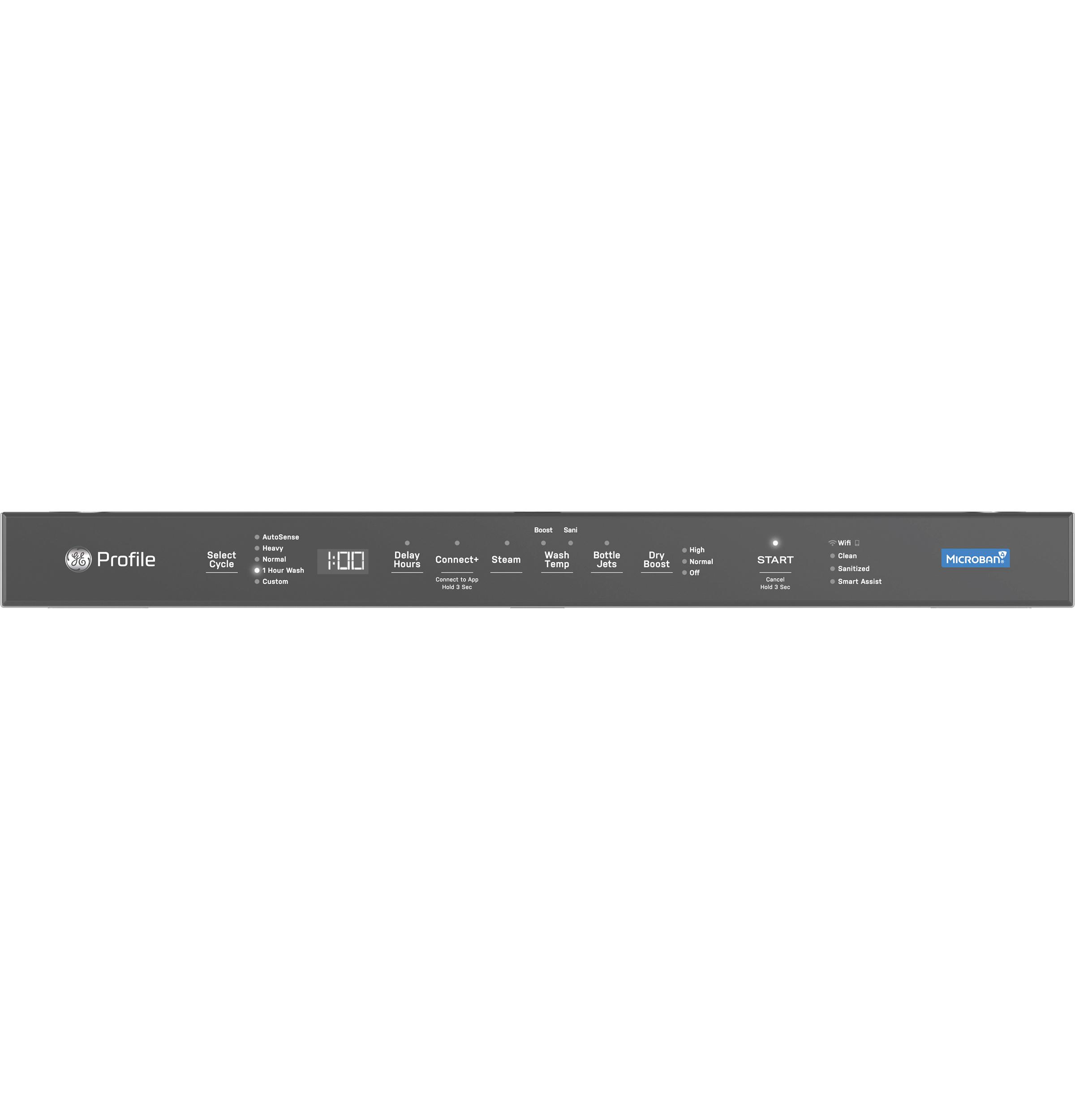

Control Type	8 Touchpads Fingerprint Resistant Cap Touch Controls Top Controls
Racking System	Full 3rd rack
Dishwasher Drying Features	Dry Boost™ Multi-Wattage Wash & Dry Element Normal, High, Off
Wash Arms	3 Wash Levels Bottle Jets Deep Clean Silverware Jets Lower Middle Upper
Wash System Features	90+ Spray Jet Wash System Automatic HotStart Automatic Temperature Control Bottle Jets (4) Deep Clean Silverware Jets Drain Pump Piranha™ Hard Food Disposer with removable filter Variable Speed Dual Pumps and Motors
Top Rack/3rd Rack	3rd Rack + Caddy
Exterior Style	Traditional
Product Type	Built-In
Connected Capabilities	Amazon Alexa Google Home

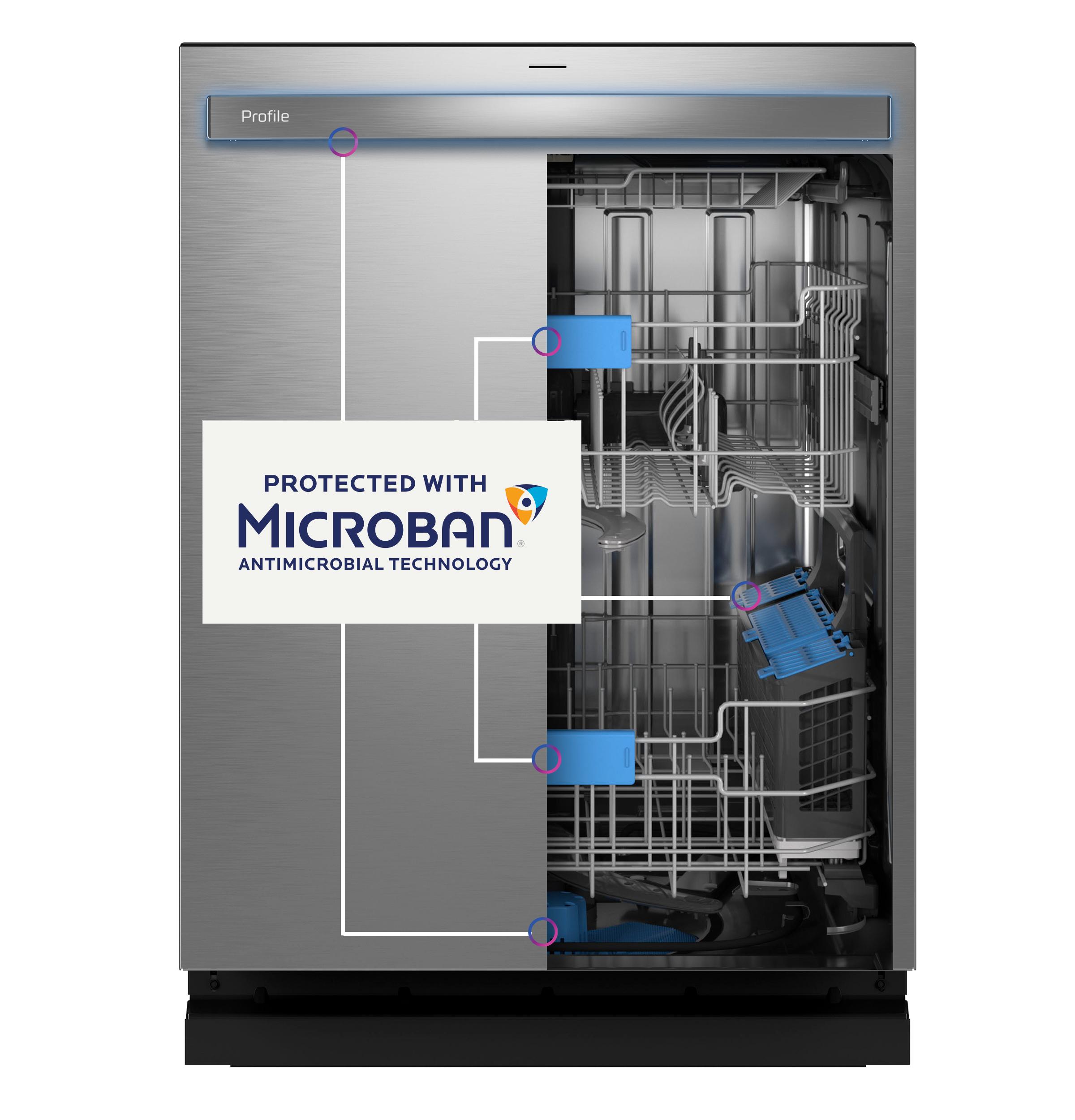

Microban™ Antimicrobial Treated Surfaces	Yes - Exterior Handle, Control Panel, Interior Rack Handles, Silverware Basket Cell Covers, Fine & Ultra Fine Filters
Upper Rack	1 Blue rack handle treated with Microban™ Antimicrobial Technology Ball-Tip Tines Smooth Glide Upper Rack
Dishwasher Control Features	3 Digit Display Cycle Countdown with Notification Bar on door Audible End-of-Cycle Signal Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled Last Cycle Memory White LEDs
Number of Cycles	6
Tub and Door Liner	Stainless Steel
Sabbath Mode	Optional
Showroom Power Mode	Yes
