- Klipsch Optimize Mode

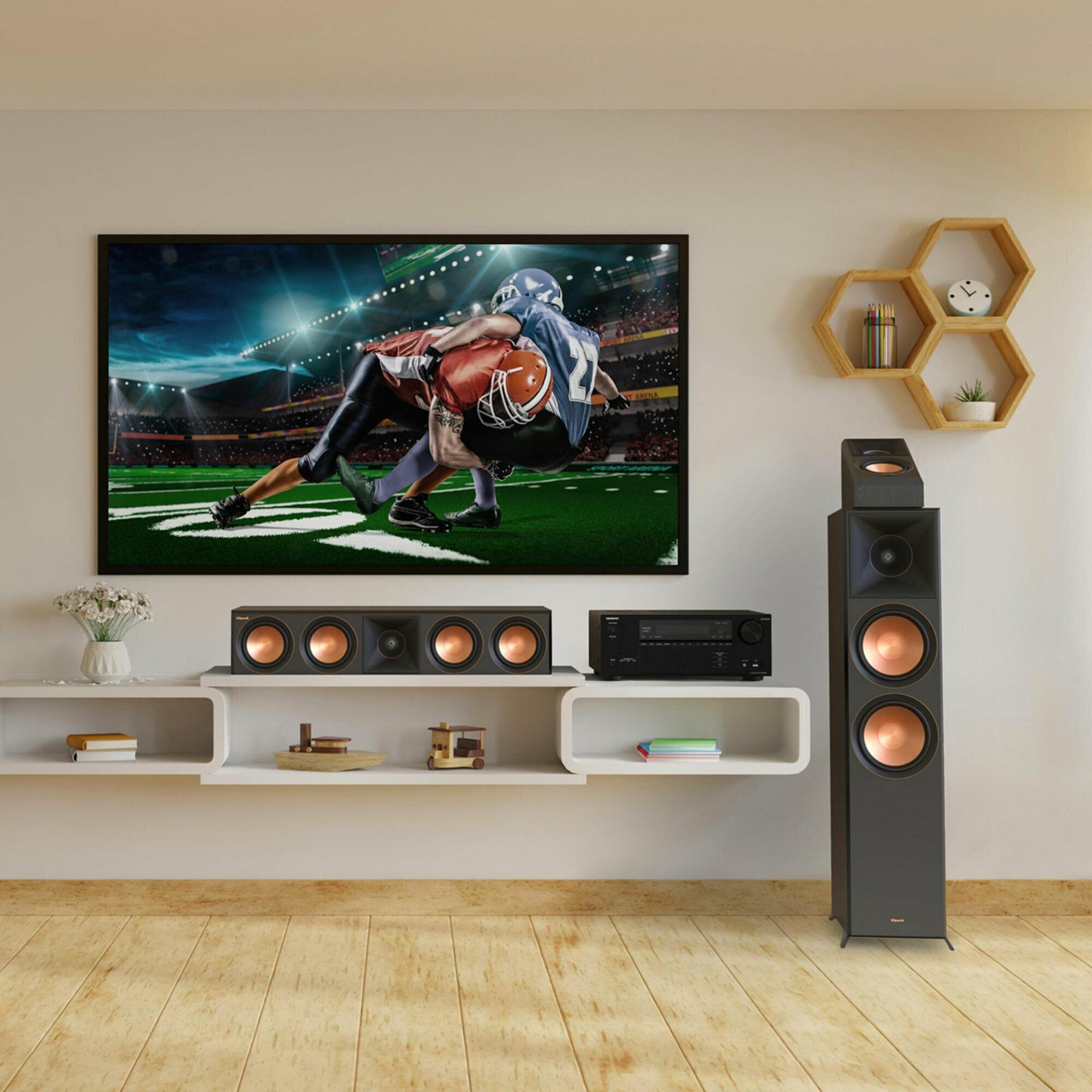

- Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied. SHOP KLIPSCH
- THX Certified
- Discrete Zone 2 HDMI Switching
- Set up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.* *8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used.
- Ultimate 4K Gaming Experience
- Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.
- Built-In Streaming Services
- Access to Spotify (R) , TIDAL, Deezer, TuneIn, and Pandora (R) are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.
| Features | |
| PRODUCT HIGHLIGHTS | |
| 5.2.2-channel Dolby Atmos® and DTS:X playback | |
| AccuReflex phase-matching solution for Atmos-enabled speakers | |
| SMART AV Receiver™ | Works with Sonos, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming services |
| Works with Hey Google or Alexa | Sold separately |
| Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard | |

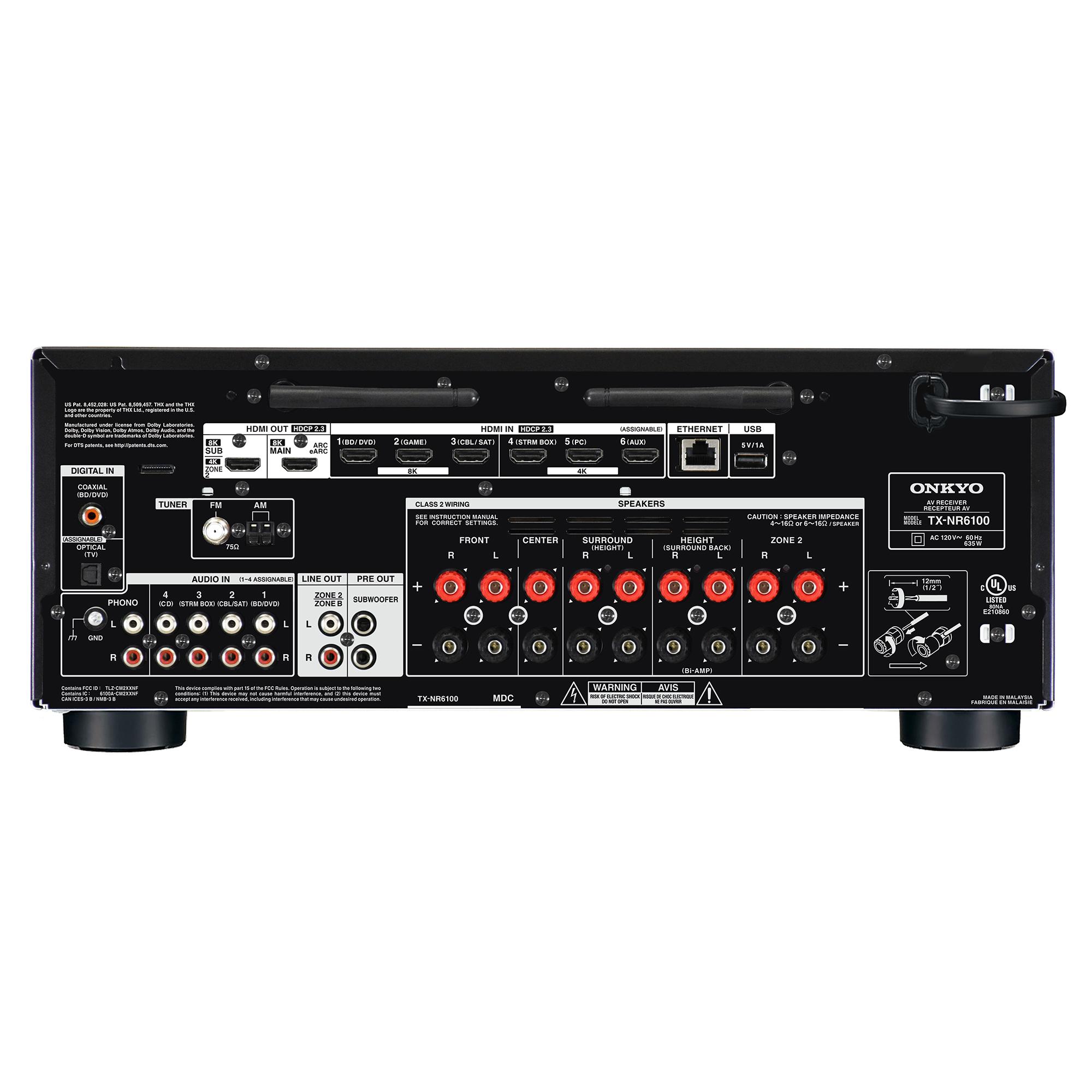

| HDMI® inputs | Inputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support up to 4K/60 and HDMI 2.0 features. |
| HDMI 2.1 | HDMI 2.1 features are supported on HDMI inputs 1-3, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out). |
| HDMI Sub/Zone 2 Out for media transmission to a second display | |
| Send or receive audio via Bluetooth® wireless technology | RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD |
| Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines | |
| 5.2-ch Main + Powered Zone 2 speakers support synced/independent D/A audio playback | |
| Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks | |
| Specs | |
| AMPLIFIER | |
| Power output (All channels) | 100 W/Ch (8 ohms, 20 Hz-20 kHz, 0.08% THD, 2-ch driven, FTC) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz-20 kHz, half power) |
| Input sensitivity and impedance | 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM) |
| Rated RCA output level and impedance | 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out) |
| Frequency response | 10 Hz-100 kHz/+1 dB, -3 dB (Direct/Pure Audio) |
| Tone control | 10 dB, 20 Hz (Bass) 10 dB, 20 kHz (Treble) |
| Signal-to-noise ratio | 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A) |
| Speaker impedance | 4-16 ohms |
| TUNER | |
| FM | 87.5 MHz-107.9 MHz |
| AM | 530 kHz-1,710 kHz |
| FM/AM preset memory | 40 stations |
| GENERAL | |
| Power supply | AC 120 V~, 60 Hz |
| Power consumption (operating) | 635 W |
| Power consumption (idle) | 65 W |
| Power consumption (standby) | 0.1 W |
| Dimensions (W x H x D) | 17 1/8 x 6 13/16 x 14 15/16 (435 x 173.5 x 379.5 mm) |
| Weight | 21.7 lb (9.8 kg) |
| UPC Code | |
| UPC | 889951003489 |
| CARTON | |
| Dimensions (W x H x D) | 21 x 10 7/16 x 18 7/16 (534 x 265 x 468 mm) |
| Weight | 27.7 lbs (12.5 kg) |
| ACCESSORIES INCLUDED | |
| Power cord | Yes |
| Indoor FM antenna | Yes |
| AM loop antenna | Yes |
| Speaker setup microphone | Yes |
| Quick Start Guide | Yes |

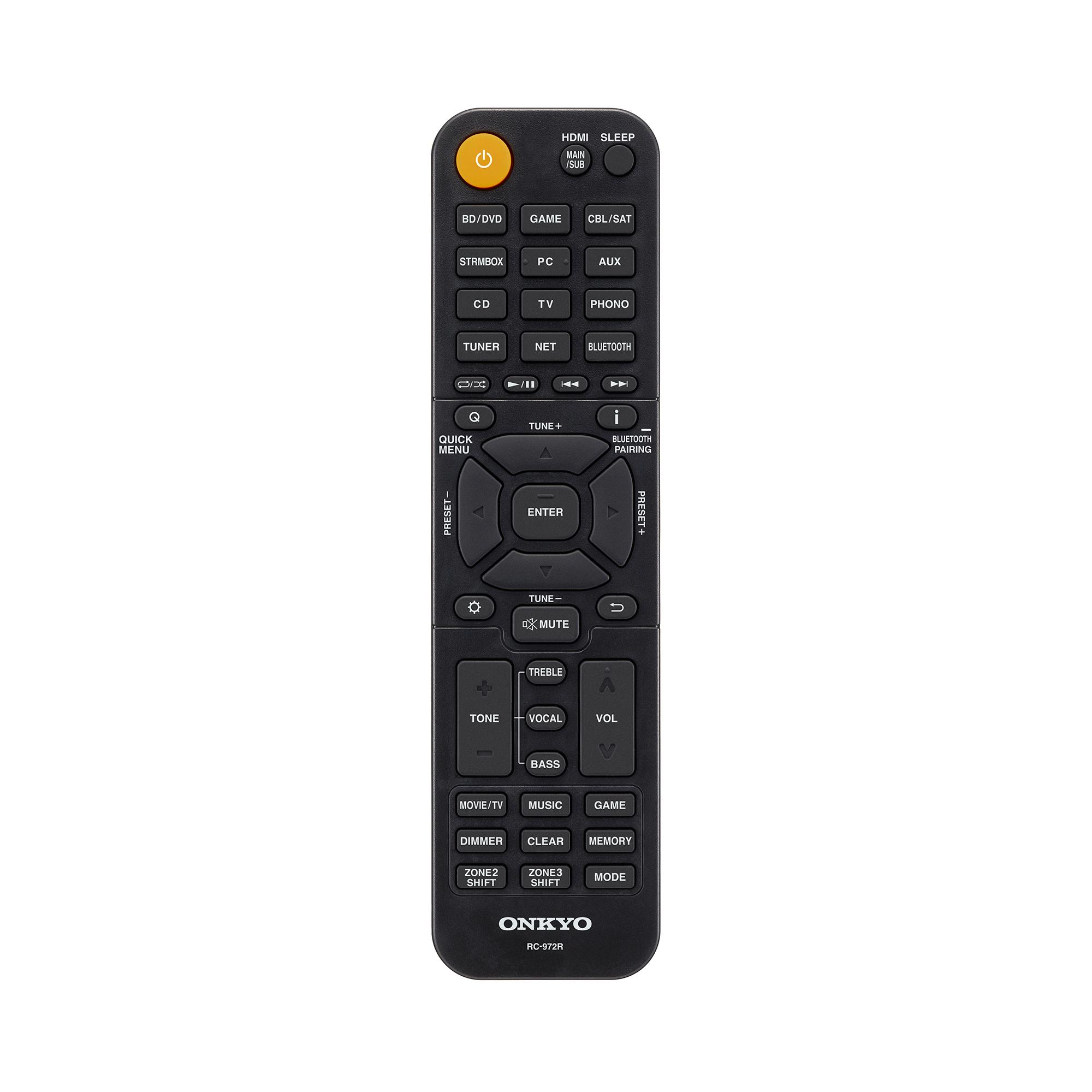

| Remote control | Yes |
| Two AAA (R03) batteries | Yes |
Klipsch Optimize Mode
Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied. SHOP KLIPSCH
THX Certified
Discrete Zone 2 HDMI Switching
Set up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.* *8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used.
Ultimate 4K Gaming Experience
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.
Built-In Streaming Services
Access to Spotify (R) , TIDAL, Deezer, TuneIn, and Pandora (R) are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.
| WiFi Connected | No |
