- 585 CFM Motor Class Ventilation System* *Peak performance varies based on installation. Resources available at aham.org
- helps capture smoke, grease and odors from the cooking surface below for everything from simmering to high temperature cooking techniques like pan searing and stir-frying so you can experiment with confidence.
- 65,000 BTU Threshold
- pairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.

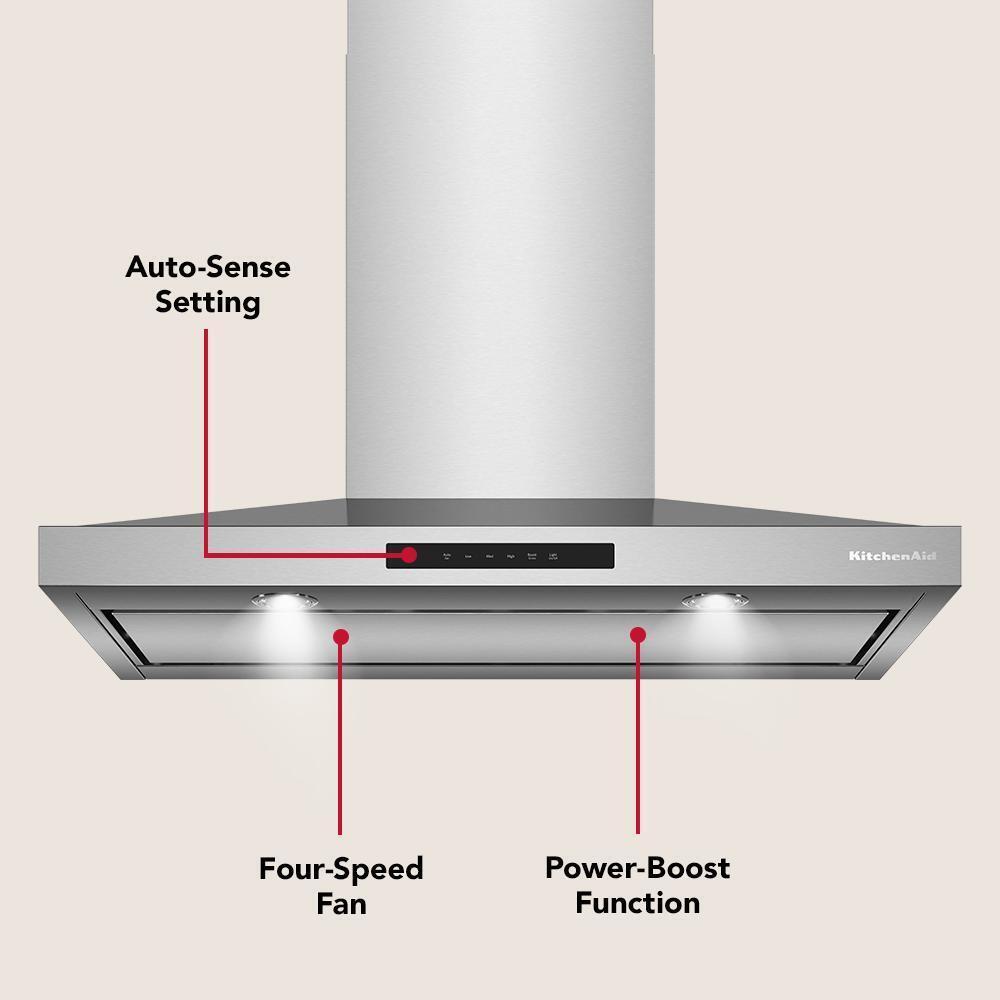

- Auto Sense Setting
- takes the guesswork out of choosing the proper ventilation setting to match your cooking by automatically adjusting the fan's speed depending on the heat being produced.
- Designed to be Personalized
- with a curated palette of exterior finishes. Pick from lush Juniper, warm Black Ore and classic Stainless Steel and blend your KitchenAid(R) appliances into one clean look.
- Four-Speed Fan
- features low, medium, high and power boost settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.

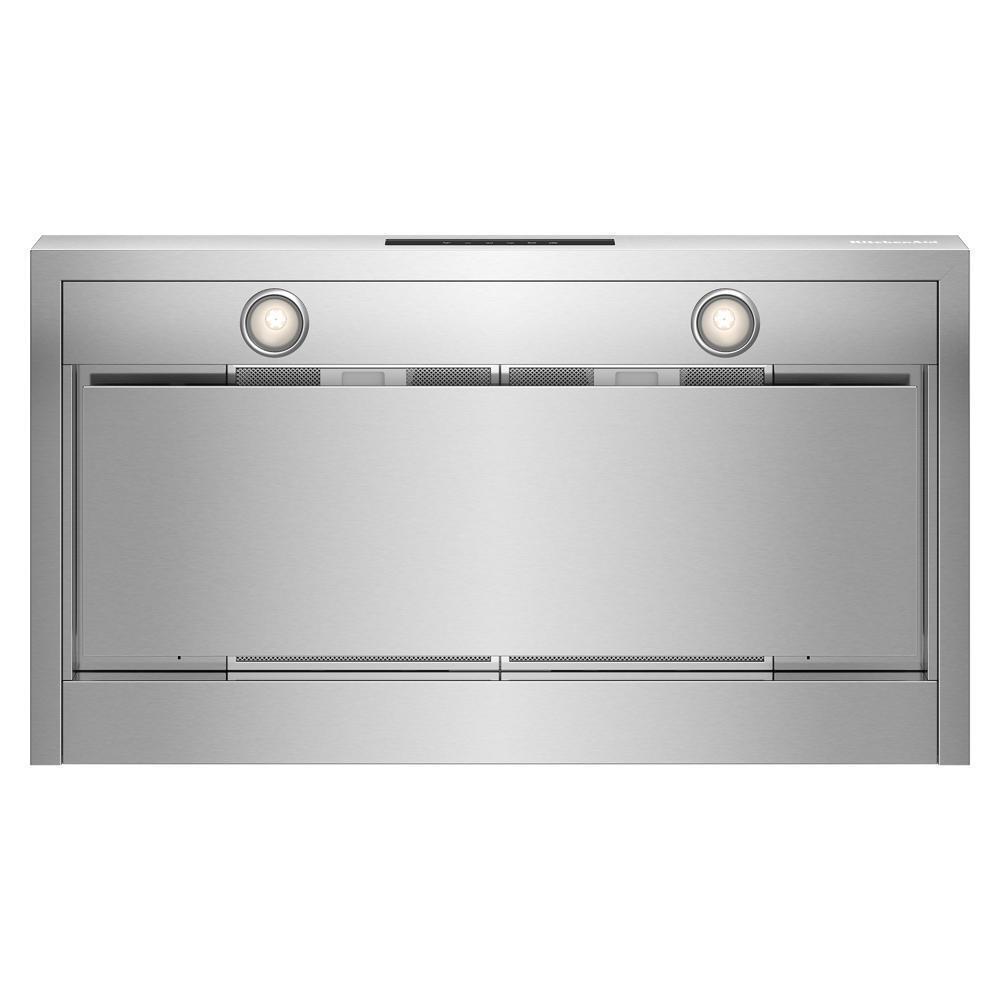

- Perimeter Ventilation
- pulls air from the edges, boosting airflow at the center to help capture more smoke, grease and odors before they escape into the kitchen.
- Power Boost Function
- assists high-heat cooking by activating maximum fan speed for ten minutes to help quickly clear smoke and steam. This function turns on automatically if the hood's sensor detects high-heat cooking on multiple burners and can also be activated manually.
- Removable Mesh Grease Filters
- help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
- Two LED Lights with Night Light Setting
- provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
| Certifications | |
| Ada Compliant | No |
| Cec Listed | Yes |
| Cul | No |
| Prop65 | CA |
| Star K Certified | No |
| Ul | Yes |
| Controls | |
| Control Location | Front |
| Control Type | Glass Touch Digital Display |
| Details | |
| Damper Included | Yes |
| Hood Type | Wall-Mount Canopy |
| Lighting Control Type | Touch Button |
| Material | Stainless Steel |
| Number of Task Light Settings | 2 |
| Number of Vent Speeds | 4 |
| Task Lighting | Yes |

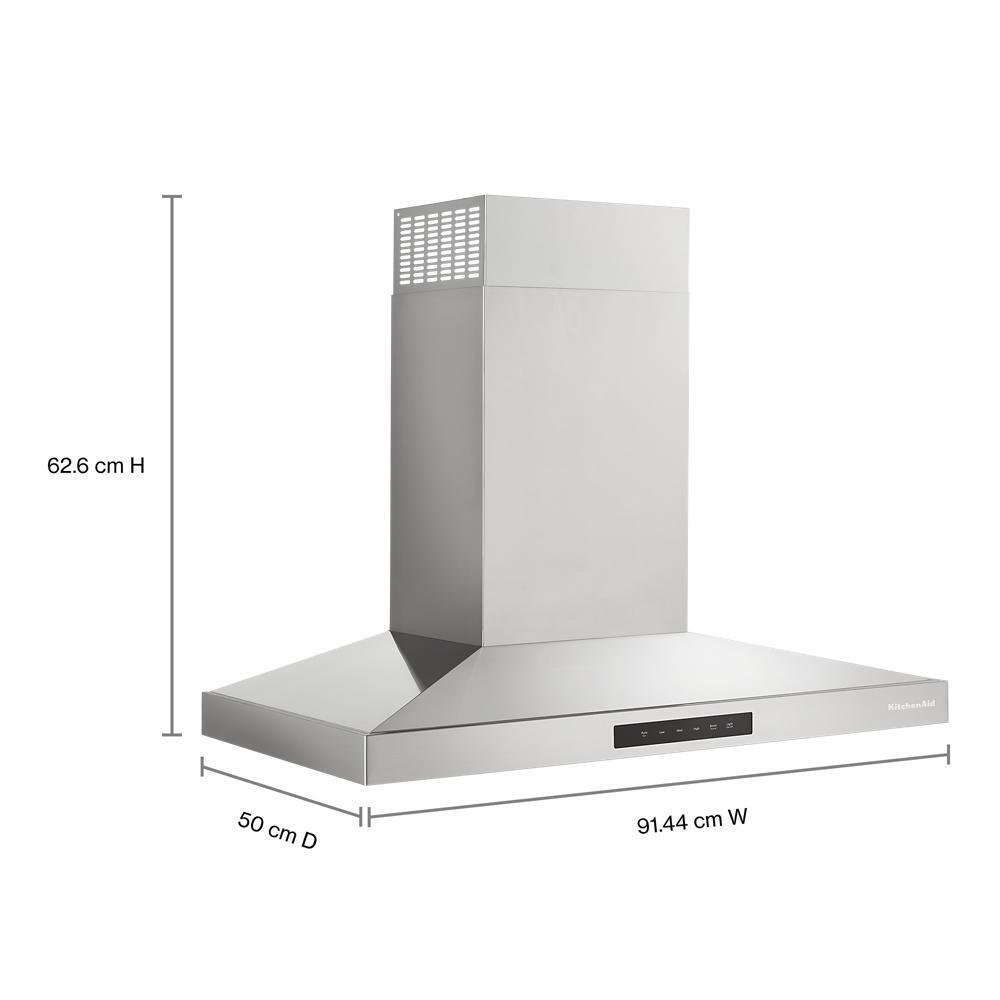

| Dimensions | |
| Product Height | 24.625 |
| Carton Height | 26 |
| Gross Weight | 55 |
| Canopy Height | 5 |
| Carton Depth | 38 |
| Carton Width | 18 |
| Product Depth | 19.6875 |
| Net Weight | 23 |
| Product Width | 36.0 |
| Electrical | |
| Power Cord Included | No |
| General | |
| Compatible Ceiling Height | 7-1/12 to 9-1/16 |
| Energy Star® Qualified | No |
| Personalized Hardware | No |
| Ventilation Details | |
| Auto Function | Auto On and Speed Adjust |
| Auto On | Yes |
| BTU Threshold | 65 K |
| Blower Motor | Blower Motor Included |
| Blower Type | Centrifugal |
| Cfm Motor Class | 585 |
| Duct Direction | Vertical |
| Duct Length | 35 |
| Duct Outlet Size | 6 |
| Duct Type | Round |
| Exhaust Vent Location | Top |
| Filters | Grease Filters |
| Maximum Motor Cfm | 585 |
| Minimum Motor Cfm | 100 |
| Night Light | No |
| Sound Max Speed | 7 |
| Sound Min Speed (sones) | 2 |
| Task Light Type | LED |
| Vent Fan Location | Front |
| Vent Material | Plastic |
| Venting | Vented or Convertible to Recirculating |
Products specifications
| Color | STAINLESS STEEL |
| WiFi Connected | No |
| Width | 36 |
| Height | 5, 24.62 |
| Depth | 19.69 |
