Product Recommendations
3-Camera Input
Enable users to add a reverse (rear facing) camera and an additional 2 front or blind-spot cameras, further enhancing driver safety and convenience.
Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Sound Response
Cancels time distortion to create clearer sound during the playback of compressed audio files.
Space Enhancement
Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the receiver automatically adjusts the sound effectively.
Sound Lift
Virtually manipulate the height of the speakers by adjusting the sound frequencies.
Volume Link EQ
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
SiriusXM Ready (optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
iDatalink Maestro - Advanced Vehicle Integration
iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).
- 3-Camera Input
- Enable users to add a reverse (rear facing) camera and an additional 2 front or blind-spot cameras, further enhancing driver safety and convenience.
- Gesture Touch Control
- Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.
- Time Alignment
- By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
- Sound Response
- Cancels time distortion to create clearer sound during the playback of compressed audio files.
- Space Enhancement
- Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the receiver automatically adjusts the sound effectively.
- Sound Lift
- Virtually manipulate the height of the speakers by adjusting the sound frequencies.
- Volume Link EQ
- Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
- 13-Band Equalizer
- Use the 13-Band Equalizer to manually adjust the sound to your taste.
- Streaming Music
- Listen to popular music applications and music stored on your device with basic audio controls.
- SiriusXM Ready (optional SiriusXM tuner required, sold separately)
- Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
- iDatalink Maestro - Advanced Vehicle Integration
- iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).
| Technical Specifications | |
| Monitor | |
| Screen Size | 6.8"W VGA Screen |
| Touch Panel | Capacitive |
| Gesture Touch Control | Yes |
| Key Illumination Color | Variable |
| Dimmer | Yes |
| Multilingual Display | Yes[4] |
| Media Playback | |
| MP3 Compatible with Tag | USB |
| WMA Compatible with Tag | USB |
| WAV Compatible with Tag | USB |
| AAC Compatible with Tag | USB |
| FLAC Compatible with Tag | USB |
| H.264 Compatible | USB |
| WMV Compatible | USB |
| MPEG 1/2 Compatible | USB |
| MPEG 4 Compatible | USB |
| MKV Compatible | USB |
| Bluetooth Control | |
| Built-in Bluetooth[1] | Yes (Wired-Mic included) |
| Hands Free Call | Yes (HFP1.8) |
| 2 Phones Full-Time Connection | Yes |
| Audio Streaming & Control (A2DP, AVRCP) | Yes |
| Supported Audio Formats | AAC / SBC |
| 5 BT-Audio Connection | Yes |
| Voice Dialing (voice recognition compatible mobile phone required) | Yes |
| Phone Book Access Profile (PBAP) | Yes |
| Alphabetical Search for Phone Book | Yes |
| Wi-Fi Control | |
| Built-in Wi-Fi | Yes |
| Android Control | |

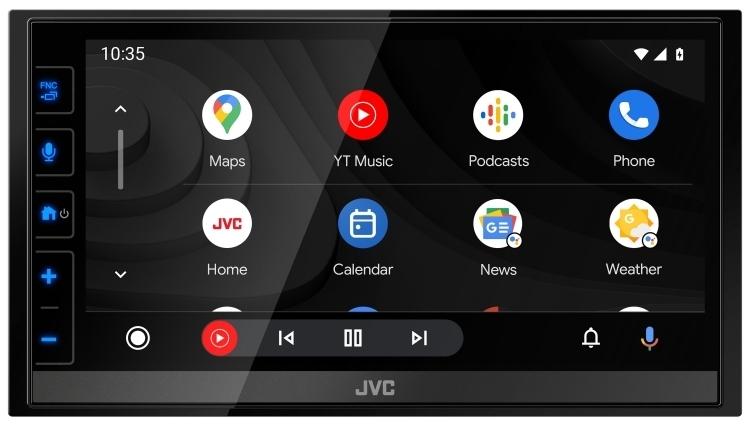

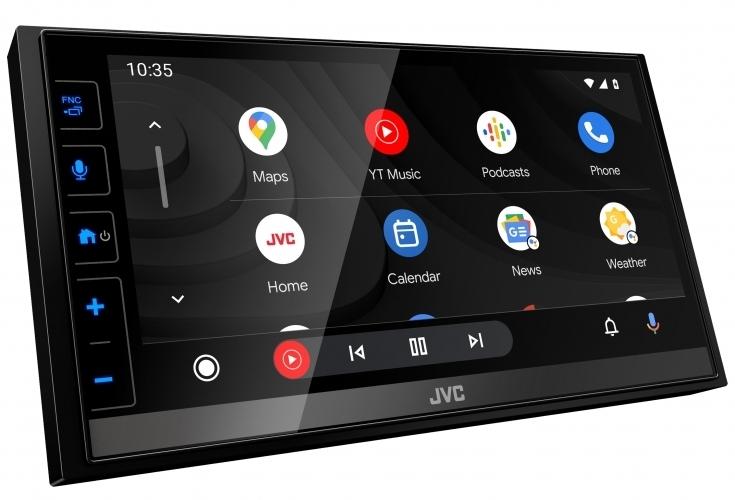

| Android Auto[2] | Yes (via Wi-Fi or USB) |
| Mirroring for Android | Yes (via USB) *Need mirroring App |
| iPod/iPhone Control | |

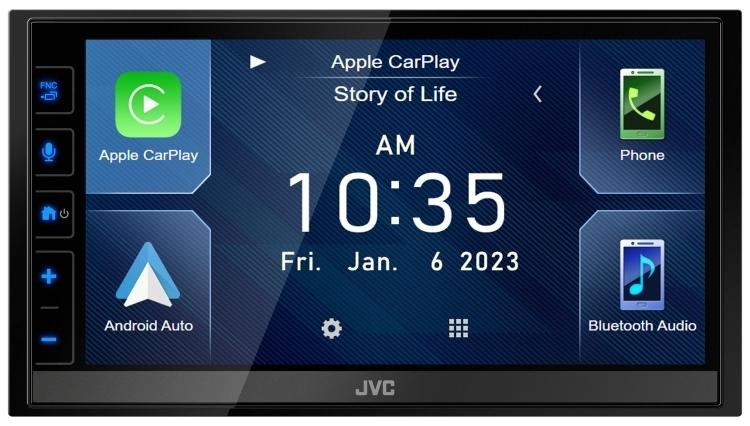

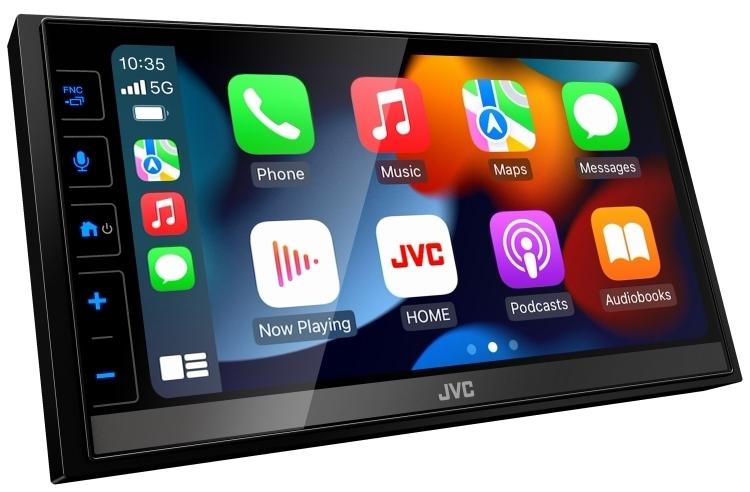

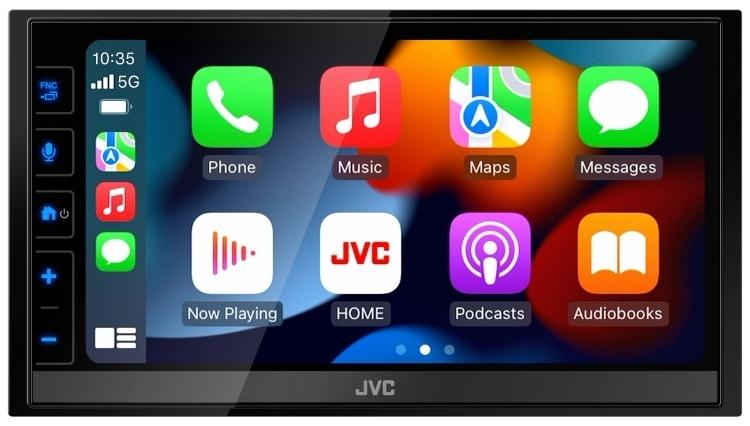

| CarPlay[3] | Yes (via Wi-Fi or USB) |
| USB | |
| USB Port | x 1 (High speed) |
| Position | Rear |
| USB Power Supply | Yes (1.5A High Current Charging) |
| Radio Tuner | |
| SiriusXM Ready | Yes |
| Radio Broadcast Data System (RBDS) | Yes |
| Preset Stations | 20(FM:15ch, AM:5ch) |
| Frequency Range | 87.9 - 107.9MHz |
| Frequency Range | 530-1,700kHz |
| Audio | |
| Maximum Power Output (Front & Rear) | 50Wx4 |
| Full Bandwidth Power (Front & Rear) | 22W x 4 (Full Bandwidth Power, at less than 1% THD) |
| EQ | Yes (13-Band Graphic EQ) |
| Preset EQ | Yes (8Preset + 4user) |
| Bass Boost | Yes |
| High-Pass Filter/Low-Pass Filter | Yes/Yes |
| 3-Way X'over | Yes |
| Digital Track Expander | Yes |
| Space Enhancement | Yes |
| Sound Response | Yes |
| Sound Lift | Yes |
| Volume Link EQ | Yes |
| Time Alignment | Yes |

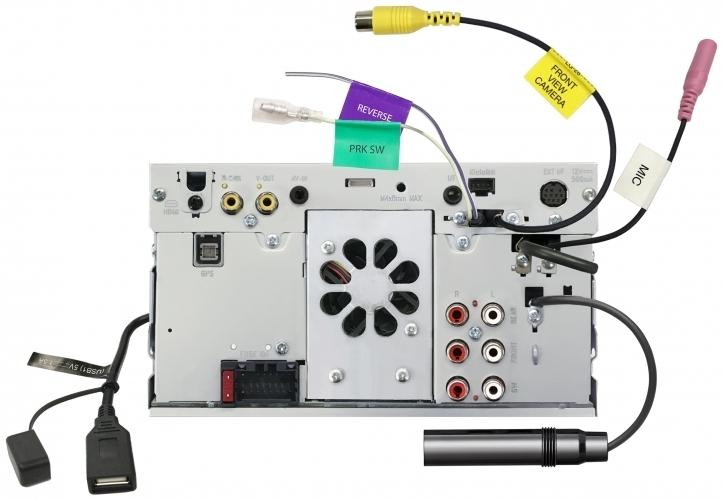

| Inputs and Outputs | |
| AV Input | mini jack (AV-IN or Camera-IN switchable) x 1 |
| Video Out | RCA x 1 |
| HDMI Terminal | Yes |
| Rear view camera Input | Yes |
| Front view camera Input | Yes |
| Line Output Terminals | 3 Pairs (Front + Rear + Subwoofer) |
| Pre-output Level/Impedance | 4.0V / 10k ohms |
| General | |
| iDatalink Maestro Ready | Yes |
| Viewing Angle Adjustment | Yes (0 - 20 degree, default : 0 degree) |
| Short Chassis | Yes (2-15/16inch, 75mm) |
| Wireless Remote Control | Ready (RM-RK258 required) |
| Steering Remote Control Ready | Yes |
| Installation Size | 7-1/16" x 3-15/16" x 2-15/16" (180 x 100 x 75 mm) |
| Weight | 2.7 lbs. (1.2kg) Including Sleeve and Trim plate |
| Unit weight in individual package | 4.2 lbs. (1.9kg) |

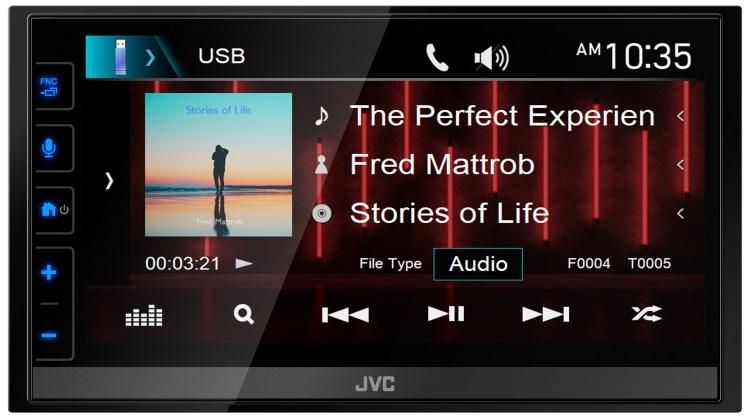

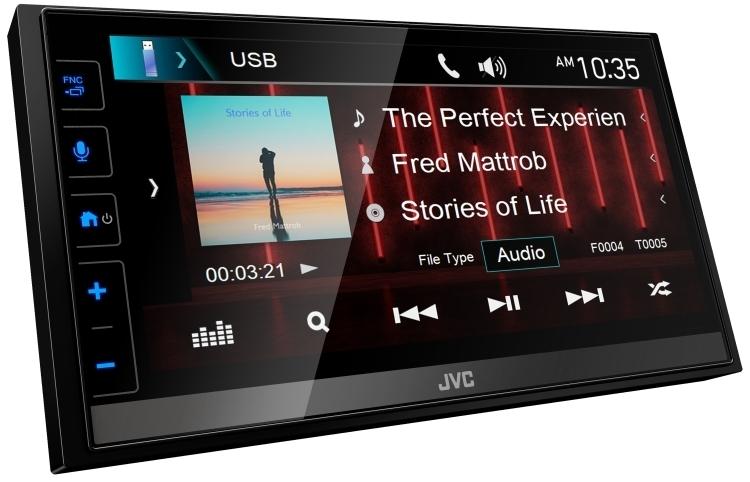

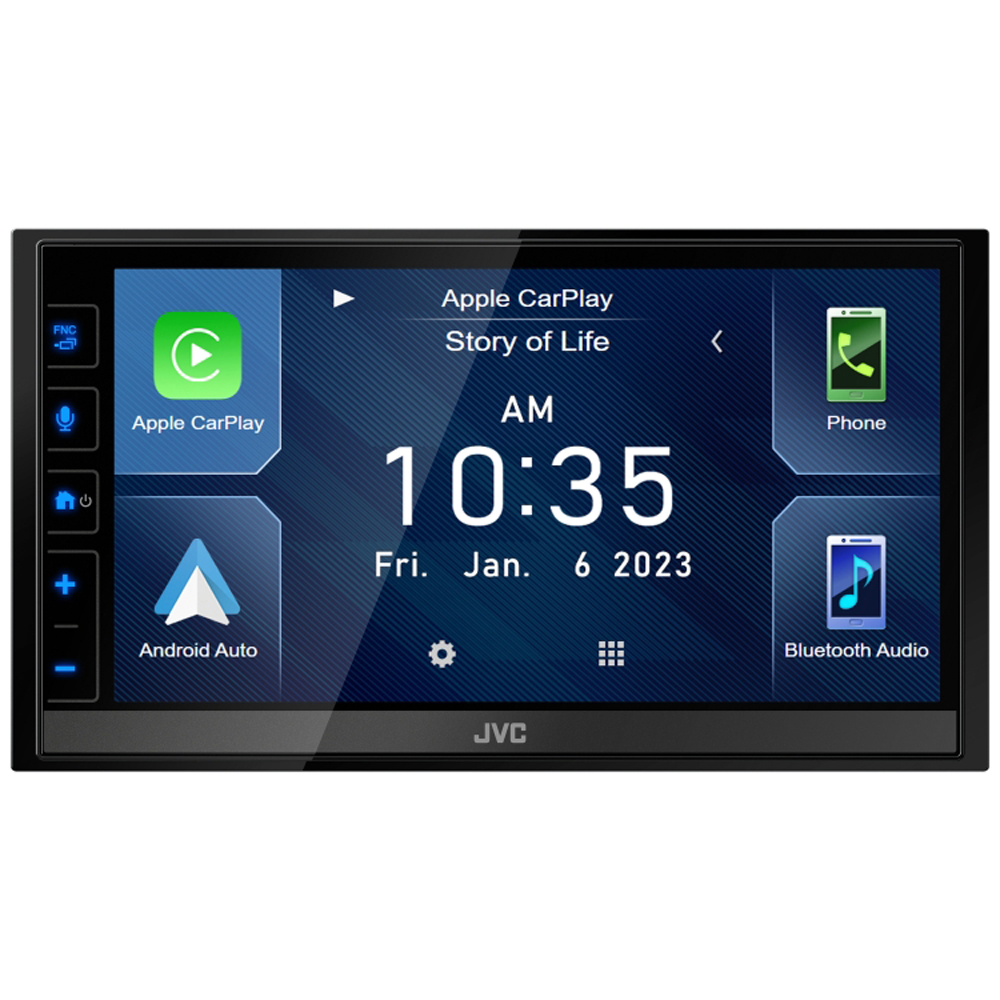

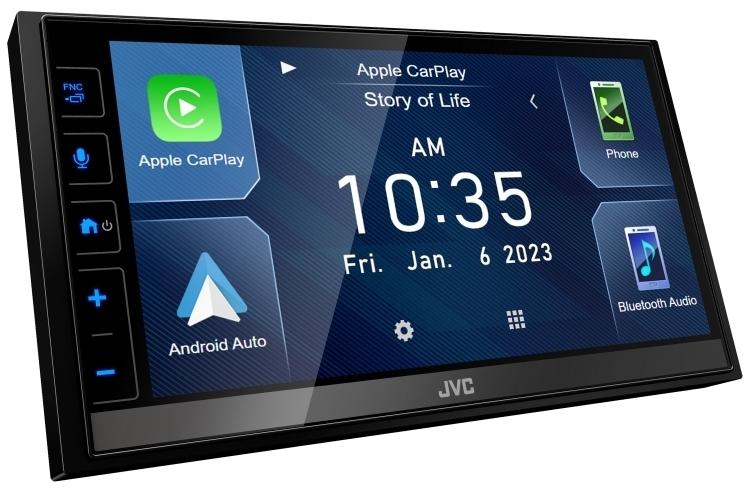

Digital Media Receiver featuring 6.8-inch Capacitive Touch Control Monitor <6.8" WVGA> / Wireless Apple CarPlay / Wireless Android Auto / USB Mirroring for Android Phones / iDatalink Maestro Ready / HDMI Input / Bluetooth
Products specifications
| WiFi Connected | No |
