Adjustable 610 CFM range hood blower
High powered 610 CFM blower is adjustable downward to either 380 or 290 maximum CFM to accommodate different installation needs
Four-speed fan control
Helps draw smoke, grease, odors and moisture out of the kitchen air

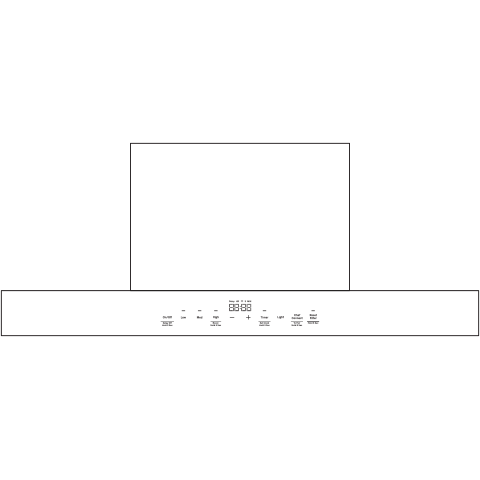

LED backlit glass touch control
Attractive controls are easy to read and instantly wipe clean
Perimeter venting
Provides a clean, modern design that makes a statement of style in any kitchen.
WiFi powered by SmartHQ
Control appliances with a smart device or just the sound of your voice
Duct cover included

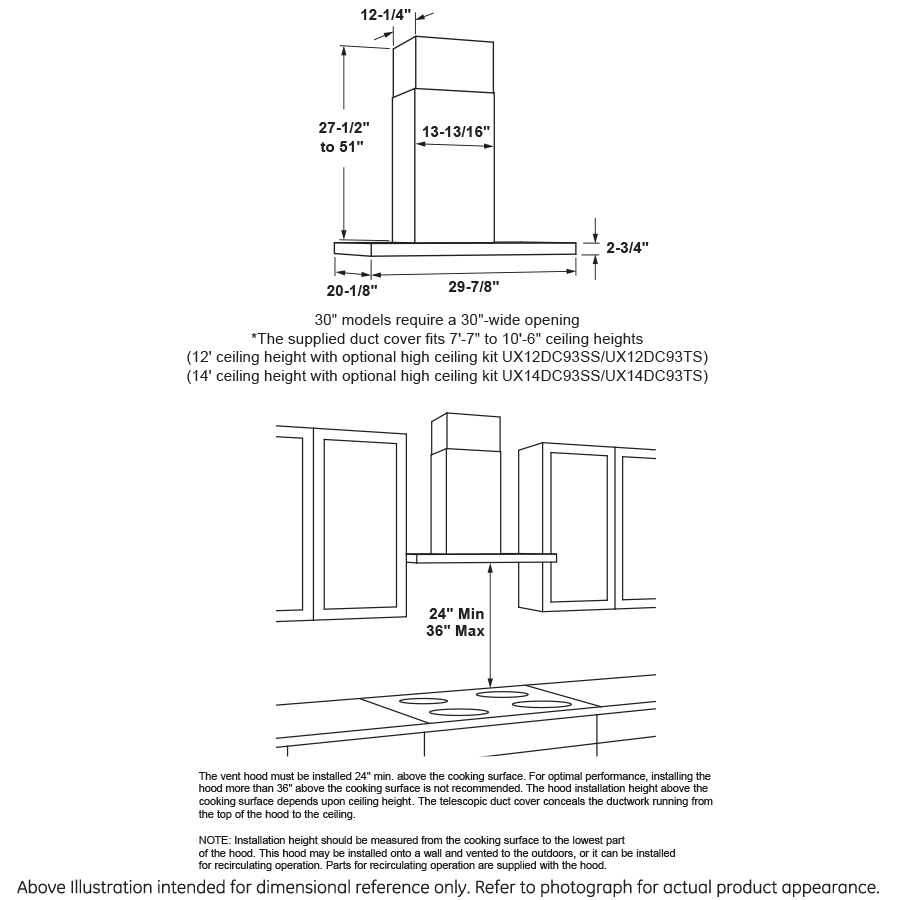

Included duct cover reaches up to 10' ceilings and works with optional accessories to reach up to 14' ceilings

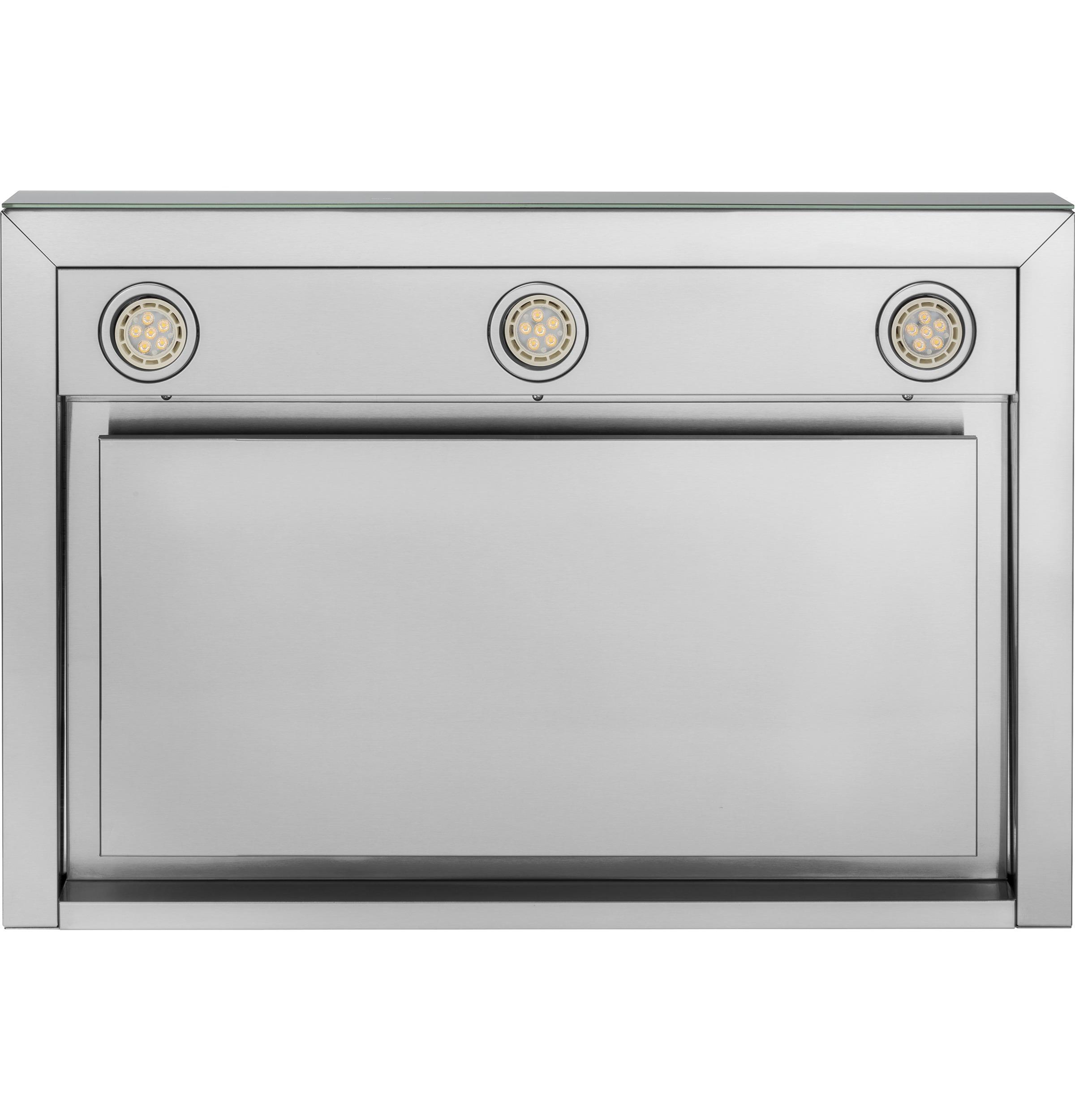

Triple LED dimmable lighting
Bulbs included - LED modules ensure bright lighting for the entire cooking environment
Convertible venting options
Select recirculating or external venting
- Adjustable 610 CFM range hood blower
- High powered 610 CFM blower is adjustable downward to either 380 or 290 maximum CFM to accommodate different installation needs
- Four-speed fan control
- Helps draw smoke, grease, odors and moisture out of the kitchen air
- LED backlit glass touch control
- Attractive controls are easy to read and instantly wipe clean
- Perimeter venting
- Provides a clean, modern design that makes a statement of style in any kitchen.
- WiFi powered by SmartHQ
- Control appliances with a smart device or just the sound of your voice
- Duct cover included
- Included duct cover reaches up to 10' ceilings and works with optional accessories to reach up to 14' ceilings
- Triple LED dimmable lighting
- Bulbs included - LED modules ensure bright lighting for the entire cooking environment
- Convertible venting options
- Select recirculating or external venting
| FILTER | |
| App Filter-Multi Brand | Cafe GE Monogram |
| App Filter - Hood Type | Designer (includes "canopy" and "chimney") |
| App Filter - Venting Type | Convertible |
| App Filter - Cabinet Width | Vent 30 in. (Standard) |
| APPEARANCE | |
| Blower / Light Switch Color | Backlit |
| Material | Steel |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Watts | 332 |
| Hertz | 60 |
| Electrical Requirements | 120V ; 60Hz ; 5.3A |
| Amp Rating at 120V | 5.3 |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| ECONOMICAL / QUIET | |
| Venting Type | Convertible |
| ACCESSORIES | |
| Optional Accessories | JXHC1 - Power Cord Kit UX12DC9SLSS - 12' High Ceiling Duct Cover Kit UX14DC9SLSS - 14' High Ceiling Duct Cover Kit UXRC70 - Remote Control |
| WEIGHTS & DIMENSIONS | |
| Cabinet Width | 30 in |
| Net Weight | 70 lb |
| Overall Depth | 20 in |
| Approximate Shipping Weight | 80 lb |
| Overall Height | 24 in |
| Overall Width | 30 in |
| FEATURES | |
| WiFi Connect | Built-In |
| Cooktop Lighting | 3 LED |
| Fan Speed Control | 4-Speed |
| Max CFM | 450 |
| Required Duct Size | 8 in. Round |
| Ducting | Vertical Only |
| Light Controls | On/Off/Night |
| Filter Cleaning | Dishwasher Safe |
| CFM/ Sones Rating | 450/8.0 (Boost Speed) - Vertical venting |
| Time Delay Shut-Off | Yes |
| Exhaust Options | Recirculating Vented to Outside |
| 8" Round Duct | Yes |
| Product Type | Designer Hood |
| Control Features | Timer/Clock |
| Control Type | Electronic Touch |
| Connected Capabilities | Amazon Alexa Google Home |
| Removable Filter | Grease & Charcoal included |
| Control Location | Front |
| Charcoal Filter | UXCF91 |
High powered 610 CFM blower is adjustable downward to either 380 or 290 maximum CFM to accommodate different installation needs
Four-speed fan control
Helps draw smoke, grease, odors and moisture out of the kitchen air
LED backlit glass touch control
Attractive controls are easy to read and instantly wipe clean
Perimeter venting
Provides a clean, modern design that makes a statement of style in any kitchen.
WiFi powered by SmartHQ
Control appliances with a smart device or just the sound of your voice
10-ft. ceiling height
Included duct cover extensions reach up to 10' ceilings and work with optional accessories to reach up to 14' ceilings
Triple LED dimmable lighting
bulbs included - LED modules ensure bright lighting for the entire cooking environment
Convertible venting options
Select recirculating or external venting

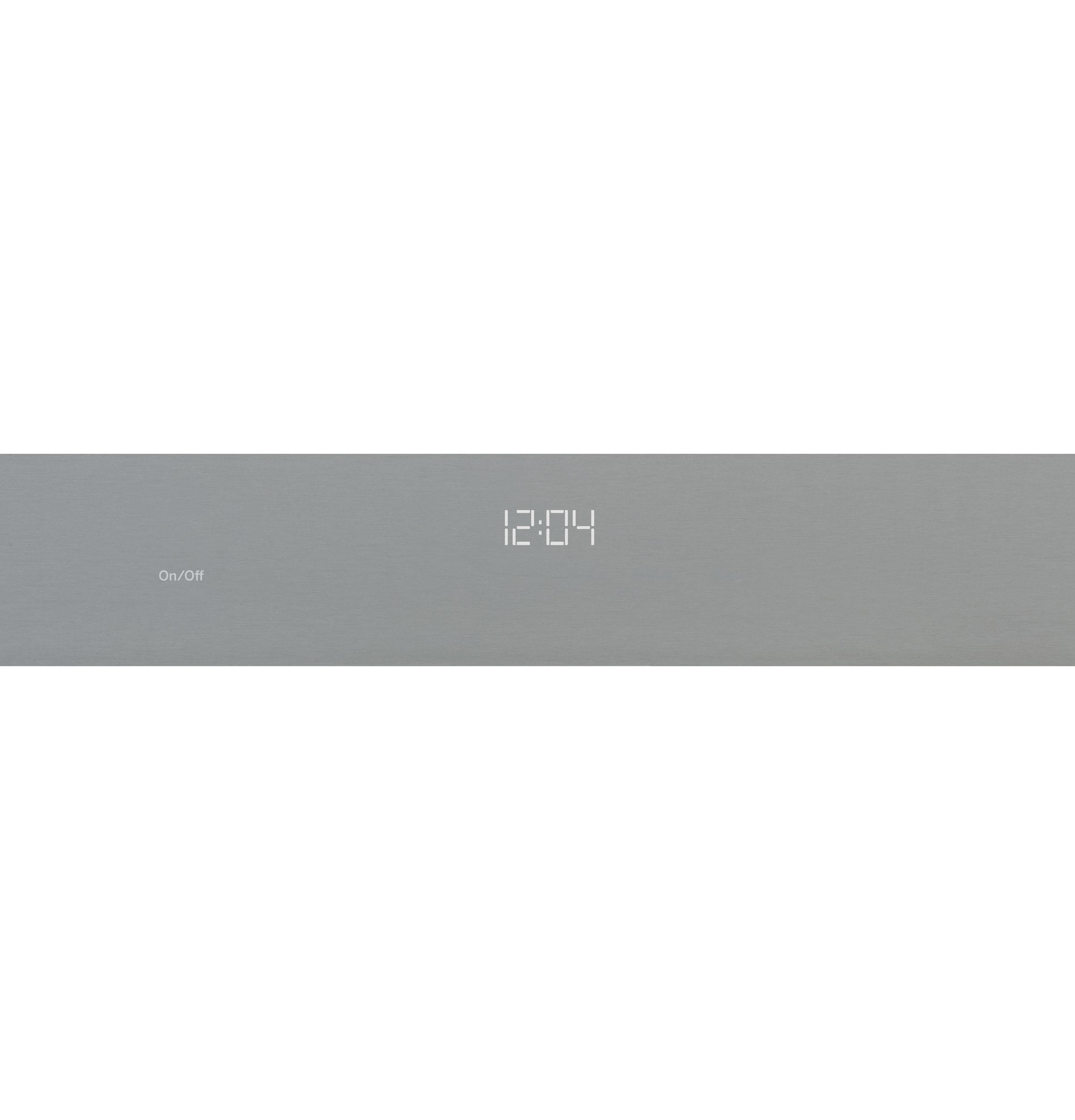

Timer and clock
Enjoy the convenience of a bright display at the ideal height
Chef Connect
Automatically control the hood's lights and fan by syncing with the range
Products specifications
| CFM | 200 - 499, 500 - 999 |
| TYPE | Wall Mount |
| VENT | Ducted |
| WiFi Connected | Yes, No |
| ADA COMPLIANT | No |
| BLUETOOTH | No |
| Width | 30.00, 34.00 |
| Color | STAINLESS STEEL |
| Height | 29.00 |
| Depth | 23.00 |
