PowerPlus(R) Burner
This powerful 18,000-BTU PowerPlus(R) Burner delivers rapid heat for quick boils, while EvenTemp(TM) technology helps keep heat evenly distributed for consistent results - ideal for everyday cooking.
Five Burner Cooktop
From a 5,000-BTU simmer burner to our 18,000-BTU PowerPlus(R) Burner, this five-burner cooktop satisfies your cooking needs.

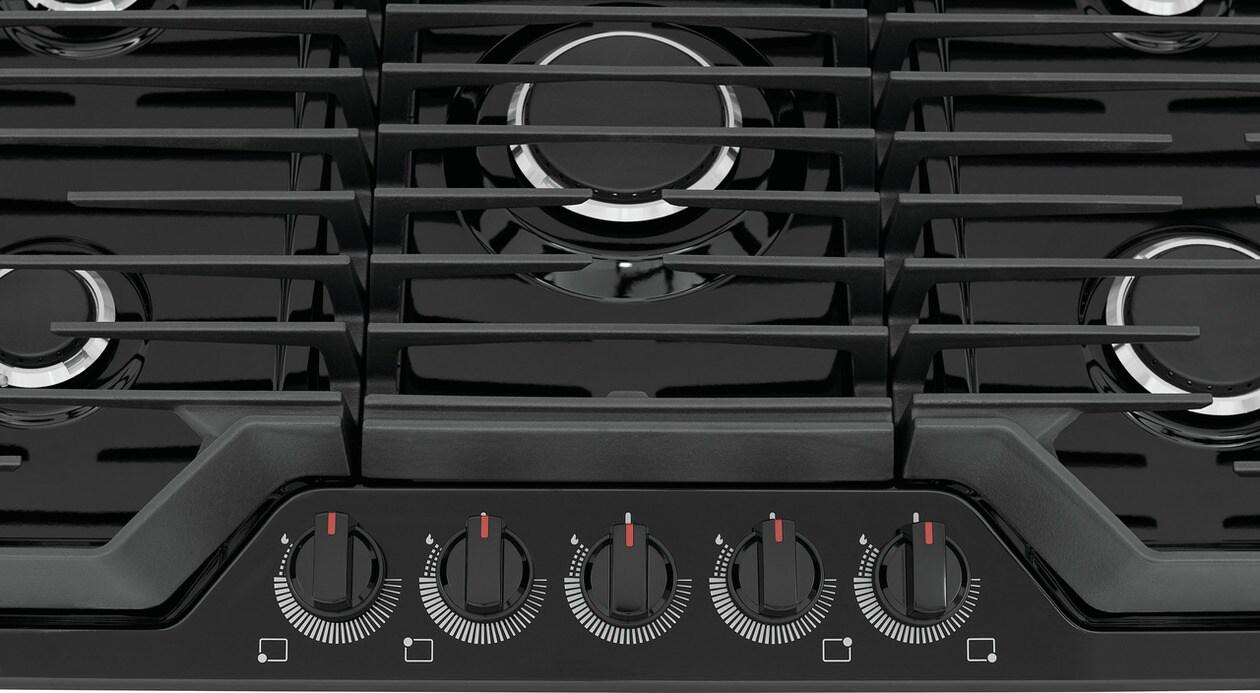

Backlit LED Knobs
Backlit LED knobs look great and provide visual heat awareness. White glows while cooking. Red glows after shutoff while the surface remains hot.
Low Simmer Burner
Delivers a gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.

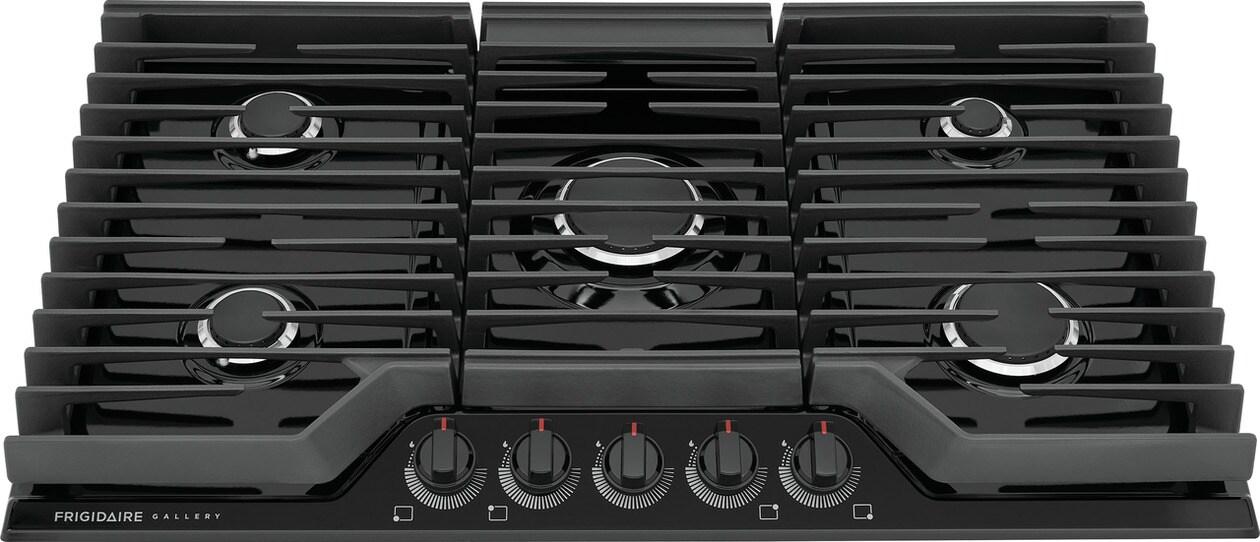

Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
- PowerPlus(R) Burner
- This powerful 18,000-BTU PowerPlus(R) Burner delivers rapid heat for quick boils, while EvenTemp(TM) technology helps keep heat evenly distributed for consistent results - ideal for everyday cooking.
- Five Burner Cooktop
- From a 5,000-BTU simmer burner to our 18,000-BTU PowerPlus(R) Burner, this five-burner cooktop satisfies your cooking needs.
- Backlit LED Knobs
- Backlit LED knobs look great and provide visual heat awareness. White glows while cooking. Red glows after shutoff while the surface remains hot.
- Low Simmer Burner
- Delivers a gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
- Dishwasher Safe Burner Caps
- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
- Continuous Edge-to-Edge Grates
- Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
- Spill Safe(R) Cooktop
- Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
- Frigidaire(R) Fit Promise
- We promise that your new 36" Frigidaire Gallery gas cooktop will fit your existing cut-out, or we will reimburse you up to one hundred dollars for professionally modifying the countertop. * Via mail-in rebate. See https://www.Frigidaire.com/FitPromise for additional information.
- Installation over Wall Oven Approved
- Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
| Product Line | Gas Cooktop |
| Power Type | NG |
| Size | 36" |
| Installation Type | Built-In |
| Factory | Rayong |
| Color | Black |
| Cooktop | |
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Total Number of Burners | 5 |
| Cooktop Performance | |
| Right Front Element Burner | 12000 BTU |
| Right Rear Element Burner | 5000 BTU |
| Left Front Element Burner | 9500 BTU |
| Left Rear Element Burner | 9500 BTU |
| Center Front Element Burner | 18000 BTU |
| Display | |
| Control Location | Front |
| Exterior | |
| Backlit Knobs | Yes |

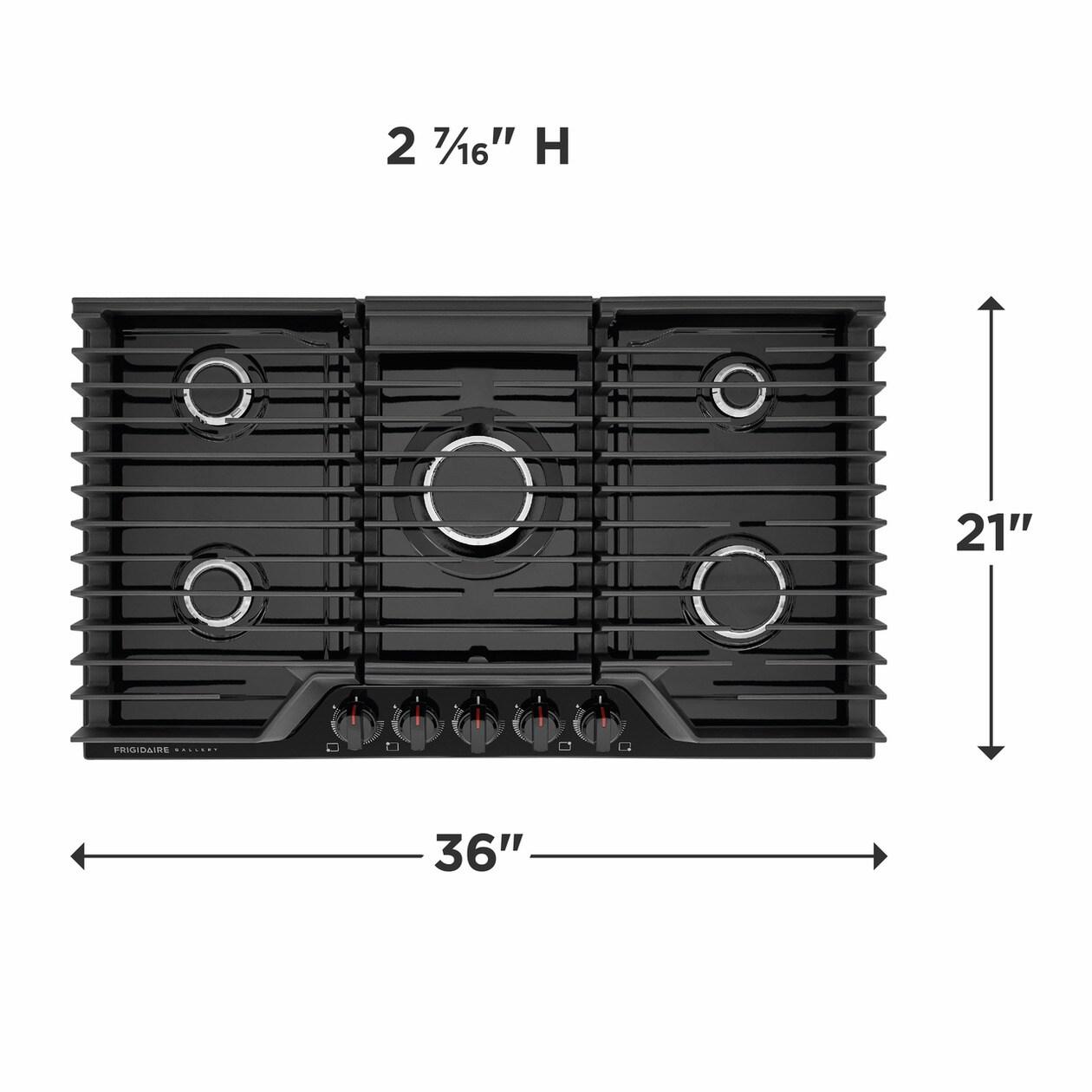

| Dimensions and Volume | |
| Height | 2 7/16" |
| Width | 36" |
| Depth | 21" |
| Cutout Height | 7 1/2" |
| Minimum Cutout Width | 33 7/8" |
| Minimum Cutout Depth | 19" |
| Maximum Cutout Width | 35 5/8" |
| Maximum Cutout Depth | 20" |
| Electrical Specifications | |
| Minimum Circuit Required | 5 Amps |
| Voltage Rating | 120 V |
| Installation | |
| Gas Supply Connection Location | Top Right |
| Installed Over a Wall Oven | Yes |
| LP Conversion Kit Included | Yes |
| Power Cord Included | Yes |
| Power Supply Connection Location | Right Center |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 51 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
Products specifications
| Burner Type | Sealed Burners, Sealed |
| Number of Burners | 5 |
| Power Source | Gas |
| WiFi Connected | No |
| Size | 36.0 Inch |
| Color | BLACK |
| Height | 10.00 |
| Width | 26.00 |
| Depth | 41.00 |
