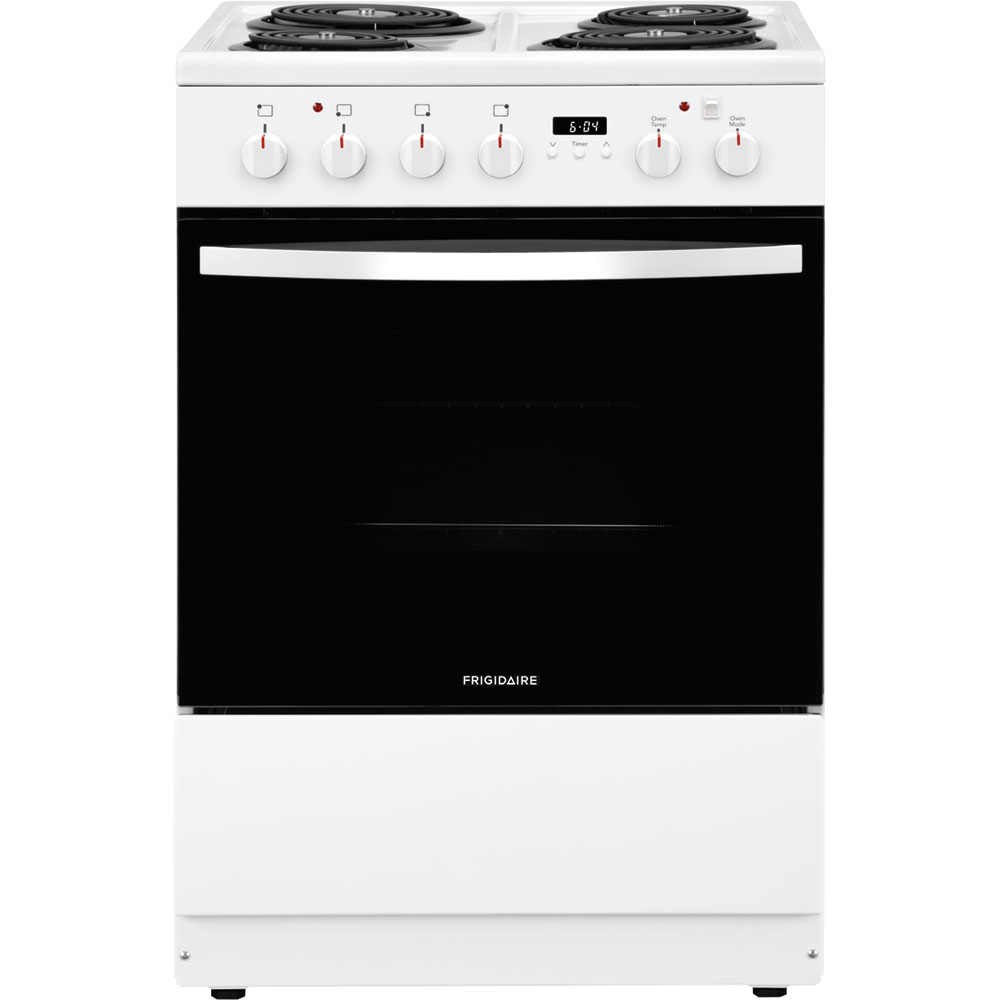

Compact design for smaller kitchens

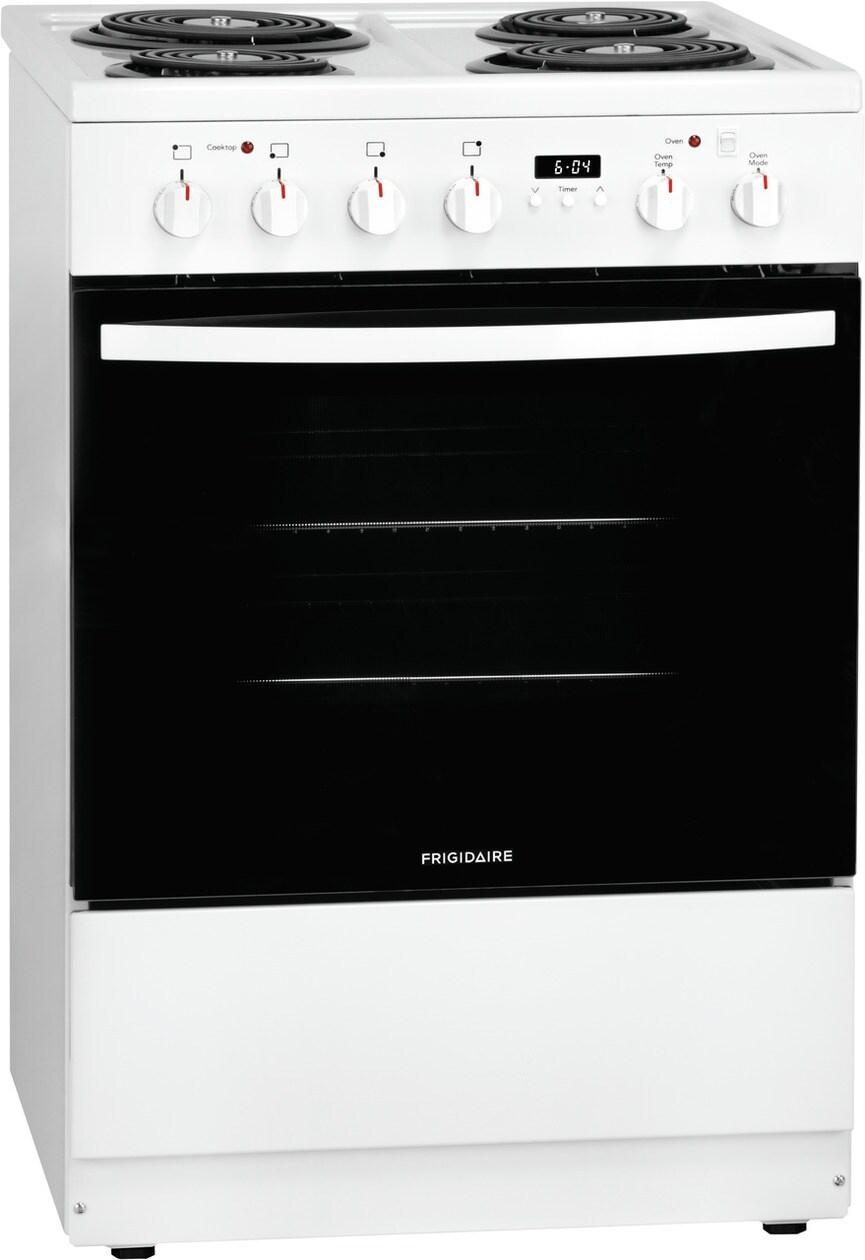

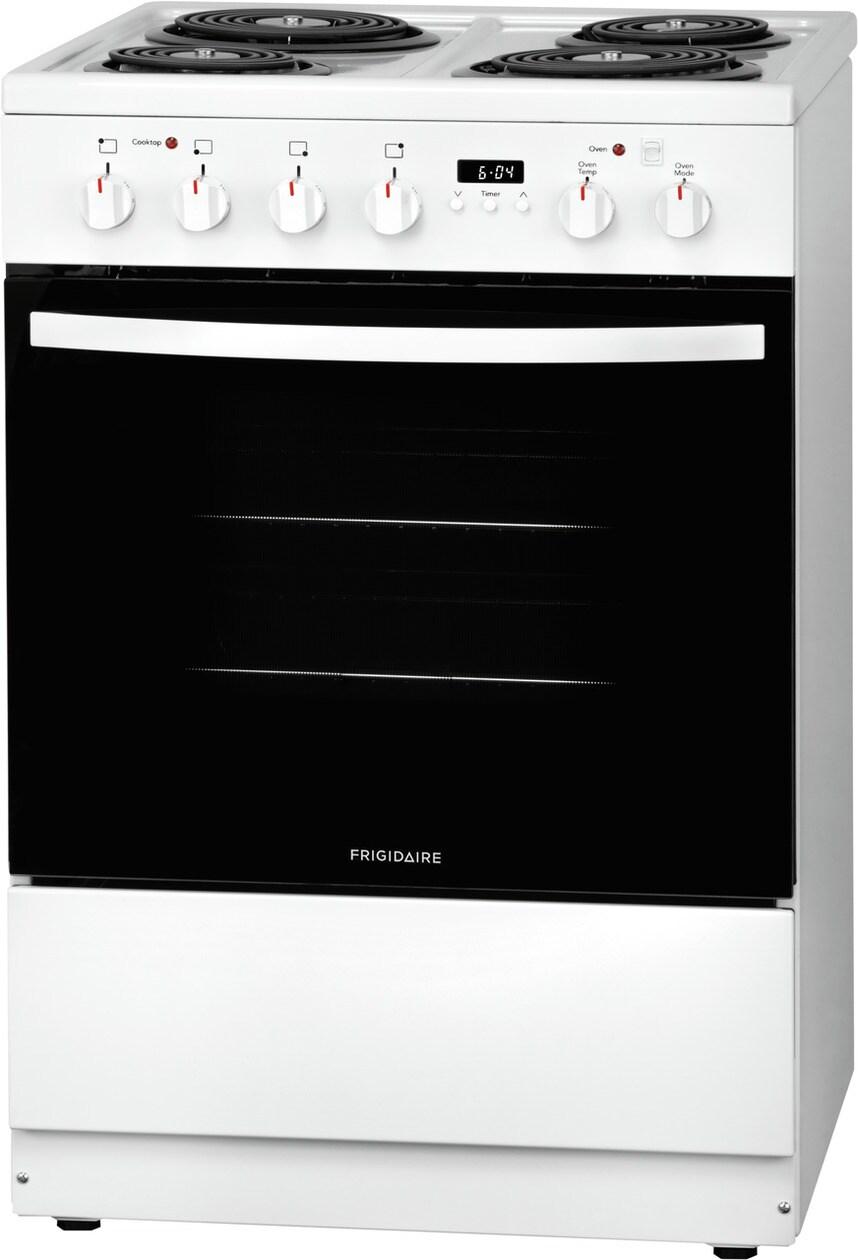

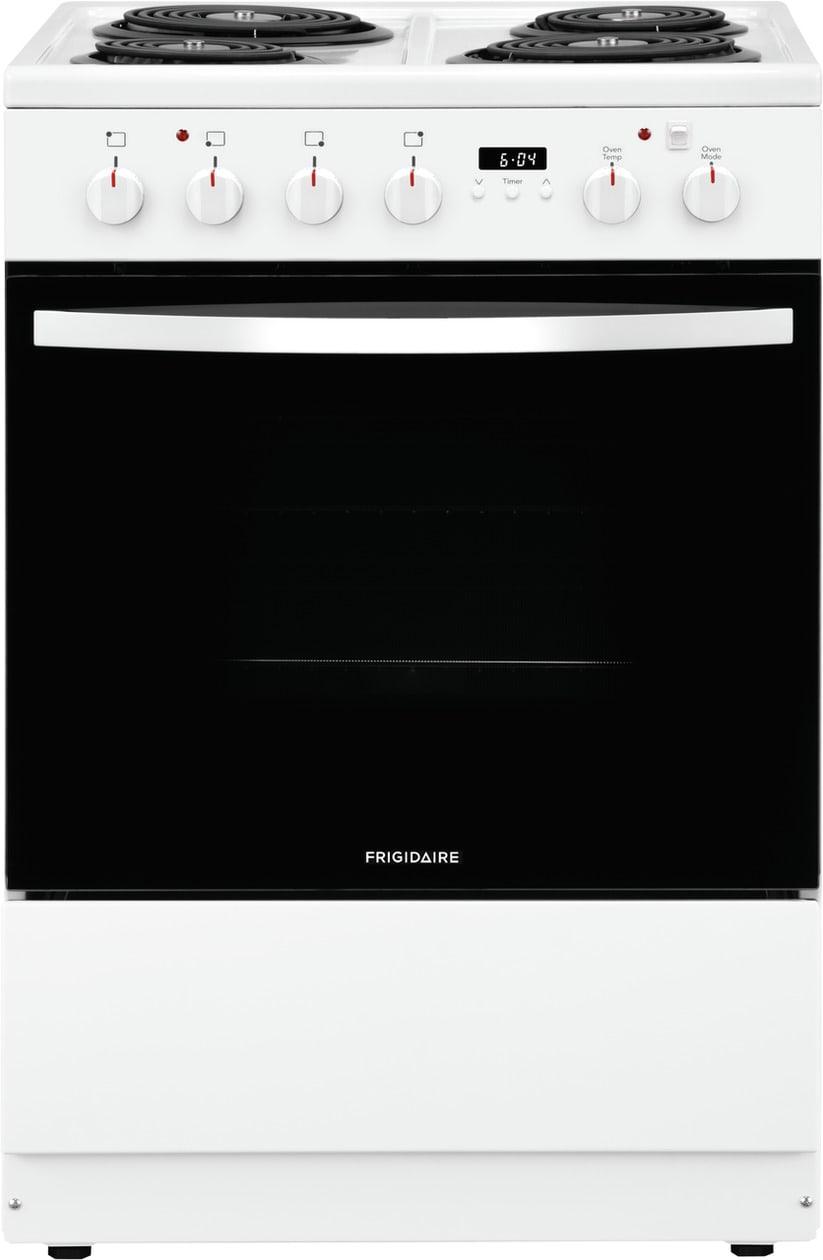

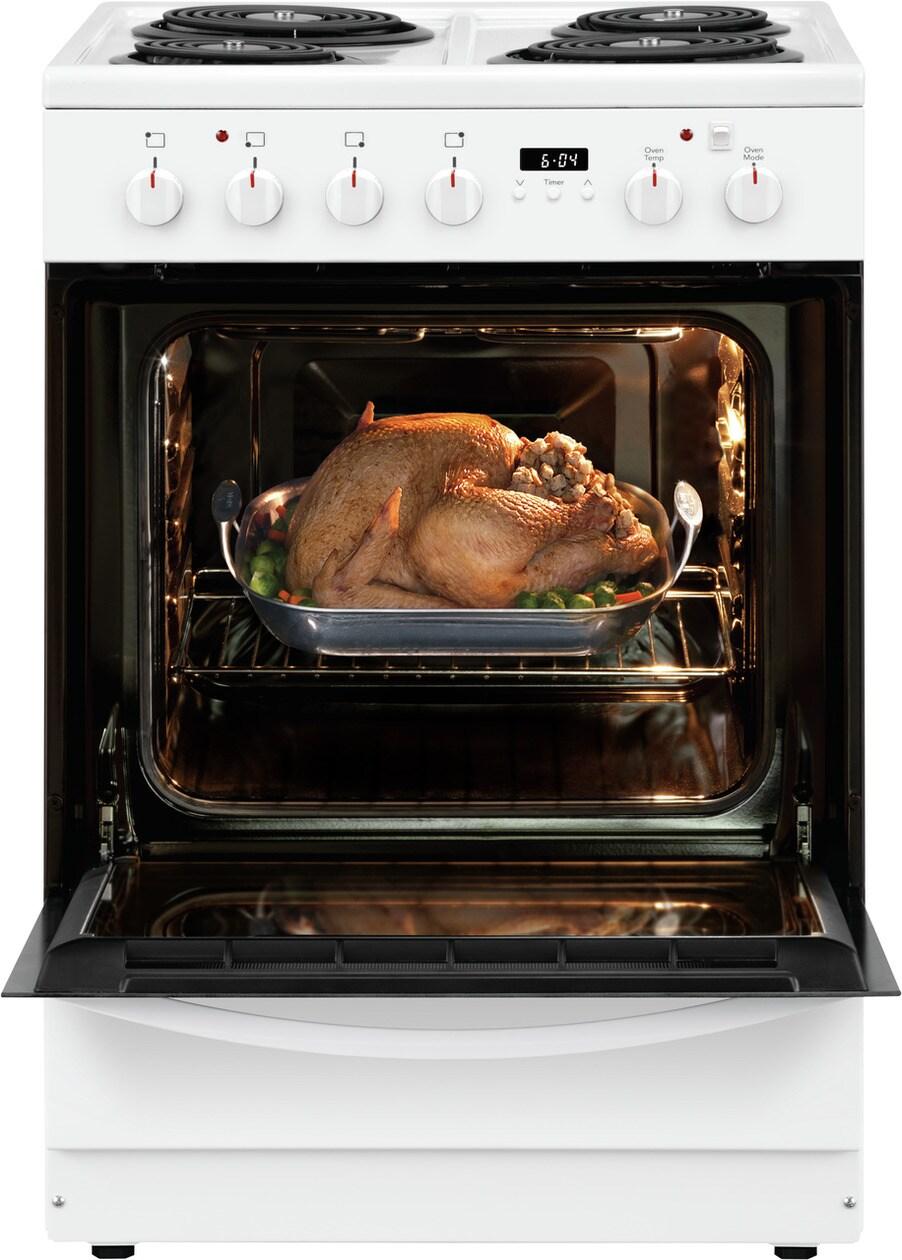

This 24" electric range is compact in design, but not in capacity - oven fits up to a 10 lb. turkey.
Hidden Bake Element
Keeping the bottom of your oven clean is easier with a hidden heating element.
Storage Drawer
Convenient storage drawer offers extra space to store your cookware.

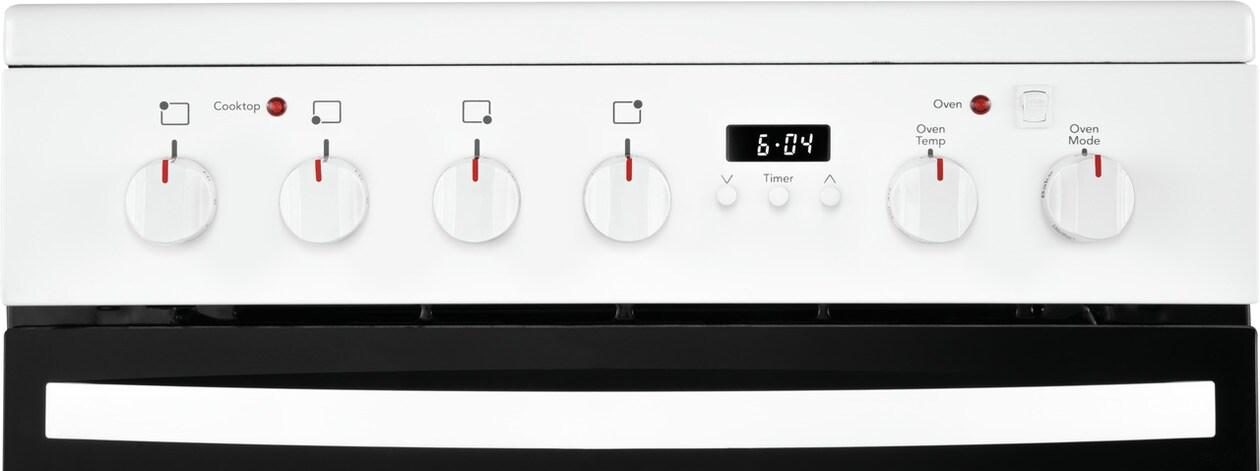

Color-Coordinated Knobs
Stylish knobs that match the finish of the range.
ADA Compliant
Product complies with the Americans with Disabilities Act. * When properly installed, meets the appliance standards in the Americans with Disabilities Act and the Architectural Barriers Act Accessibility Guidelines as published by the United States Access Board on June 23, 2004, as amended August 5, 2005.
- Compact design for smaller kitchens
- This 24" electric range is compact in design, but not in capacity - oven fits up to a 10 lb. turkey.
- Hidden Bake Element
- Keeping the bottom of your oven clean is easier with a hidden heating element.
- Storage Drawer
- Convenient storage drawer offers extra space to store your cookware.
- Color-Coordinated Knobs
- Stylish knobs that match the finish of the range.
- ADA Compliant
- Product complies with the Americans with Disabilities Act. * When properly installed, meets the appliance standards in the Americans with Disabilities Act and the Architectural Barriers Act Accessibility Guidelines as published by the United States Access Board on June 23, 2004, as amended August 5, 2005.
| Product Line | Coil Range |
| Power Type | Electric 240v |
| Size | 24" |
| Installation Type | Free-Standing |
| Factory | Romania |
| Color | White |
| Cooktop | |

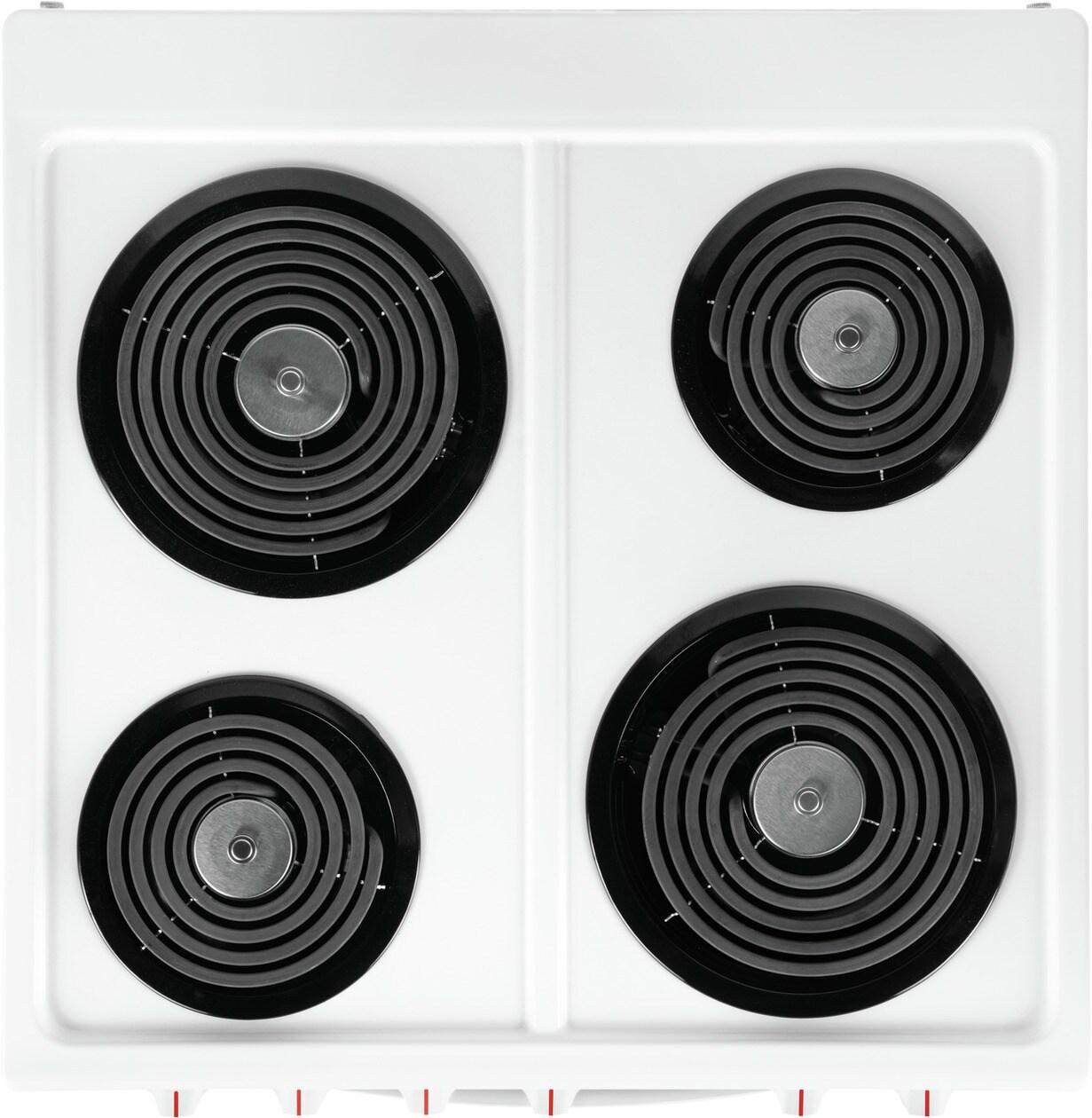

| Cooking Surface Type | Coil |
| Drip Bowl Type | Porcelain |
| Cooktop Performance | |
| Right Front Element Burner Size | 8" |
| Right Rear Element Burner Size | 6" |
| Left Front Element Burner Size | 6" |
| Left Rear Element Burner Size | 8" |
| Right Front Element Burner | 2400 Watts |
| Right Rear Element Burner | 1500 Watts |
| Left Front Element Burner | 1500 Watts |
| Left Rear Element Burner | 2400 Watts |
| Oven | |
| Bake Element | 1000 Watts |
| Bake Element Pass | 4 |
| Bake Element Type | Hidden |
| Bake System | Yes |
| Broil Element | 1650 Watts |
| Broil Element Pass | 4 |
| Broil System | Yes |

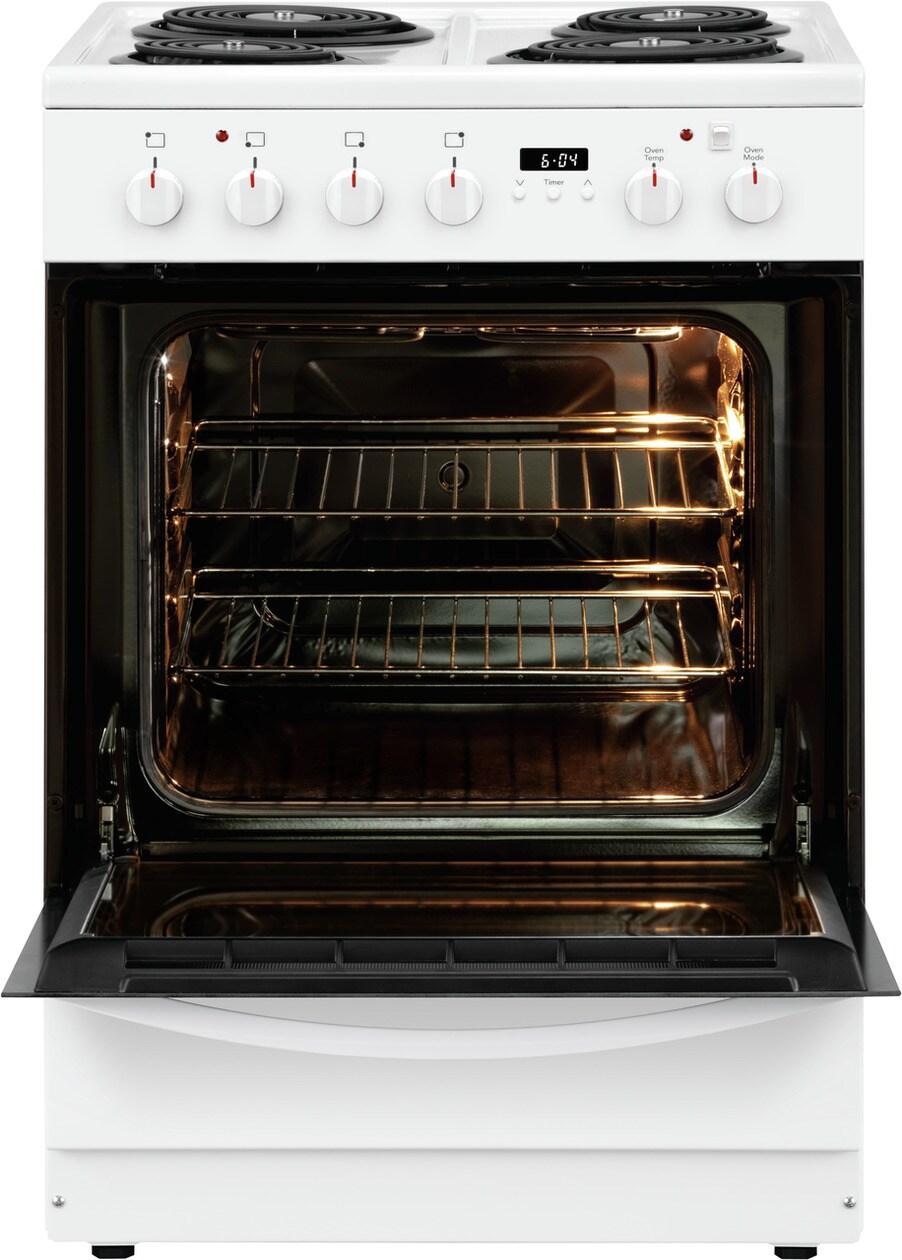

| Number of Rack Positions | 3 |
| Oven Interior Color | Midnight Black |
| Rack Position Type | Nickel Ladder |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Window Type | Extra Large Window |
| Drawer | |
| Drawer Type | Storage |
| Controls | |
| Sabbath Mode | No |
| Display | |
| Control Location | Front |
| Exterior | |
| Drawer Finish | Color Coordinated |
| Knob Color | Color Coordinated |
| Knob Material | Plastic |
| Dimensions and Volume | |

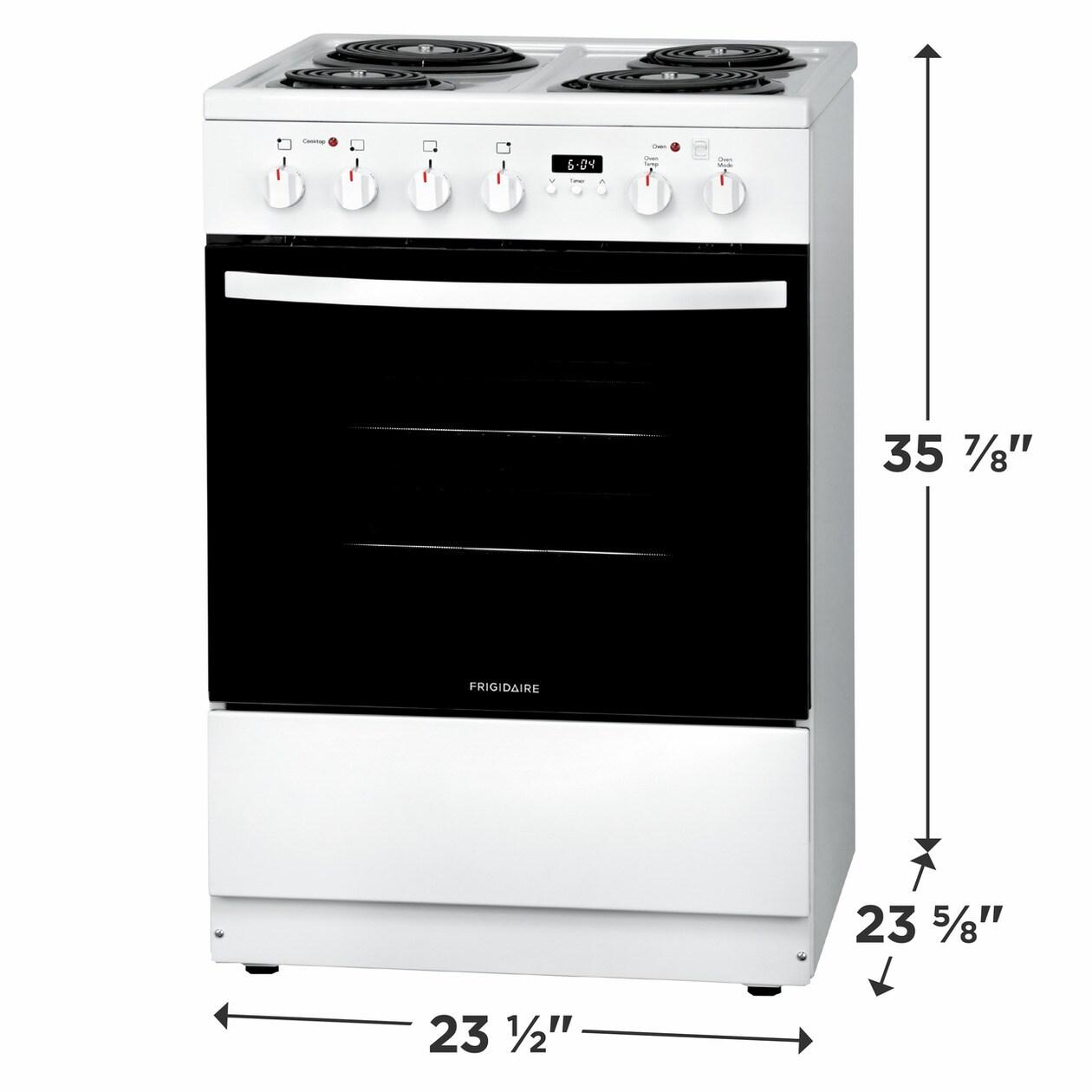

| Minimum Height | 35 7/8" |
| Maximum Height | 36 7/8" |
| Width | 23 1/2" |
| Depth | 23 5/8" |
| Depth With Door 90° Open | 41 1/2" |
| Oven Interior Height | 12 7/8" |
| Oven Interior Width | 16 3/8" |
| Oven Interior Depth | 16 3/50" |
| Oven Capacity | 1.9 Cu. Ft. |
| Electrical Specifications | |
| Amps @ 240 Volts | 31.3 Amps |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Installation | |

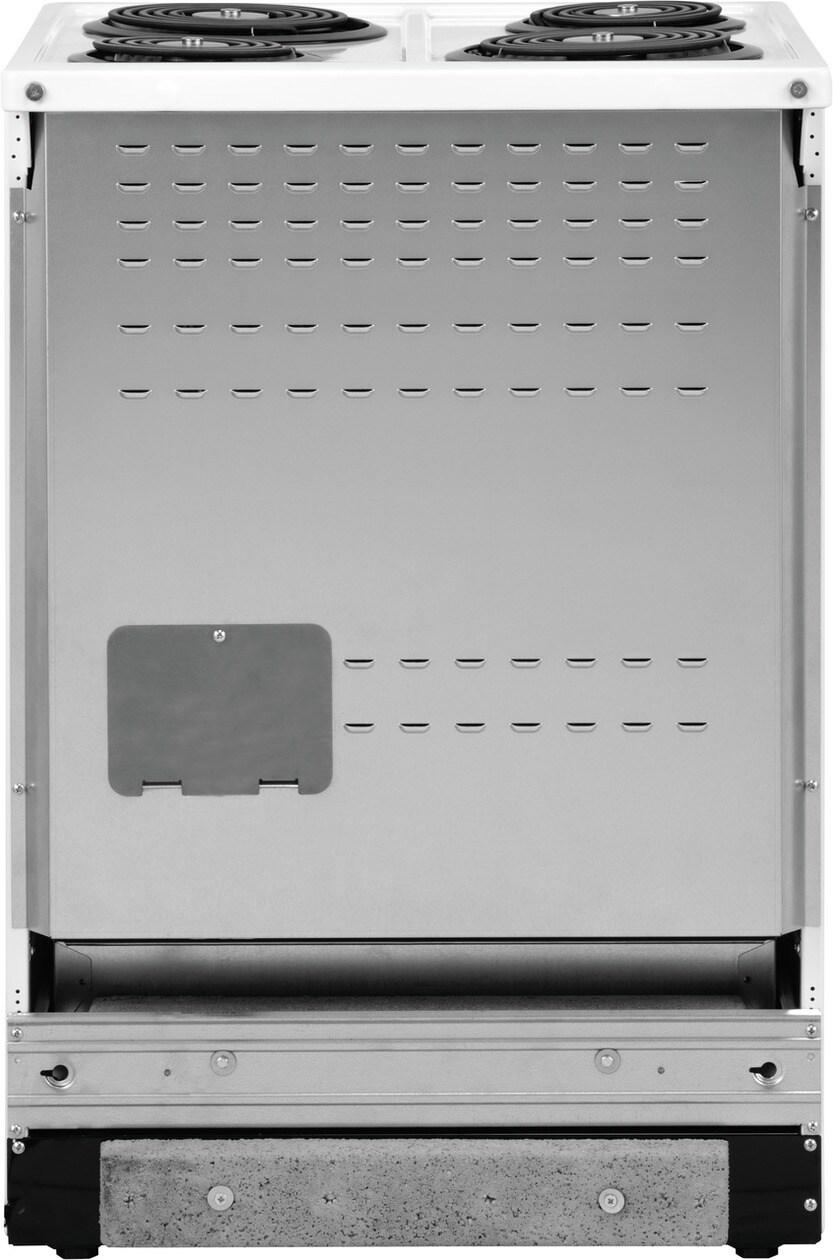

| Power Supply Connection Location | Bottom Left |
| General Specifications | |
| Product Weight | 123.5 lbs |
| Prop 65 Label | No |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| UL Listed | Yes |
Products specifications
| Cleaning Type | Manual Clean |
| Cooking Surface | Porcelain |
| Cooking Type | Thermal |
| Drawer | Storage |
| Element Type | Coil Elements |
| Number of Elements | 4 |
| Power Source | Electric |
| WiFi Connected | No |
| ADA COMPLIANT | Yes |
| BACKSPLASH | No |
| CONTROL LOCATION | Front |
| BLUETOOTH | No |
| Size | 24.0 Inch |
| Color | WHITE |
| Height | 36.88 |
| Depth | 23.63, 23.62 |
| Width | 23.50 |
