Product Recommendations

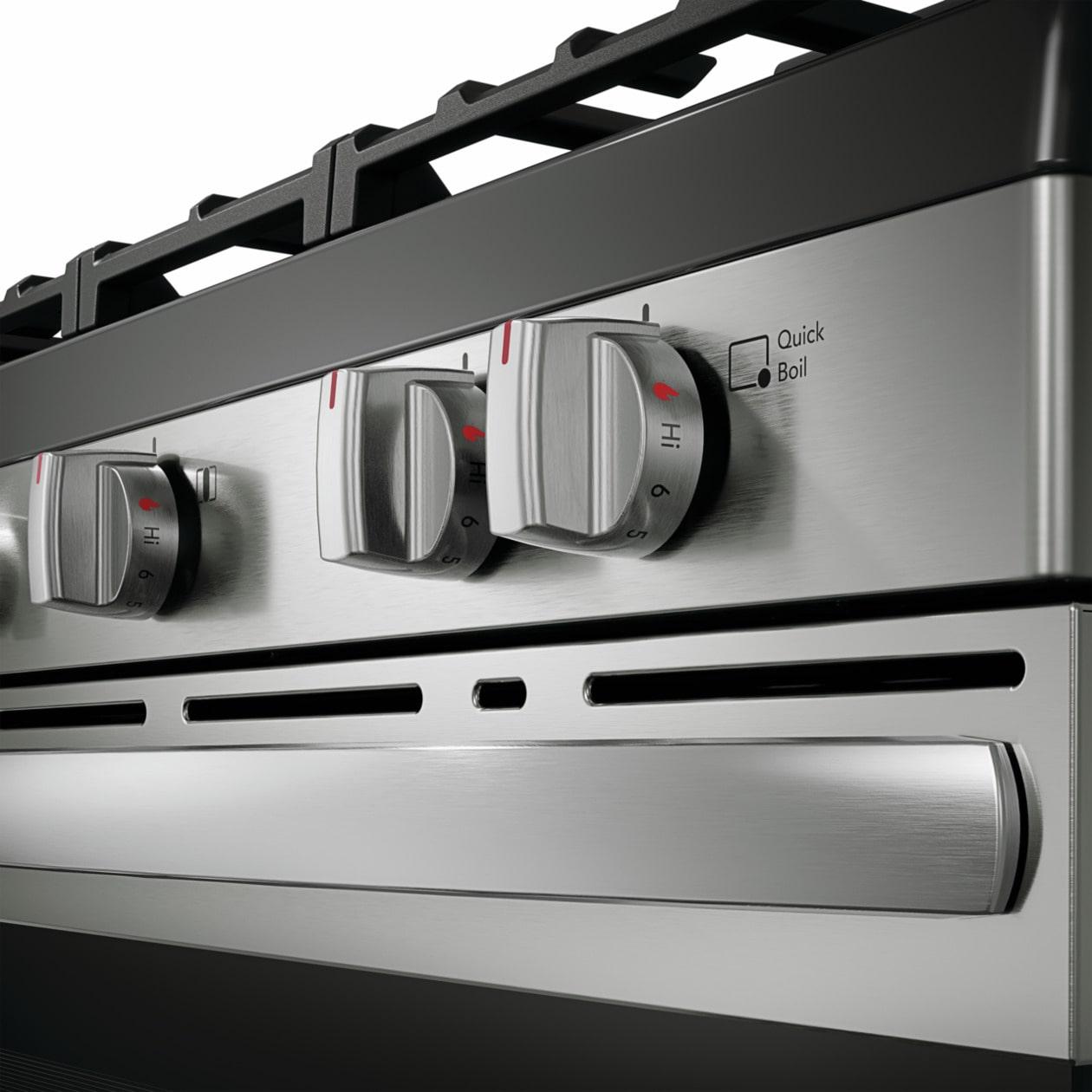

Quick Boil
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

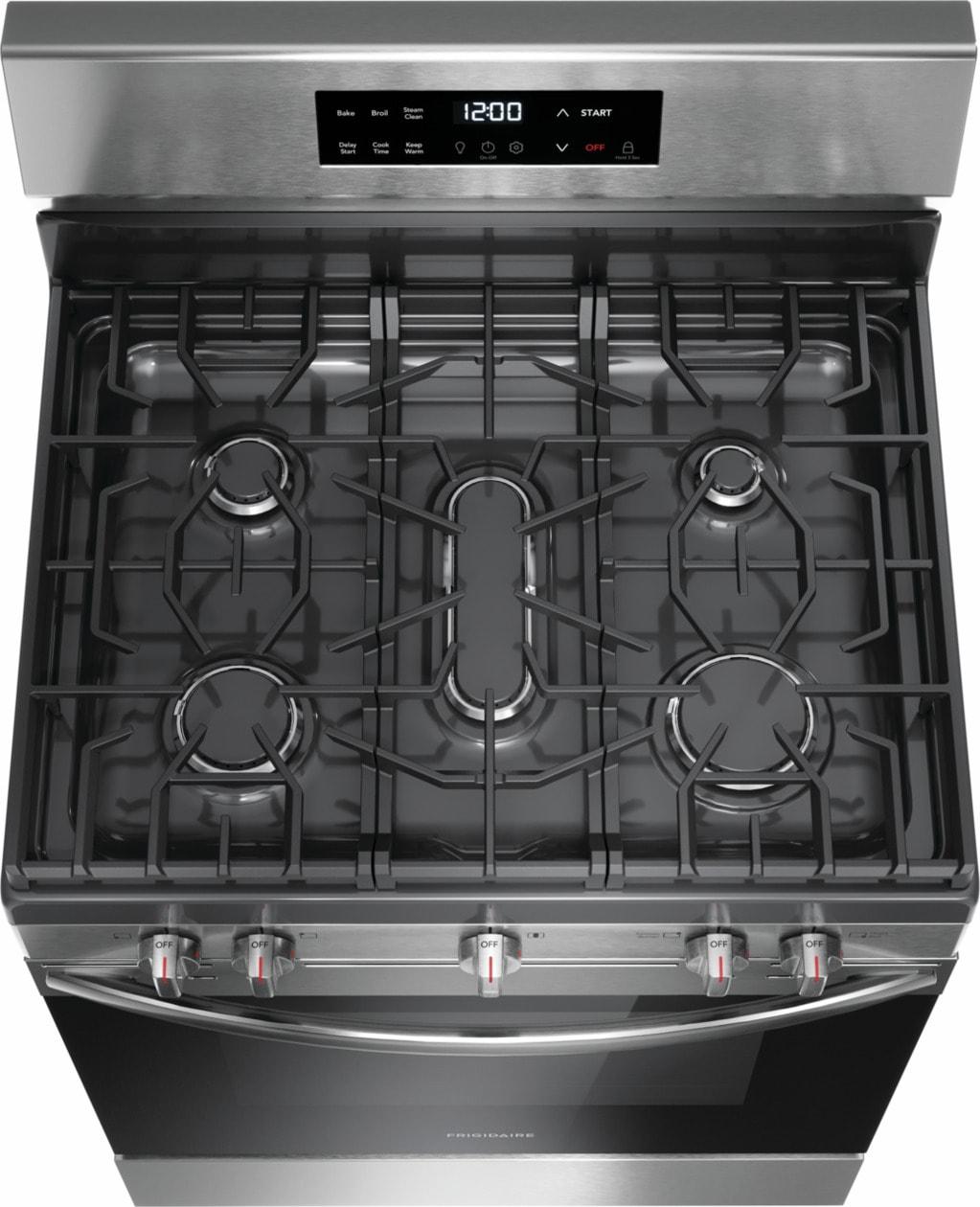

Five Burner Cooktop
Designed to meet all of your cooking needs with a 5,000-BTU simmer burner, 10,000-BTU center oval burner, and 18,000-BTU Quick Boil Burner.
Even Baking Technology
Designed to deliver even baking results, every time.

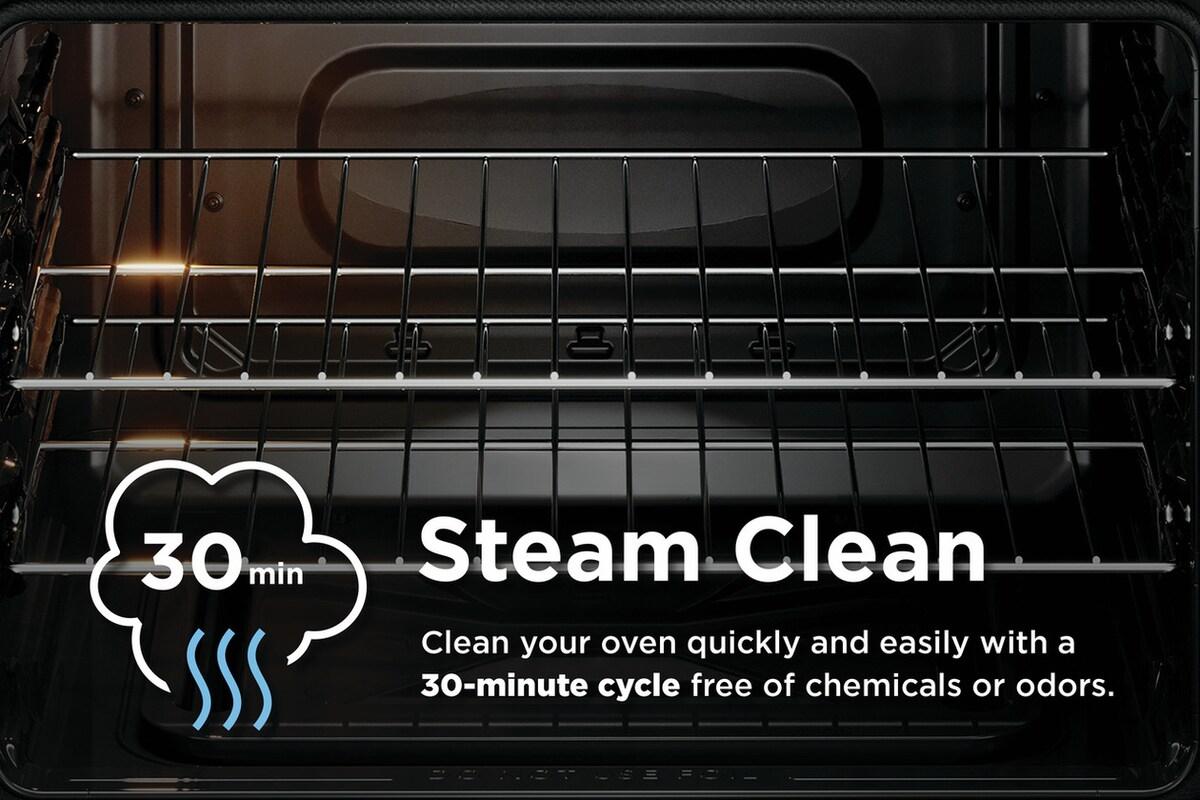

30-Minute Steam Clean
A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Extra Wide Store-More(TM) Storage Drawer
Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
- Quick Boil
- Experience faster boil times and more powerful cooking with the 18,000 BTU burner.
- Five Burner Cooktop
- Designed to meet all of your cooking needs with a 5,000-BTU simmer burner, 10,000-BTU center oval burner, and 18,000-BTU Quick Boil Burner.
- Even Baking Technology
- Designed to deliver even baking results, every time.
- 30-Minute Steam Clean
- A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
- Continuous Edge-to-Edge Grates
- Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
- Extra Wide Store-More(TM) Storage Drawer
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!

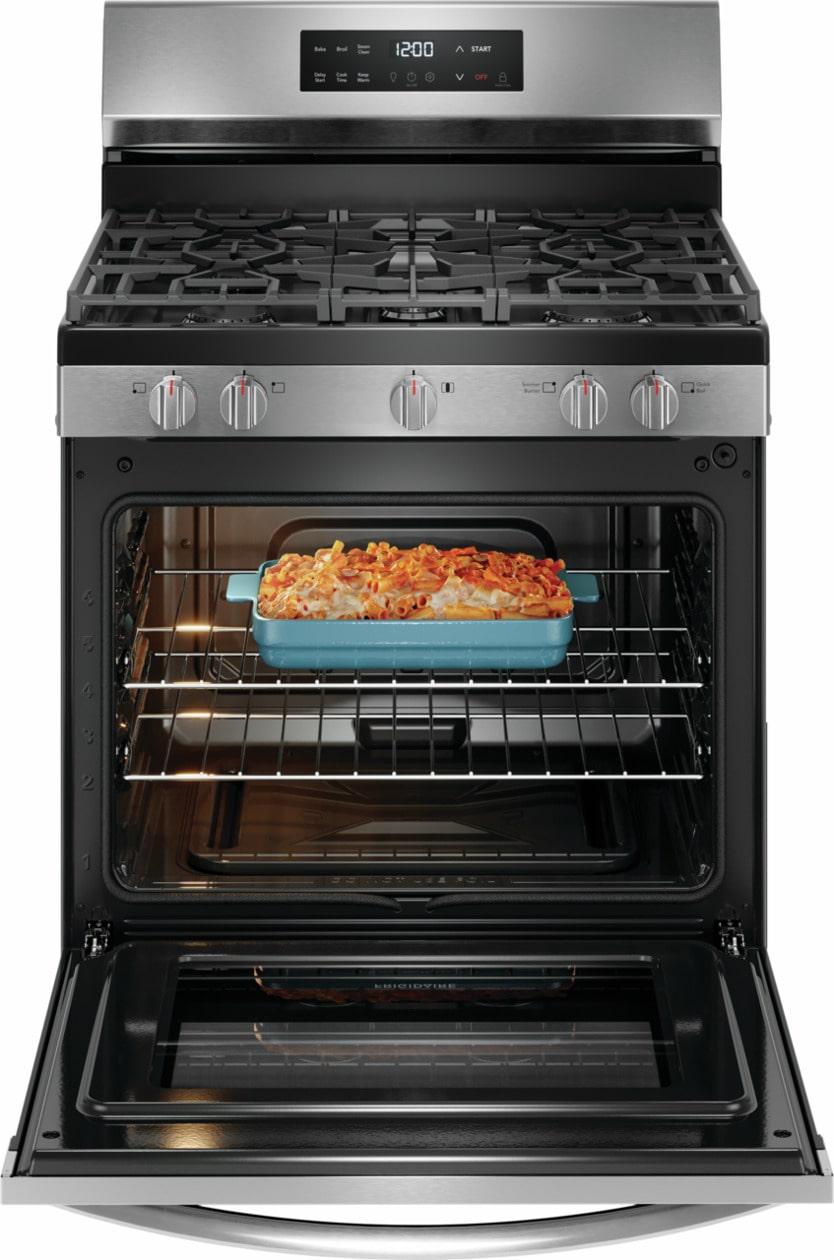

- 5.1 Cu. Ft. Oven Capacity
- Cook more at once with our large oven capacity.
- Dishwasher Safe Burner Caps
- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
- Hidden Bake Element
- Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
- Proudly Assembled in the USA
| Product Line | Gas Range |
| Power Type | NG |
| Size | 30" |
| Installation Type | Free-Standing |
| Factory | Springfield |
| Color | Stainless Steel |
| Cooktop | |
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Total Number of Burners | 5 |
| Cooktop Performance | |
| Right Front Element Burner | 18000 BTU |
| Right Rear Element Burner | 5000 BTU |
| Left Front Element Burner | 14000 BTU |
| Left Rear Element Burner | 10000 BTU |
| Center Rear Element Burner | 10000 BTU |

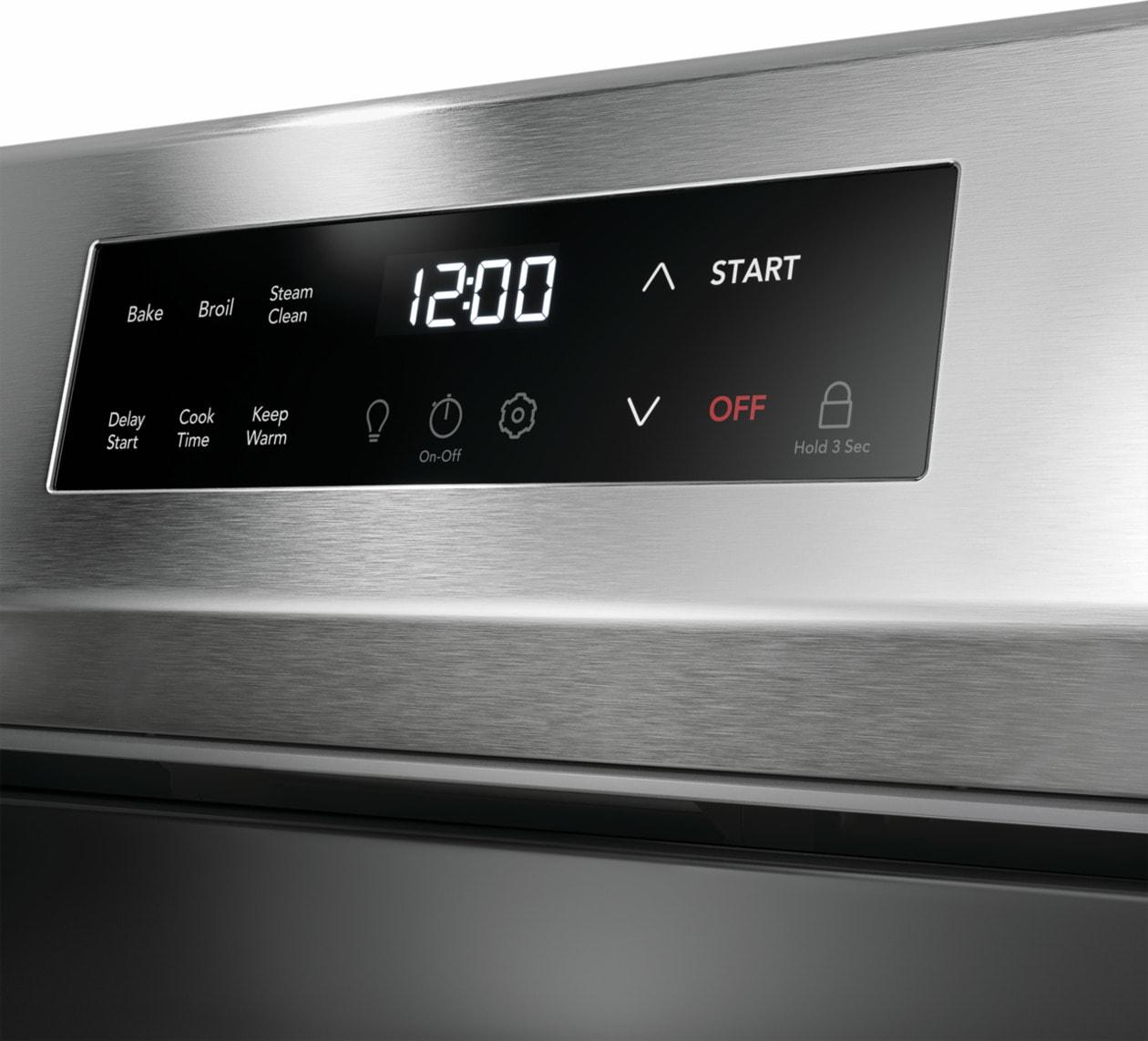

| Cooking Controls | |
| Bake | Yes |
| Broil | Yes |
| Clock | Yes |
| Cook Time | Yes |
| Delay Clean | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| Lockout | Yes |
| Off | Yes |
| Oven Light | Yes |
| Set Clock | Yes |
| Start | Yes |
| Steam Clean | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
| Up / Down Arrow | Yes |
| User Preferences | Yes |
| Cooking Controls Function | |
| Adjustable Volume Feedback | Yes |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Delayed Bake | Yes |
| Program Fahrenheit or Celsius | Yes |
| Oven | |
| Bake Element | 17000 BTU |
| Broil Element | 1400 Watts |
| Broil Element Pass | 6 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Drawer | |
| Drawer Handle Style | Integrated |
| Drawer Type | Storage |
| Controls | |
| Control Lock | Yes |
| Display | |
| Control Location | Rear |
| Display Interface Color | White |
| Display Type | Membrane |

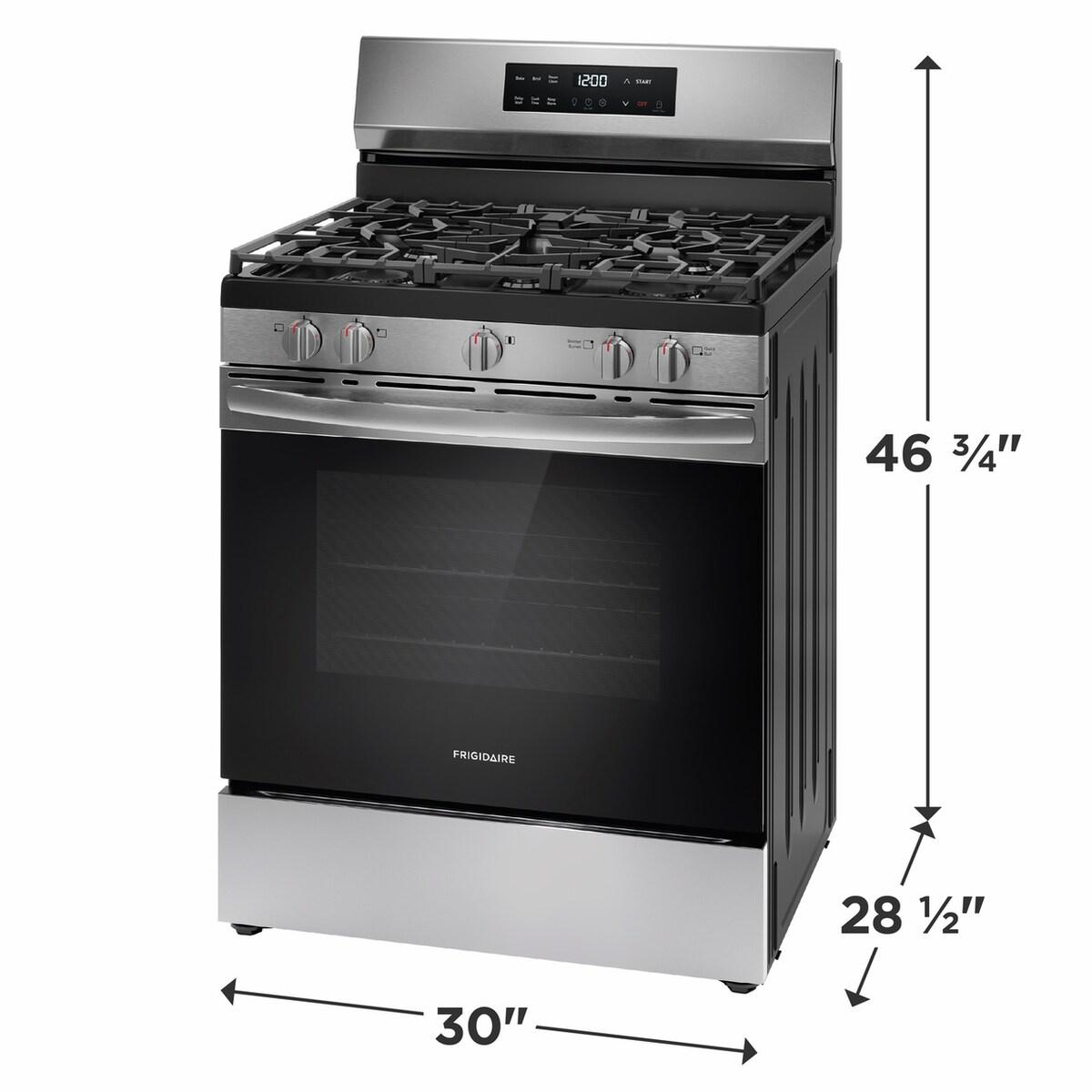

| Dimensions and Volume | |
| Minimum Height | 46 3/4" |
| Maximum Height | 47 3/4" |
| Width | 30" |
| Depth | 26" |
| Depth With Door 90° Open | 47 5/16" |
| Depth With Handle | 28 1/2" |
| Oven Interior Height | 17 5/8" |
| Oven Interior Width | 25 3/16" |
| Oven Interior Depth | 19 7/8" |
| Oven Capacity | 5.1 Cu. Ft. |
| Electrical Specifications | |
| Minimum Circuit Required | 12 Amps |
| Voltage Rating | 120 V |
| Installation | |
| Adjustable Leveling Legs | Yes |
| Power Cord Included | Yes |
| General Specifications | |
| Product Weight | 180 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Safety Certifications and Approvals | |
| CSA Listed | Yes |
Products specifications
| Color | STAINLESS STEEL |
| WiFi Connected | No |
| Height | 46.75, 47.00 |
| Width | 30.00, 29.90 |
| Depth | 26.00, 28.50, 29.00 |
| Burner Type | Sealed |
| Number of Burners | 5 |
