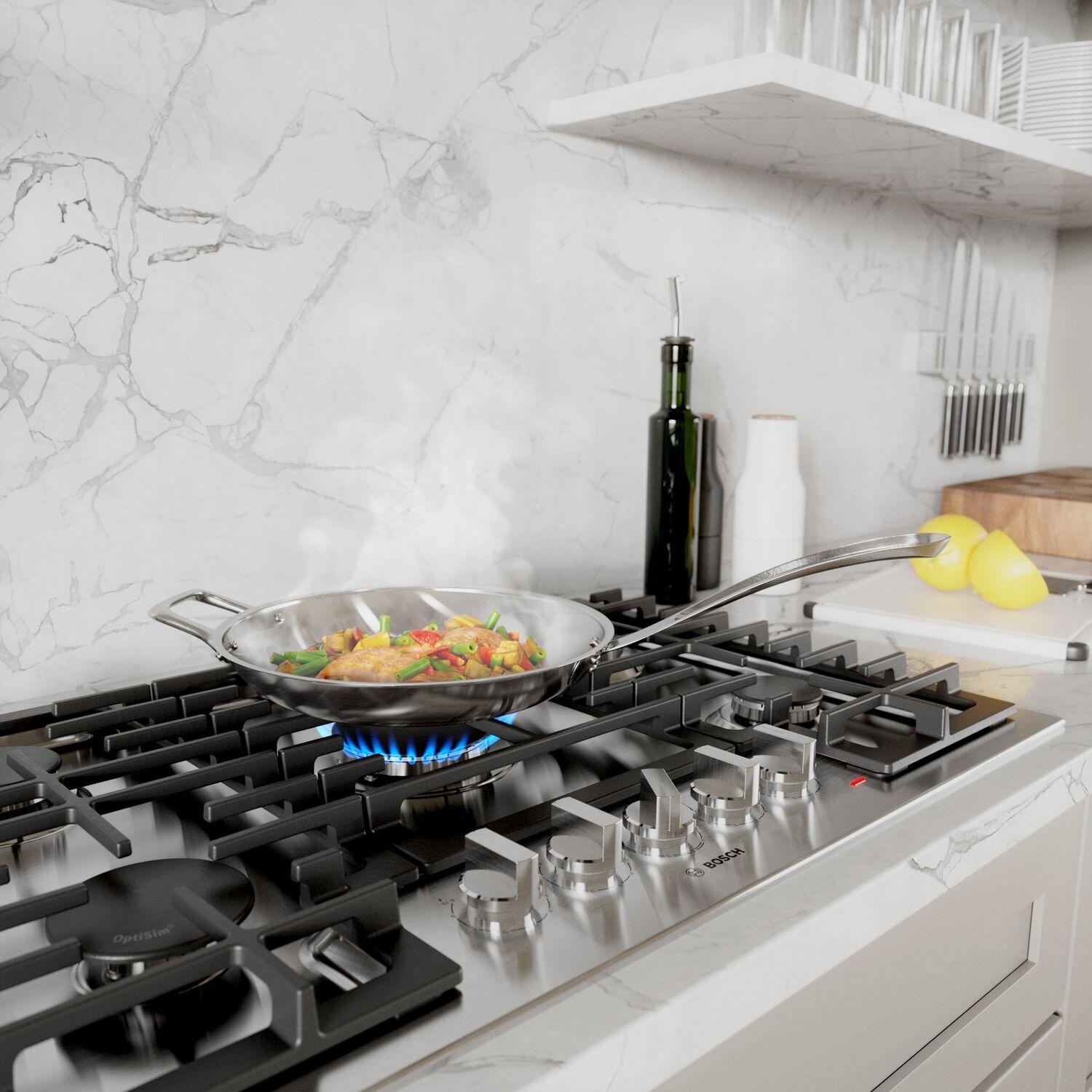

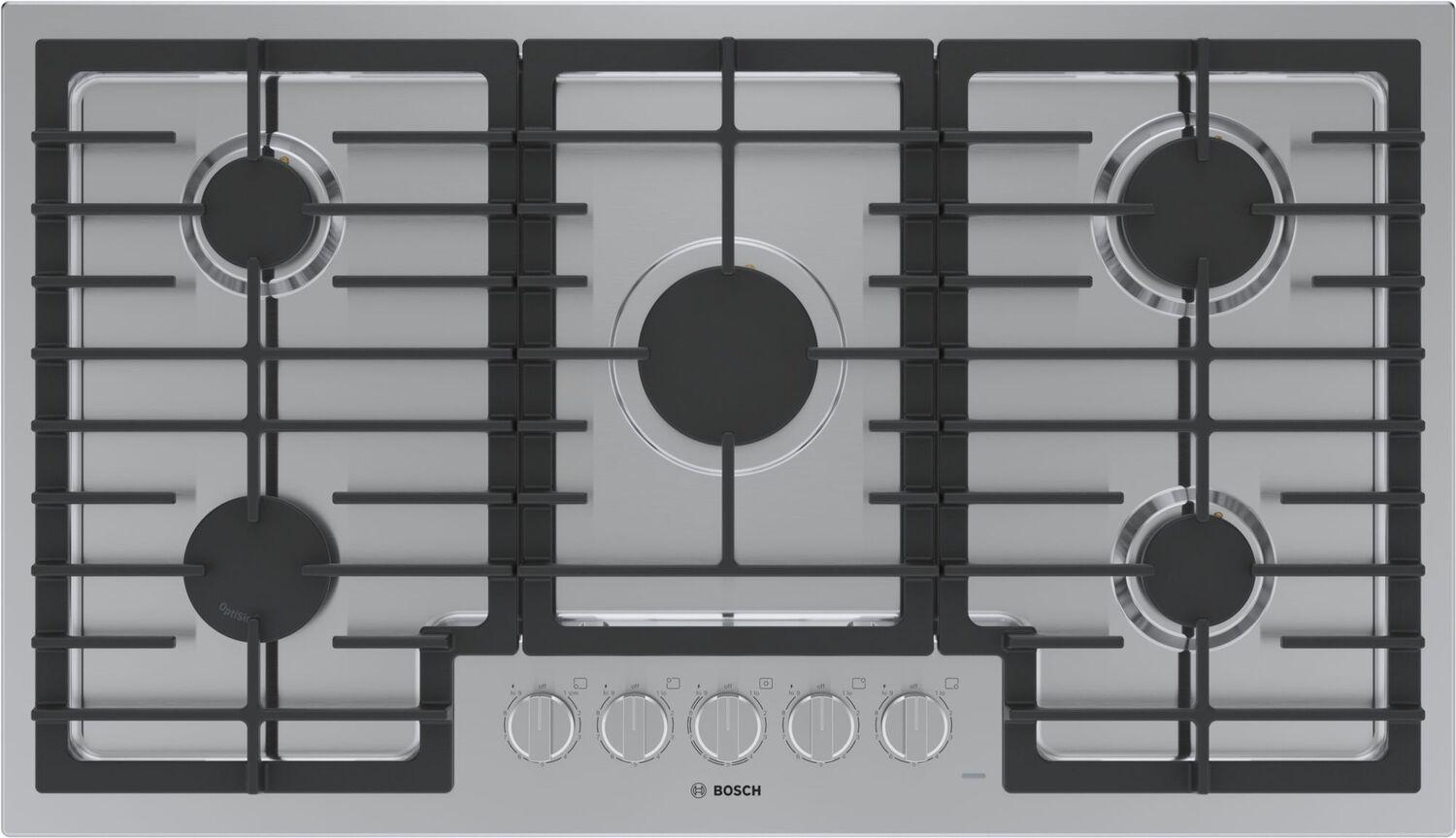

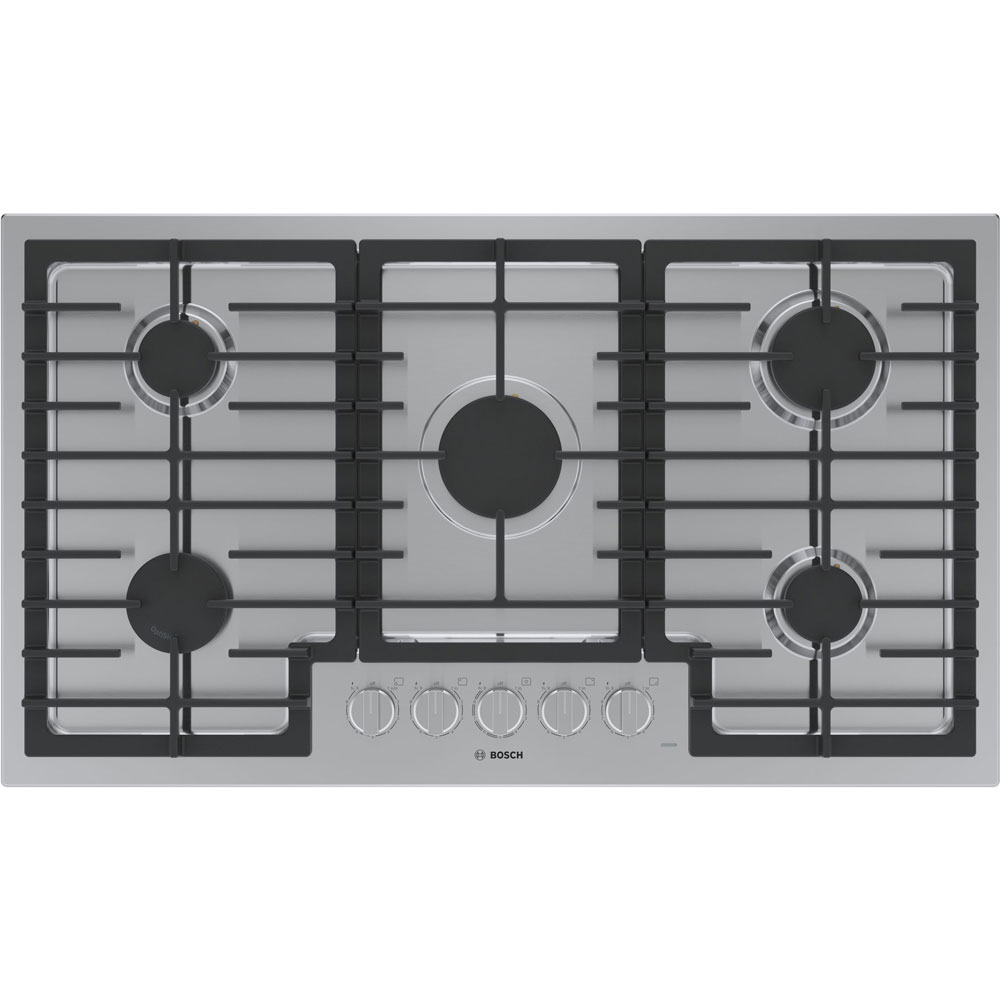

Fit multiple pans and cook with 5 burners
5 powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.

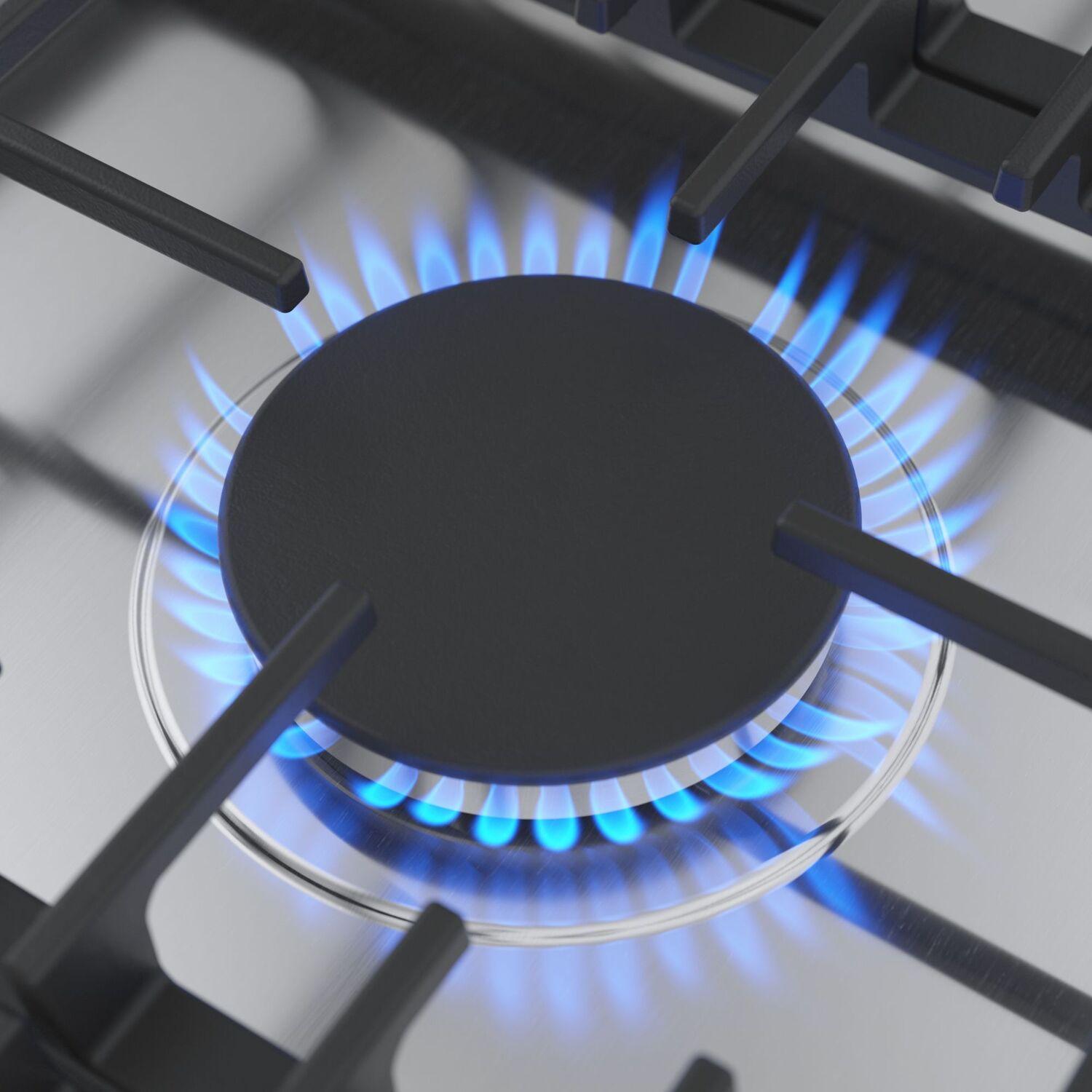

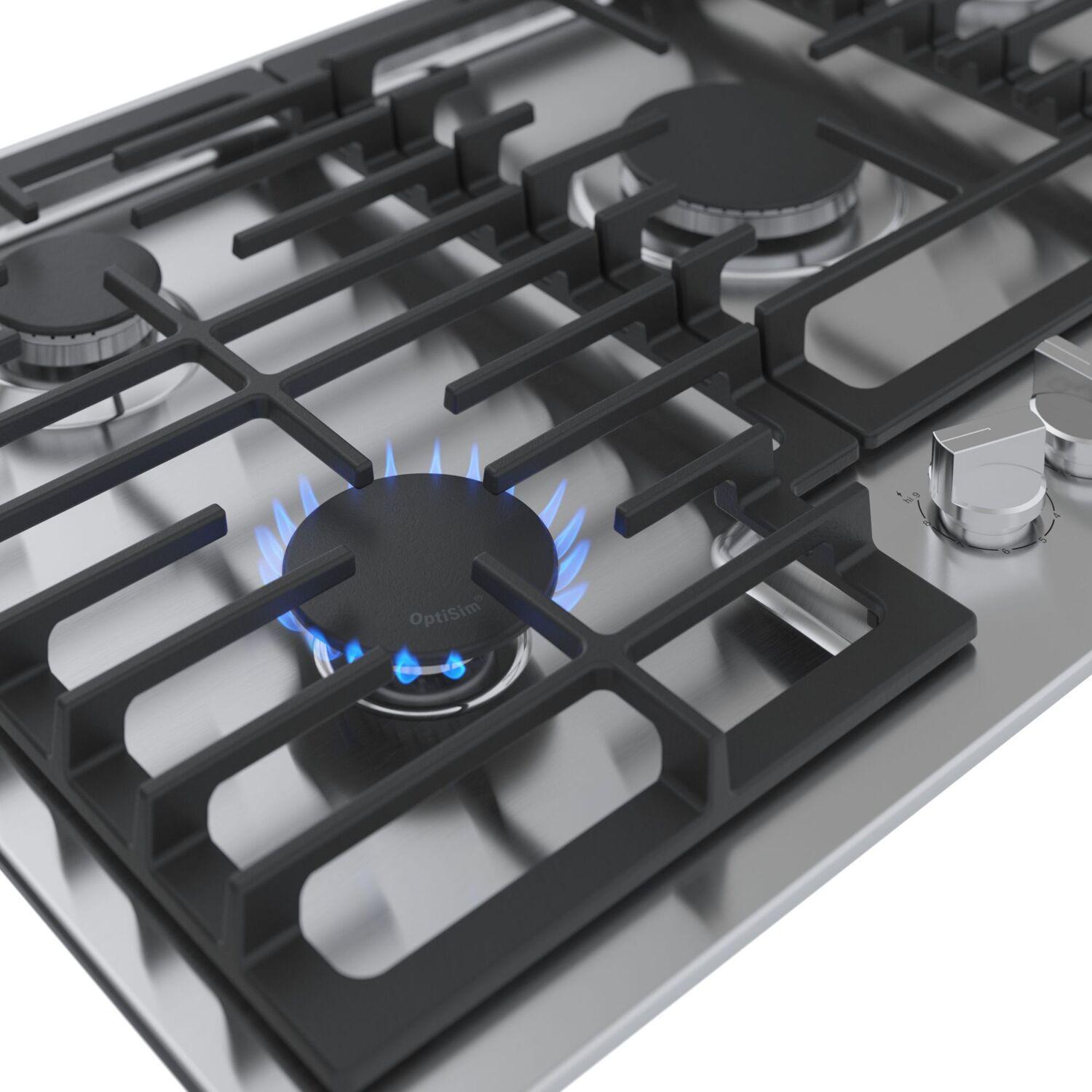

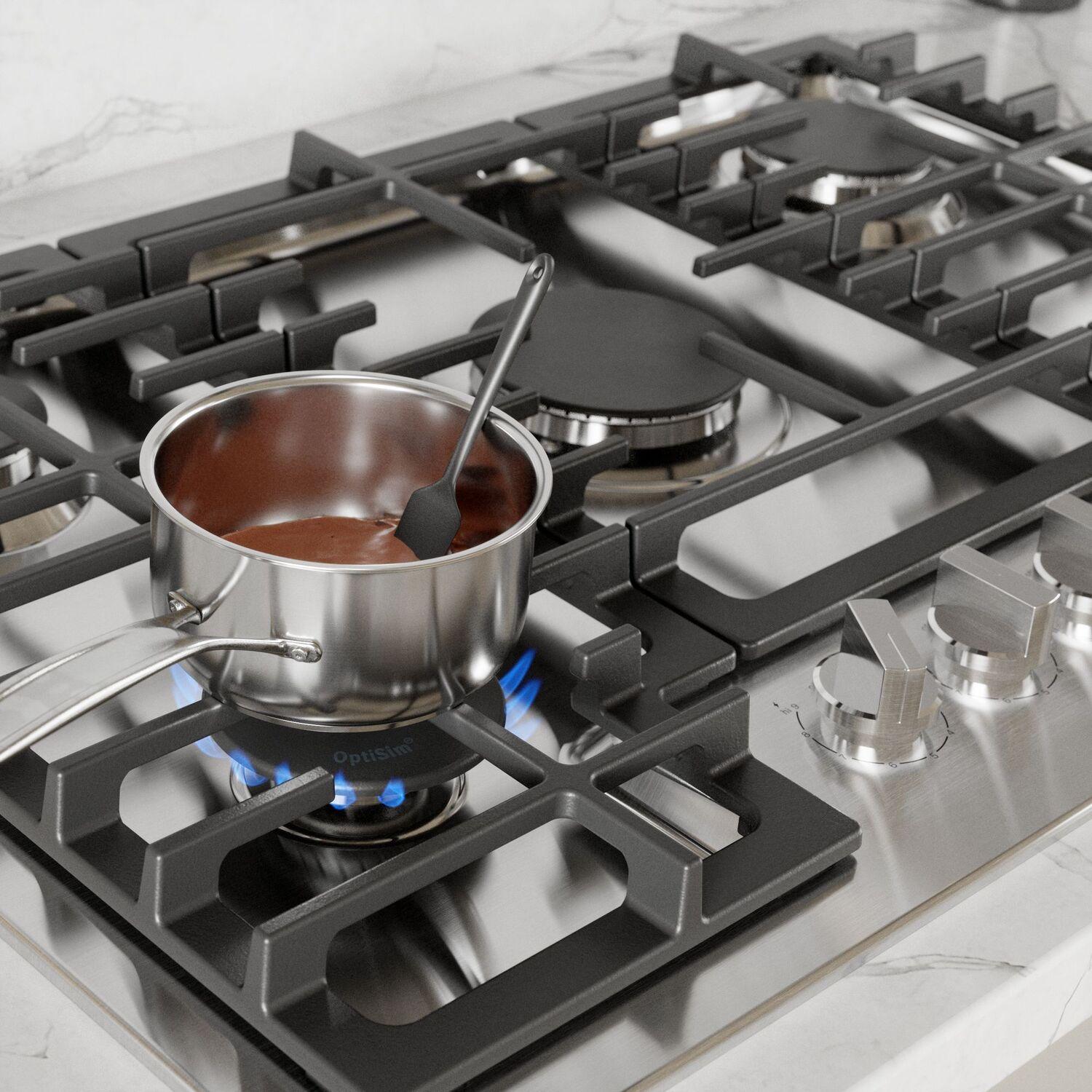

Simmer delicate sauces with the OptiSim(R) Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever.

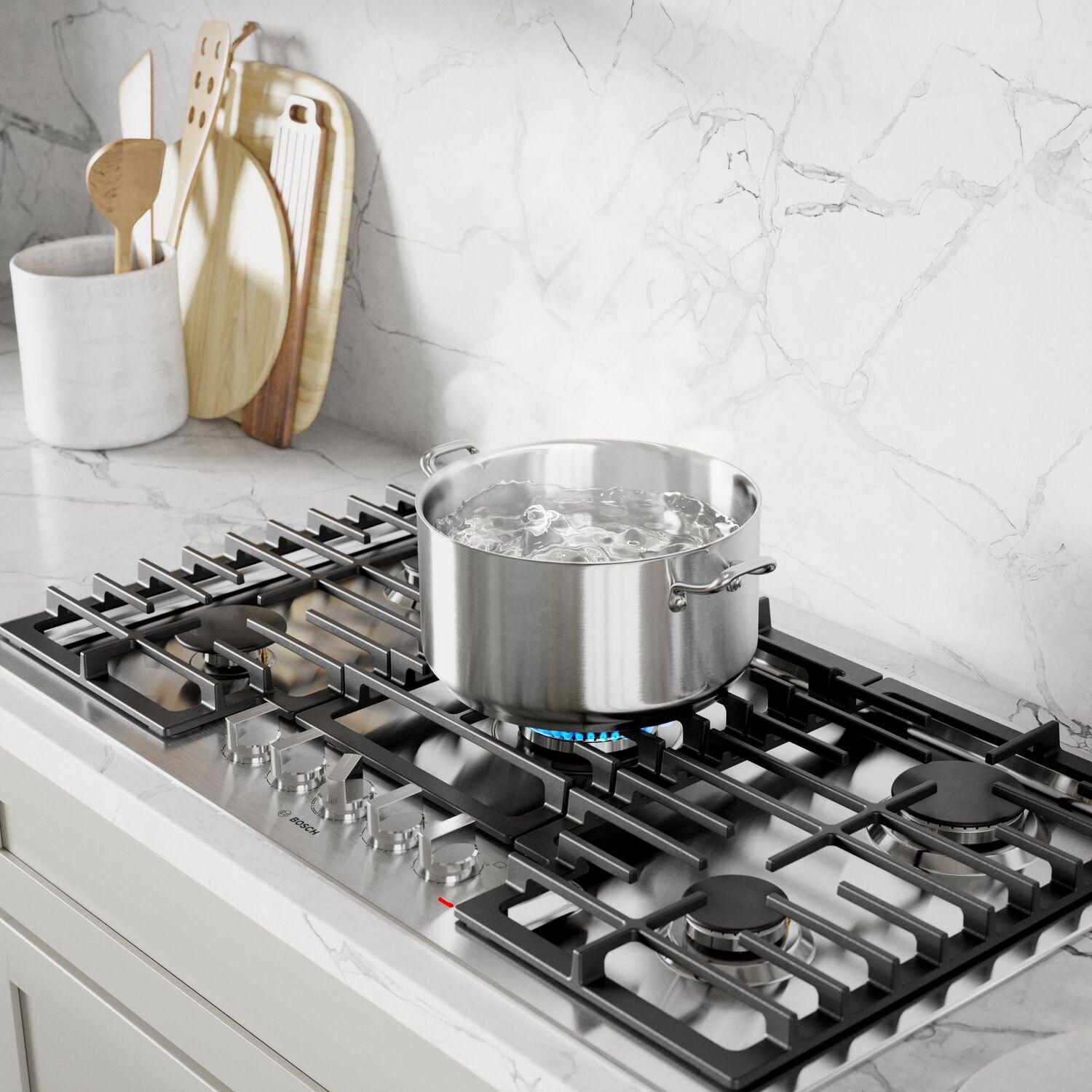

Slide your pans from burner to burner
The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
- 5 high efficiency burners
- 5 high-efficiency burners with a 16,000 BTU power burner
- Heavy duty metal knobs
- OptiSim burner design delivers precise simmering and melting
- OptiSim burner
- Low profile one-piece stainless steel design makes clean-up easy
- Continuous grates
- Full width, continuous surface cast iron grates make moving pots easier
- Stainless steel surface
- Seamless and low profile one-piece, 36" stainless steel design makes clean-up simple
- For added safety and peace of mind, Flame Safe thermocouple feature will switch off the gas supply if flame temporarily extinguishes

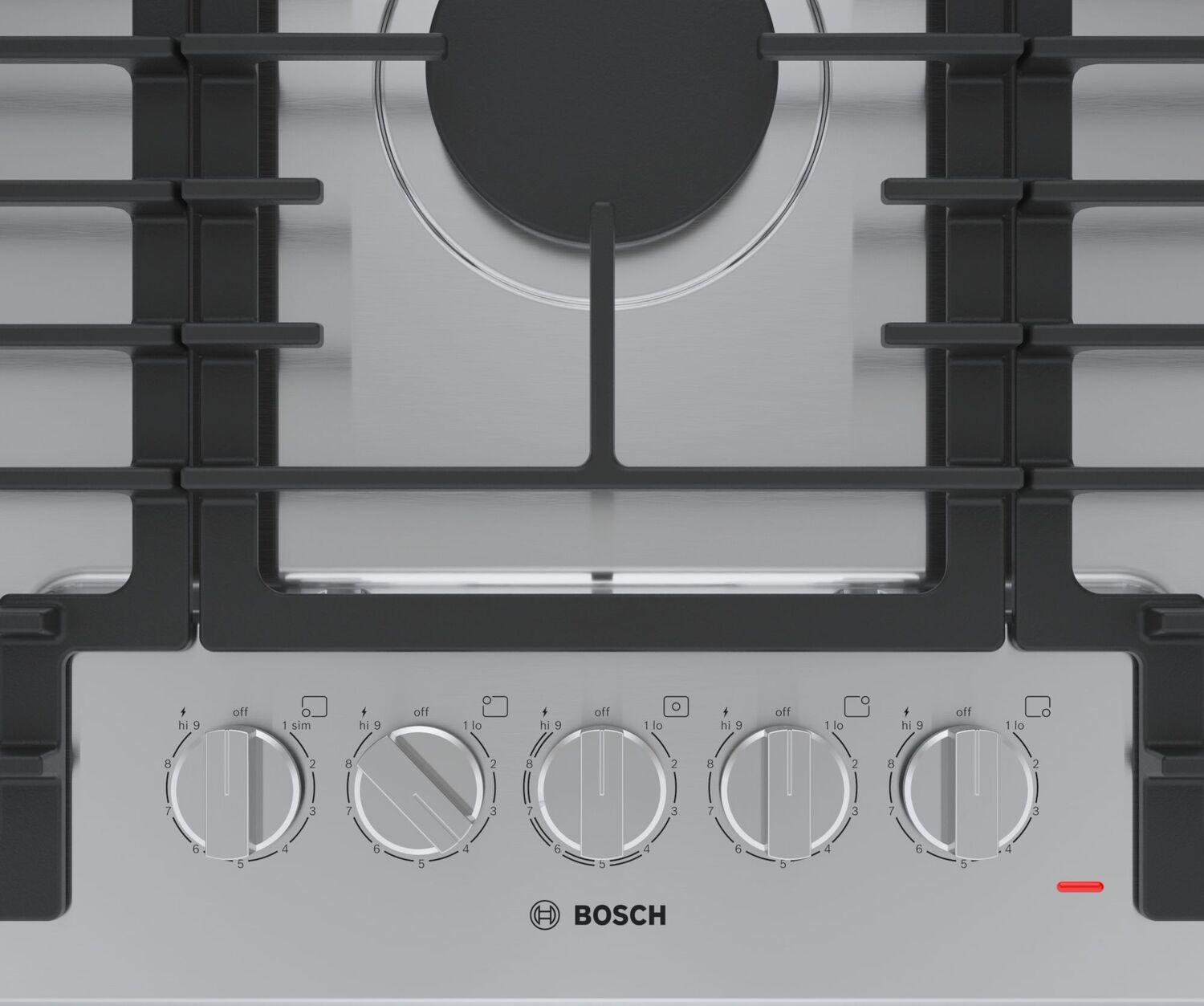

- Distinctive red LED light indicates if burners are on
- Low-profile design for an integrated transition to the counter surface
- LP conversion kit included for conversion from natural gas to liquid propane
- One year limited manufacturer s warranty
- Complete your kitchen with coordinated Bosch ovens and ventilation
- Perfect results are within reach with up-front centralized controls
- Sealed burners prevent spills from entering the burner box
- STAR-K Sabbath compliant
| Specifications | |
| General | |

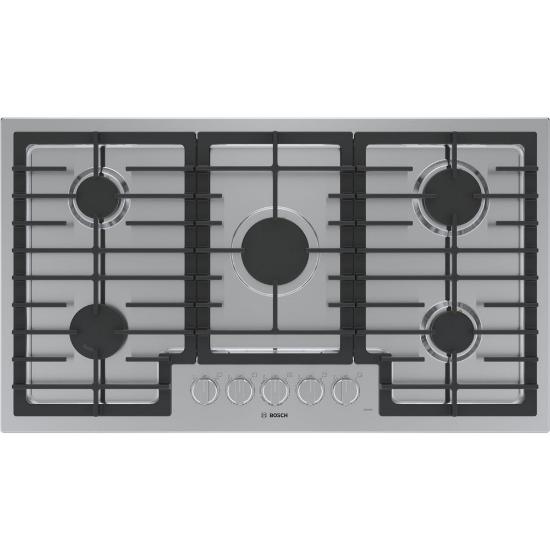

| Material Number | NGM5659UC |
| Brand Name | Bosch |
| Category | Gas Cooktops - 5 Burners |
| Product Name | 500 Series, Gas hob, 36'', Stainless steel |
| Upc | 825225972594 |
| Series | 500 Series |
| Appliance Color/Finish | Stainless Steel |
| Included Accessories | 1 x nozzle set for liquid gas, 3 x cast iron pan support |
| Installation | Built-in |
| Ada Compliant | No |
| Basic Surface Material | Stainless steel |
| Extralow® Burners | No |
| Lp Gas Connection Rating (Btu) | 41400 |
| Natural Gas Connection Rating (Btu) | 41400 |
| Number Of Gas Burners | 5 |
| Technical Specifications | |
| Connection Rating (W) | 360 |
| Energy Input | Gas |
| Fuse Protection (A) | 15 |
| Gas Type | Natural gas 15 mbar (USA) |
| Power Levels | Standard valve |
| Voltage (V) | 120 |
| Frying Sensor | No |
| Design | |
| Basic Touch Control | No |
| Burner Grate Material | Cast Iron |
| Comfort Touch Control | No |
| Directselect | No |
| Directselect Premium | No |
| Flameselect | No |
| Location Of Control Panel | Front |
| Number Of Induction Plates | 0 |
| Number Of Radiant Plates | 0 |
| Perfectfry | No |
| Powermove | No |
| Residual Heat Iidicator | No |
| Sealed Burners | Yes |
| Special Features | Simmer Cap |
| Total Number Of Positions That Can Be Used At The Same Time | 5 |
| Touch Slider | No |
| Type Of Control | mechanical |
| Wok Burner | No |
| Electric Cooktop Features - Automatic Setting Transfer | No |
| Electric Cooktop Features - Increase/ Decrease Power Level Via Move Mode | No |
| Glass Protect | No |
| Convenience | |
| Keep Warm Function | No |
| Timer | No |
| Connectivity | |
| Connected Appliances With Home Connect | No |
| Flexibility Of Cooking Zones | |
| Automatic Connection/ Separation Of The Cooking Zones | No |
| Extended Flexinduction | No |
| Flexinduction | No |
| Teppanyakipro™ | No |
| Size And Weight | |

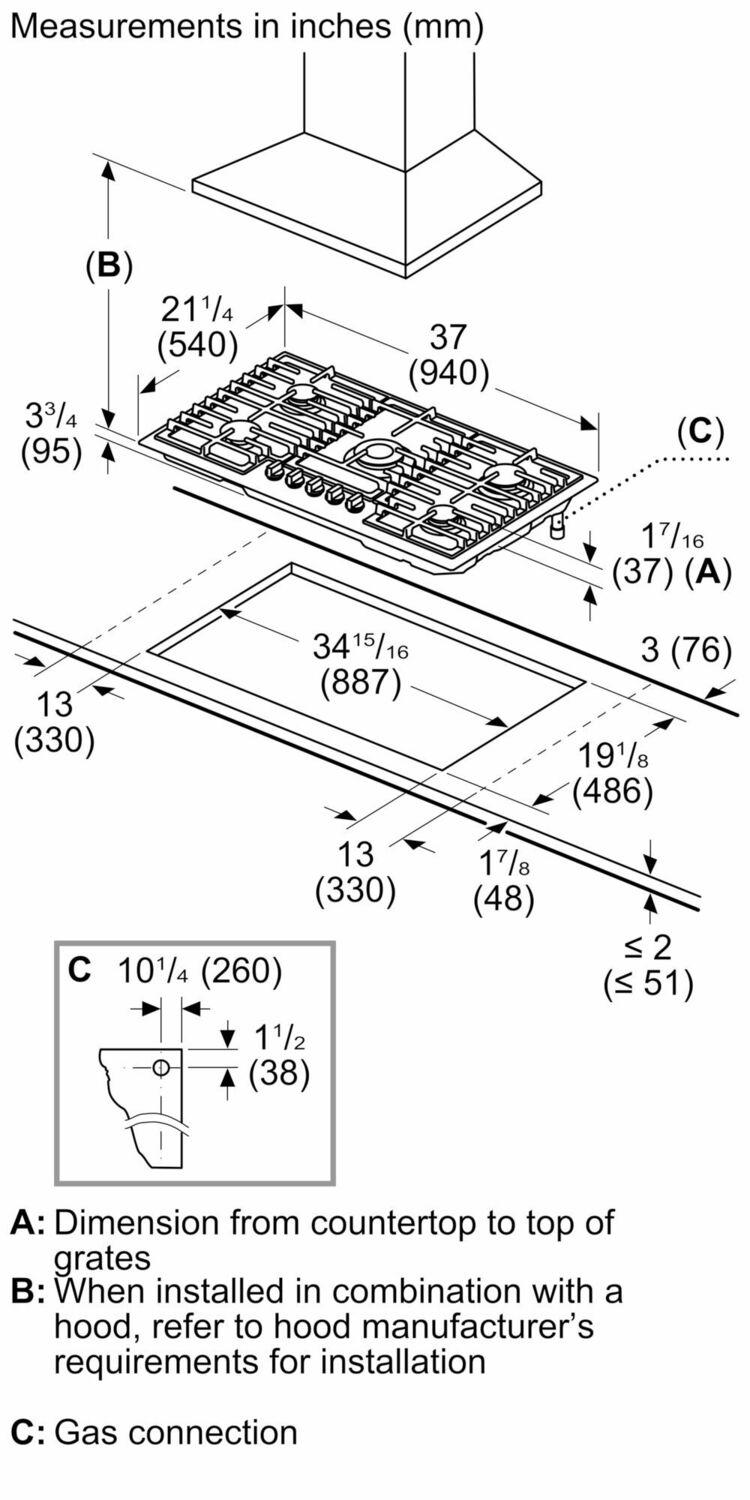

| Appliance Dimensions (H X W X D) (In) | 3 13/16'' x 37'' x 21 1/4'' |
| Required Cutout/Niche Size For Installation (In) | 3 13/16'' x 34 15/16'' x 19 1/8'' |
| Installation | |
| Alternative Gas Type | Liquid gas 27,5 mbar (USA) |
| Plug Type | 120V-3 prong |
Products specifications
| Color | STAINLESS STEEL |
| WiFi Connected | No |
| Height | 3.80, 5.00 |
| Width | 37.00 |
| Depth | 21.25, 22.00 |
| Burner Type | Sealed |
| Number of Burners | 5 |
