Select your ideal temperature
The precise temperature selection results in consistent, perfect results whether you re searing a steak, grilling salmon or veggies, or delicately melting chocolate.

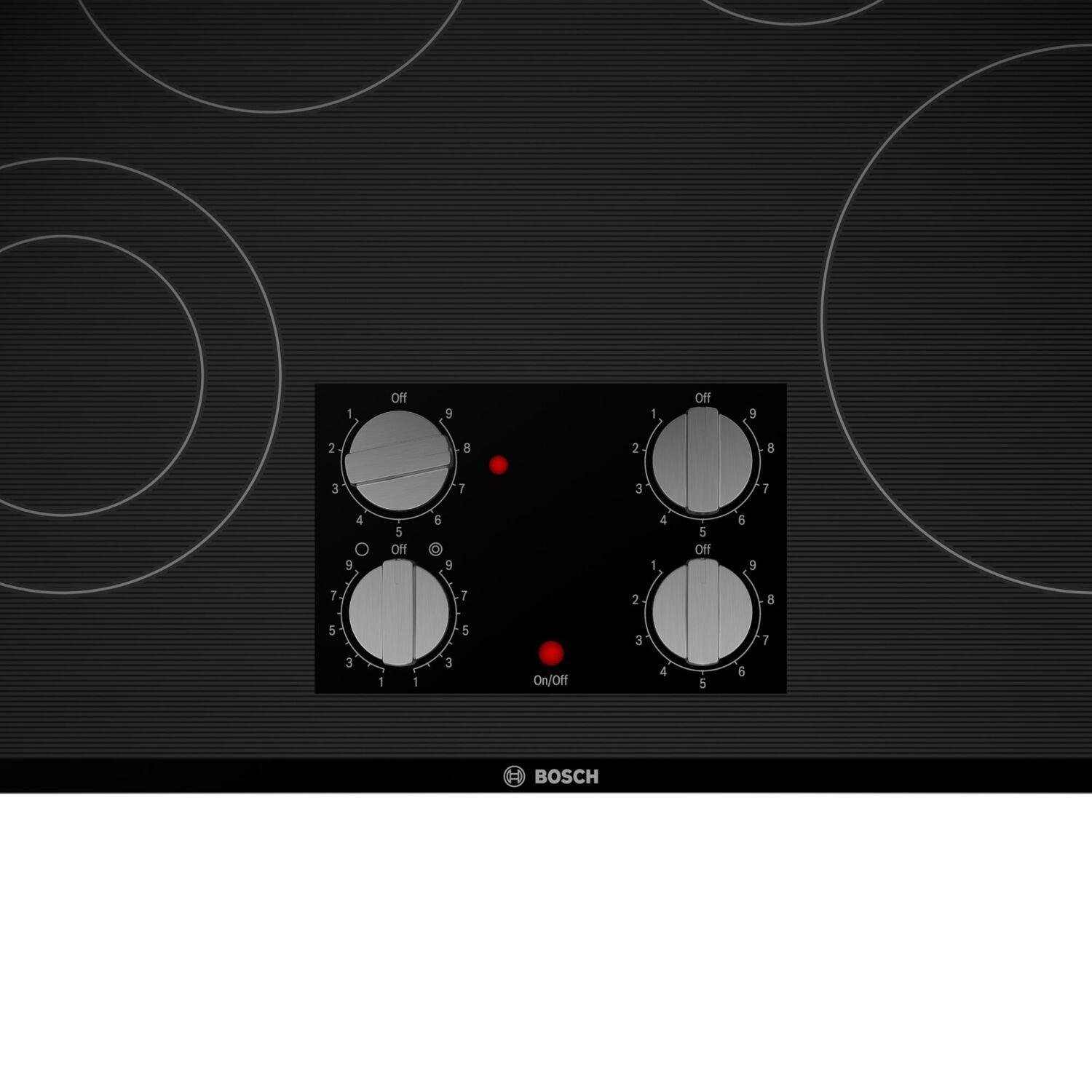

Know when the surface is hot
For added safety, the control panel also has a heat indicator to let you know which sections are still hot after you finish cooking. Once the surface reaches a safe temperature, the indicator turns off.

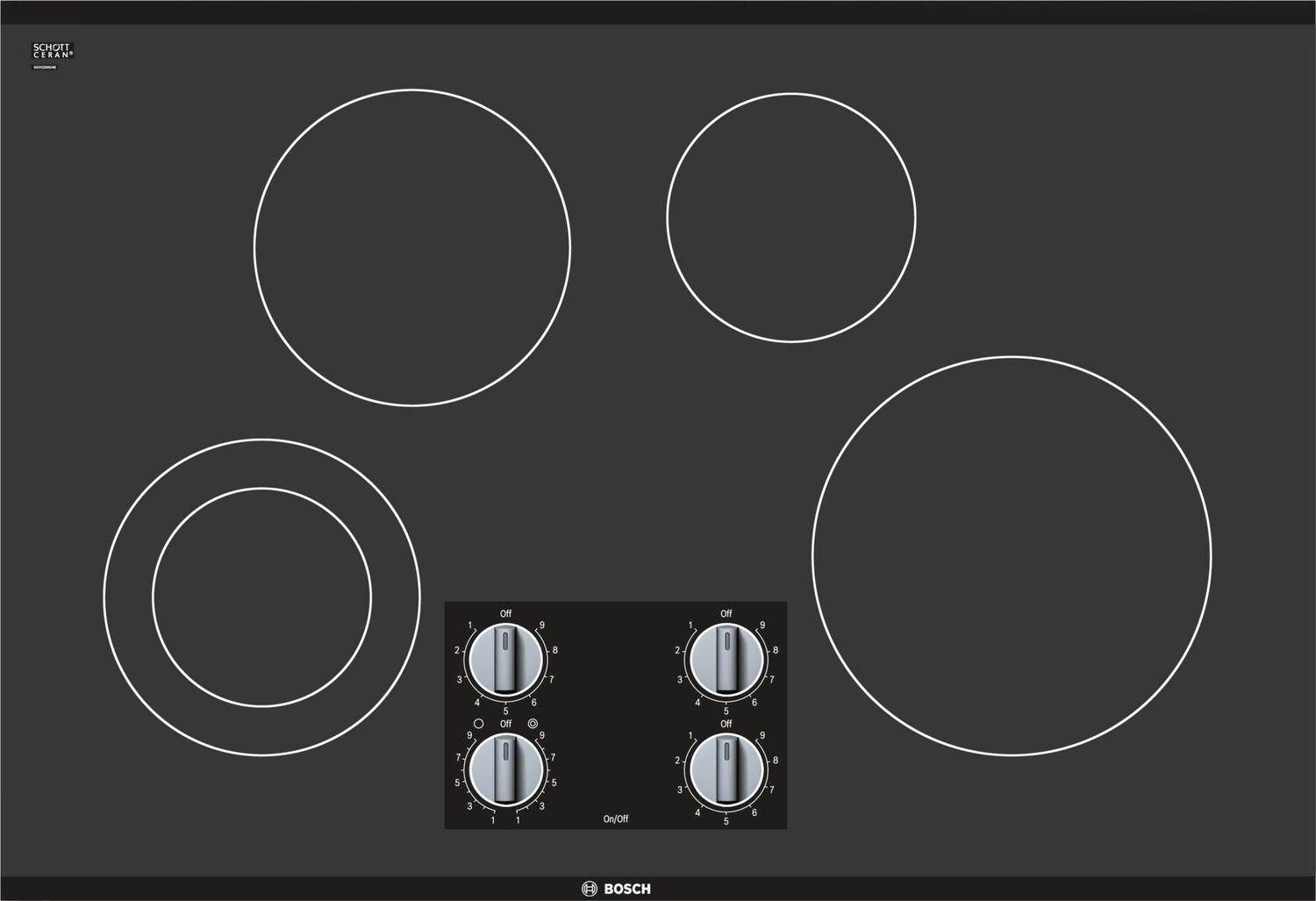

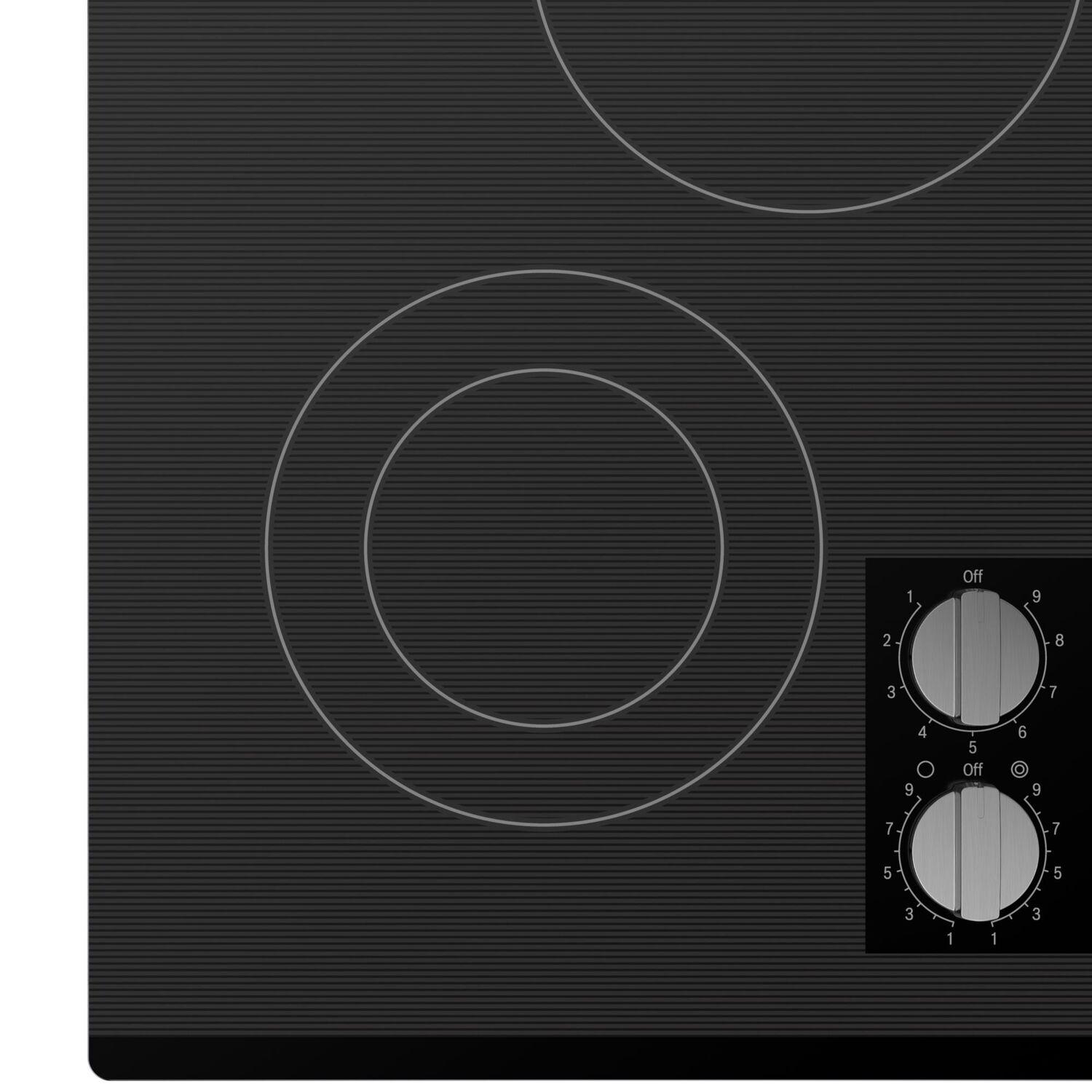

Accomodate different pan sizes
The Dual Cooking Element offers different sized elements to accomodate different sized pots and pans.

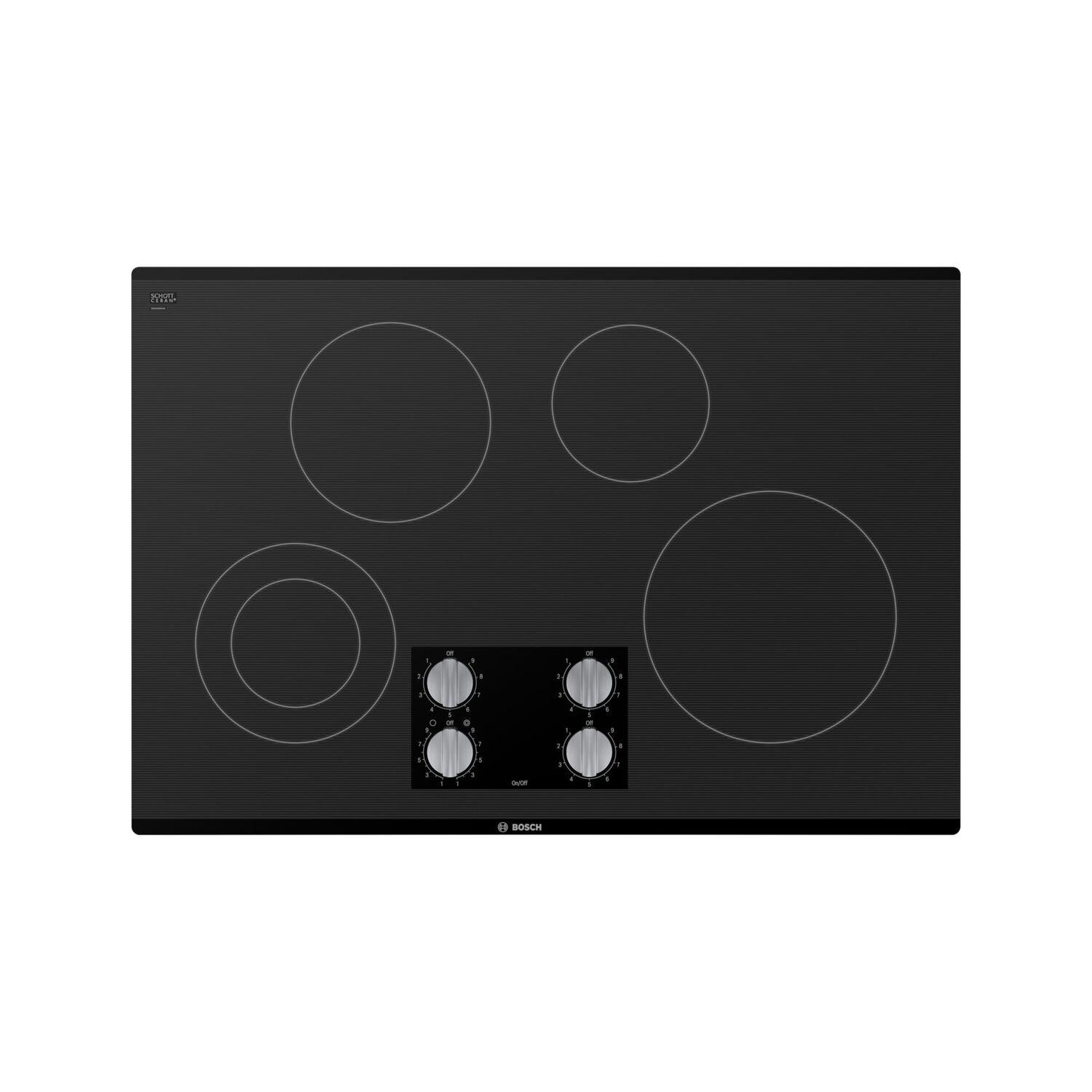

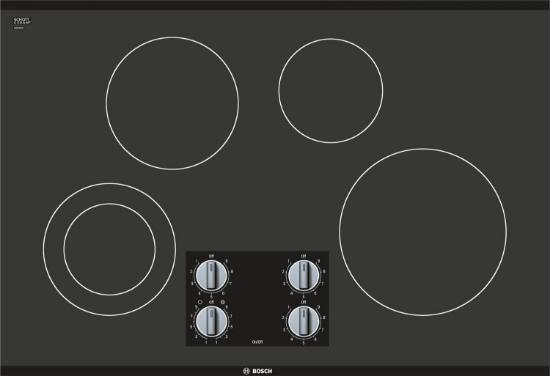

- 4 cooking elements, including a dual element for multiple pot sizes and a 2,500-watt element for fast boiling
- Smooth surface cooktop is easy to clean and offers a modern look
- Infinite temperature controls provide precise heat for delicious results

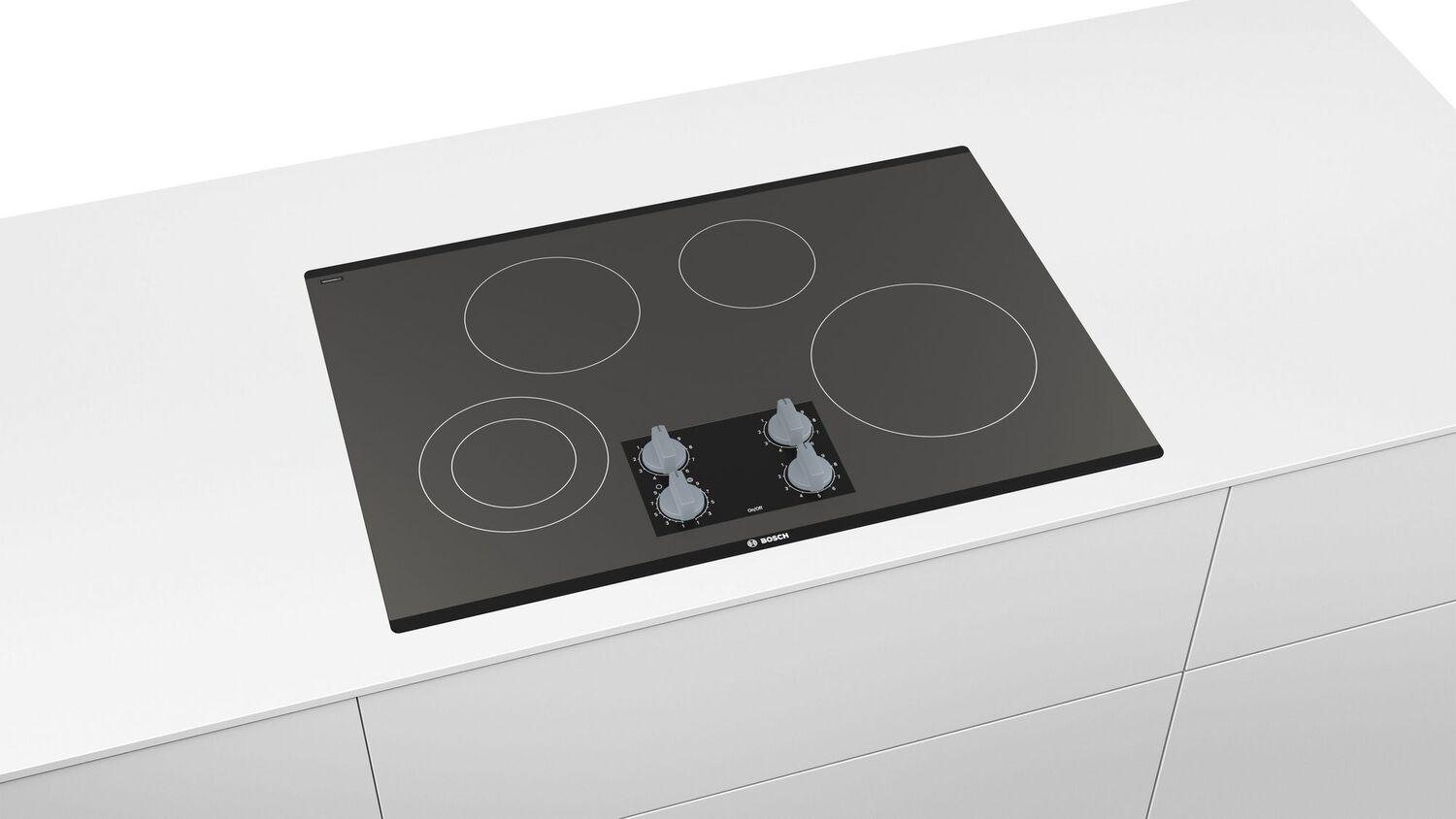

- Installable over most single wall ovens for added convenience
- Two-level heat indicator lets you know when the cooktop is warm or hot for added safety
| Specifications | |
| General | |
| Material Number | NEM5066UC |
| Brand Name | Bosch |
| Category | Electric Cooktops |
| Product Name | 500 Series, Electric hob, 30, surface mount without frame |
| Upc | 825225907480 |
| Series | 500 Series |
| Appliance Color/Finish | Black |
| Installation | Built-in |
| Ada Compliant | No |
| Basic Surface Material | Ceramic |
| Cooking Zone Flexibility | Two-ring cooking zone |
| Extralow® Burners | No |
| Number Of Gas Burners | 0 |
| Technical Specifications | |
| Connection Rating (W) | 7200 |
| Energy Input | Electric |
| Type Of Electrical Connection | 2 phase |
| Voltage (V) | 240 |
| Frying Sensor | No |
| Design | |
| Basic Touch Control | No |
| Comfort Touch Control | No |
| Directselect | No |
| Directselect Premium | No |
| Flameselect | No |
| Location Of Control Panel | Front |
| Number Of Induction Plates | 0 |
| Number Of Radiant Plates | 4 |
| Perfectfry | No |
| Powermove | No |
| Residual Heat Iidicator | Yes |
| Sealed Burners | No |
| Total Number Of Positions That Can Be Used At The Same Time | 4 |
| Touch Slider | No |
| Type Of Control | mechanical |
| Wok Burner | No |
| Electric Cooktop Features - Automatic Setting Transfer | No |
| Electric Cooktop Features - Increase/ Decrease Power Level Via Move Mode | No |
| Glass Protect | No |
| Convenience | |
| Keep Warm Function | No |
| Timer | No |
| Connectivity | |
| Connected Appliances With Home Connect | No |
| Flexibility Of Cooking Zones | |
| Automatic Connection/ Separation Of The Cooking Zones | No |
| Flexinduction | No |
| Teppanyakipro™ | No |
| Size And Weight | |

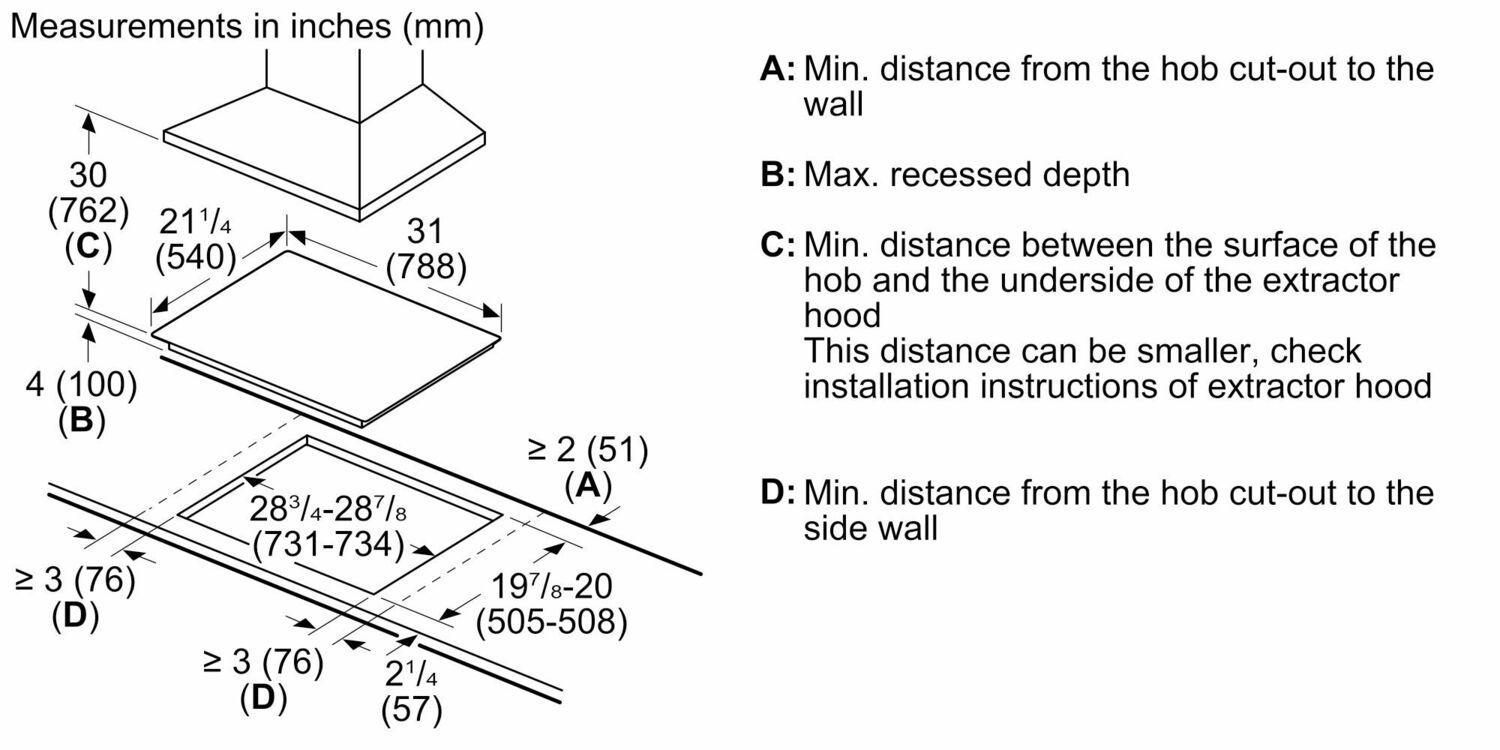

| Appliance Dimensions (H X W X D) (In) | 1/4" + 4 x 31" x 21 1/4" |
| Required Cutout/Niche Size For Installation (In) | 4 x 28 3/4 x 19 7/8 |
| Installation | |
| Plug Type | No plug (electrical connection by electrician) |
Products specifications
| ADA COMPLIANT | No |
| BLUETOOTH | No |
| Color | STAINLESS STEEL, BLACK |
| Height | 8.00, 4.25 |
| Width | 38.00, 31.00 |
| Depth | 24.00, 21.25 |
| WiFi Connected | No |
| Power Source | Electric |
| Surface Type | Ceramic |
| Element Type | Radiant Elements |
| Number of Elements | 4 |
