Product Recommendations
Crystal Glass
Wash fragile items made of crystal/glass, such as crystal glass from Orrefors, using the gentle dishwashing program Crystal glass.
Status Light(TM)
ASKO's new generation dishwashers have Status Light(TM) -a small light placed in the bottom right corner to let you know the actual status of the program.
17 - Loading capacity

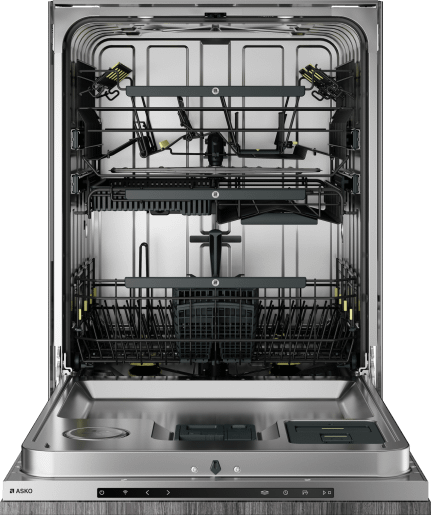

Room for 17 place settings, fit larger pots and plates in the upper rack. Our XXL dishwasher have four level rack system including; Knife rack, Upper rack, Middle rack, Lower rack.
Adjustable power zones
Adjustable power zonesTo make an already powerful cleaning system even more powerful, we have created two adjustable "power zones" with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There's also a "bridging function" where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don't need them simply switch them off

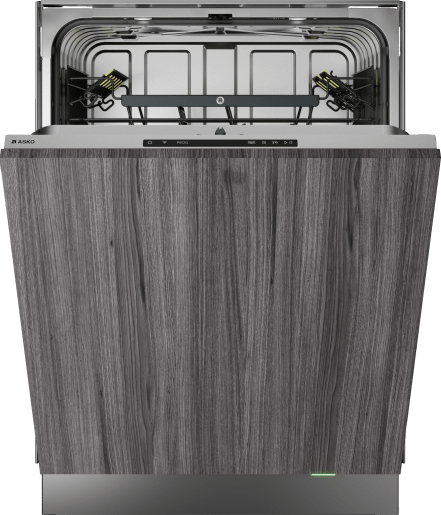

60 Series, fully integrated XXL dishwasher tested for 20 years of use with a three-level Flexi Racks system, a low noise level <39 dB>, Status Light, Turbo Combi Drying, Auto Dose, push-to-open door and connectivity. The Adjustable power zones and the effective Super Cleaning System ensure perfectly clean dishes.
| Construction and performance | |
| 8 Steelâĸ - Vital parts of the dishwasher made in stainless steel | Yes |
| No need to rinse the dishes thanks to Super Cleaning Systemâĸ | Yes |
| Automatic water-softener for better washing performance | Yes |
| Number of spray arms | 2 |
| Number of spray zones | 10 |
| Use and flexibility | |
| Number of place settings | 17 |
| Number of racks | 3 |
| Top tray | Without top tray |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lockâĸ for fastening lightweight items |
| Upper basket system | Easy height adjustable with lever |
| Upper basket | Dividable pin rows Wine glass fixings in TPE Sliding tines for easy adaptation to stone ware etc. Perfect ergonomy with easy sliding telescopic rails Light Lockâĸ for fastening lightweight items China Guard - Protects fragile load from the rotating spray arm Extra wide knife stand Two foldable glass supports Divisble/foldable wine shelves to left Foldable wine shelves to right Handle with ASKO logo Small distance between the basket threads - makes loading easy and prevents small items to fall through |
| Middle basket | Removable rack for large utensils Removable rack for bowls, cups and glasses Handle Middle basket connection fitted with non-return valve Perfect ergonomy with easy sliding telescopic rails |
| Lower rack type | Exclusive |
| Lower rack | Sliding tines for easy adaptation to stone ware etc. Cutlery basket Vase/bottle holder for cleaning vases/baby bottles Foldable/divisible front pin row Foldable/divisible rear pin row Handle with ASKO logo Small distance between the basket threads - makes loading easy and prevents small items to fall through. |
| Automatic dosing system | Yes |
| Interaction and control | |
| Wifi | Yes |
| Type of display | Graphic TFT display |
| Status Lightâĸ - Visual indication of dishwashing progress | Yes |
| Remaining time indication | Yes |
| Wash end indication | Displayed with sound and light |
| Functions, programs and modes | |
| Programs | Anti odour Sanitize Light wash Self cleaning Quick Pro wash Crystal glass Lower half Upper half Rinse and hold programme Plastic wash Time program ECO wash Standard Auto wash Intensive program |
| Delayed start | Possible to delay up to 24 hours |
| Design and integration | |
| From the front adjustable door spring | Yes |
| From front adjustable rear foot | Yes |
| Installation | Velcro strips for easy mounting and adjustment of the separate custom door Multi fit outlet hose Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Trim kit Steam protection strip |
| Sliding door | No |
| Possible to install elevated | Yes |
| Custom door size | Custom door size 700-800 |
| Min. niche width | 24 |
| Min. niche height | 33 7/8 |
| Depth (incl. wall spacing) | 21 7/8 |
| Max Height adjustment | 2 1/16 |
| Safety and maintenance | |
| Aqua Safeâĸ | Anti Blockâĸ - Self cleaning drain pump Light and sound alarm Maximum time for water intake Extra durable PEX inlet hose Stand-by water protecion - Leakage detection when machine is off Aqua Levelâĸ Sensor - Ensures an optimized water level Aqua Detectâĸ - Instant recognition of any leakage in the motor compartment Detection of water leakage on the bottom plate Waterproof bottom plate Extra durable stainless steel container Sealing points outside container |
| Aqua Safeâĸ system | Yes |
| Child safety | Kid Safeâĸ - Lockable controls |
| Indication of low level of rinse-aid | Notification in display |
| Technical data | |
| Water connection | Hot or cold |
| Adapter for water connection | No |
| Max. temperature of inflow water | 140 |
| Noise level (max) | 39 |
| Reference programme | 1 |
| Duration of standard programme | 125 |
| Estimated yearly energy consumption | 220 |
| Energy consumption - normal program | 1 |
| Estimated annual water consumption | 647.5 |
| Water consumption | 3 |
| Power consumption in standby mode | 0.5 |
| Plug type | USA |
| Connected load | 1300 |
| Voltage (V) | 120 V |
| Number of phases | 1 |
| Fuse | 15 |
| Frequency | 60 Hz |
| Required inlet water pressure psi | 0,03-1 |
| Dimensions | |
| Width | 23 15/16 |
| Height | 33 13/16 |
| Depth | 21 13/16 |
| Maximum product height | 35 7/8 |
| Length of electrical cord | 71 7/16 |
| Depth with door open | 48 7/16 |
| Length inlet hose | 64 3/16 |
| Logistic information | |
| Packaging width | 25 3/16 |
| Packaging height | 36 5/8 |
| Packaging depth | 26 3/4 |
| Gross weight | 106.5 |
| Product code | 740096 |
| EAN code | 3838782634703 |
Products specifications
| Color | PANEL READY |
| WiFi Connected | No |
| Tub Material | Stainless Steel |
| Height | 33.81 |
| Width | 23.94 |
| Depth | 21.81 |
| Decibel Rating | 39 |
