Status light
A small light placed in the bottom right corner indicates the current status of a program with three colours: Blue tells you when you can still open the door to load more items, red tells you when it s too late to do so and green tells you when the dishes are ready. The Status Light(TM) can be either face-on or as a spot on the floor.
Super Cleaning System(TM) (SCS(TM))
Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One - and we call it the Super Cleaning System - or our best invention.
8 Steel(TM)
8 Steel(TM) - more steel less plastic. No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.
Turbo Combi Drying(TM)
Turbo Combi Drying(TM) benefits from both the innovative Turbo Drying(TM) system and natural drying with dry indoor air. Our Turbo Drying(TM) system begins the drying process and is followed with the door automatically opens to finish the drying with indoor air.
Aqua Safe(TM) system
Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe(TM) system is an advanced safety system which ensures a leak-safe dishwasher day and night.
Flexiracks(TM)
ASKO Flexiracks(TM) from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.
XL dishwashers
Our XL dishwashers have a loading height of 23 15/64". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.
Top cutlery tray
The top tray for cutlery and kitchen utensils is easy to remove for easy unloading. With a width of 12-3/4" the centred tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray. And with the Instant Lift(TM) you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".
Instant Lift(TM)
Our InstantLift(TM) height adjustment system, allows for freeing up between 1-1/2" or 2-1/4" in the upper rack,. A simple and flexible way to make room for it all.
3 Level rack
ASKO s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.
Telescopic rails
ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.
16 - Loading capacity
The world s biggest load capacity. The latest addition to our rack system is a flexible top cutlery tray with its own spray arm and space for sixteen sets of cutlery, small bowls, or other utensils that can be difficult to load. The width of the top cutlery tray has been optimised to make room for tall glasses in the upper rack and, if more space is needed simply take the top cutlery tray out.
Knife holders
Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.
Focus points
Opening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place - where it doesn t compete for space or attention - instead, it makes the room.
Adjustable power zones
Adjustable power zonesTo make an already powerful cleaning system even more powerful, we have created two adjustable power zones with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There s also a bridging function where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don t need them simply switch them off
Tested for 20 years*
At ASKO, we don t just design appliances - we challenge them. Our dishwashers undergoes rigorous tests simulating 20 years of average household use. While this doesn t guarantee a 20-year lifespan, it reflects our commitment to exceptional durability and performance. Because your home deserves appliances that go the distance. *This does not represent any assurance or guarantee of durability of our marketed product series for 20 years.

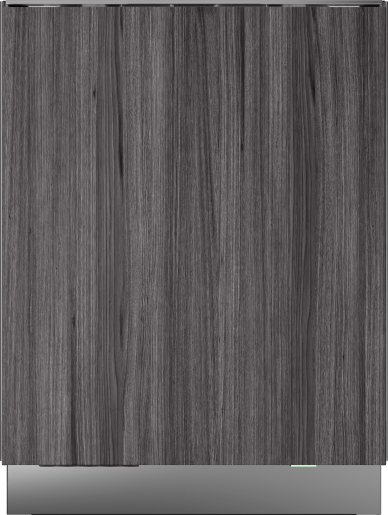

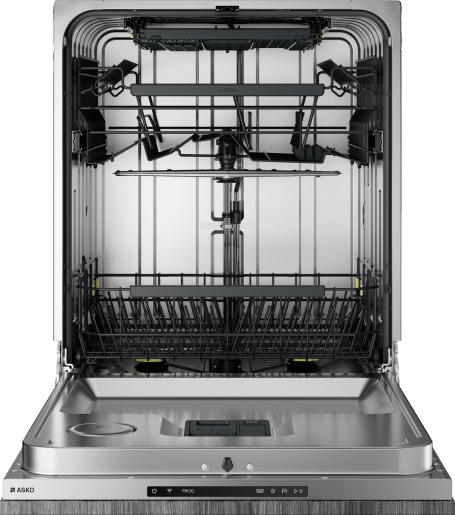

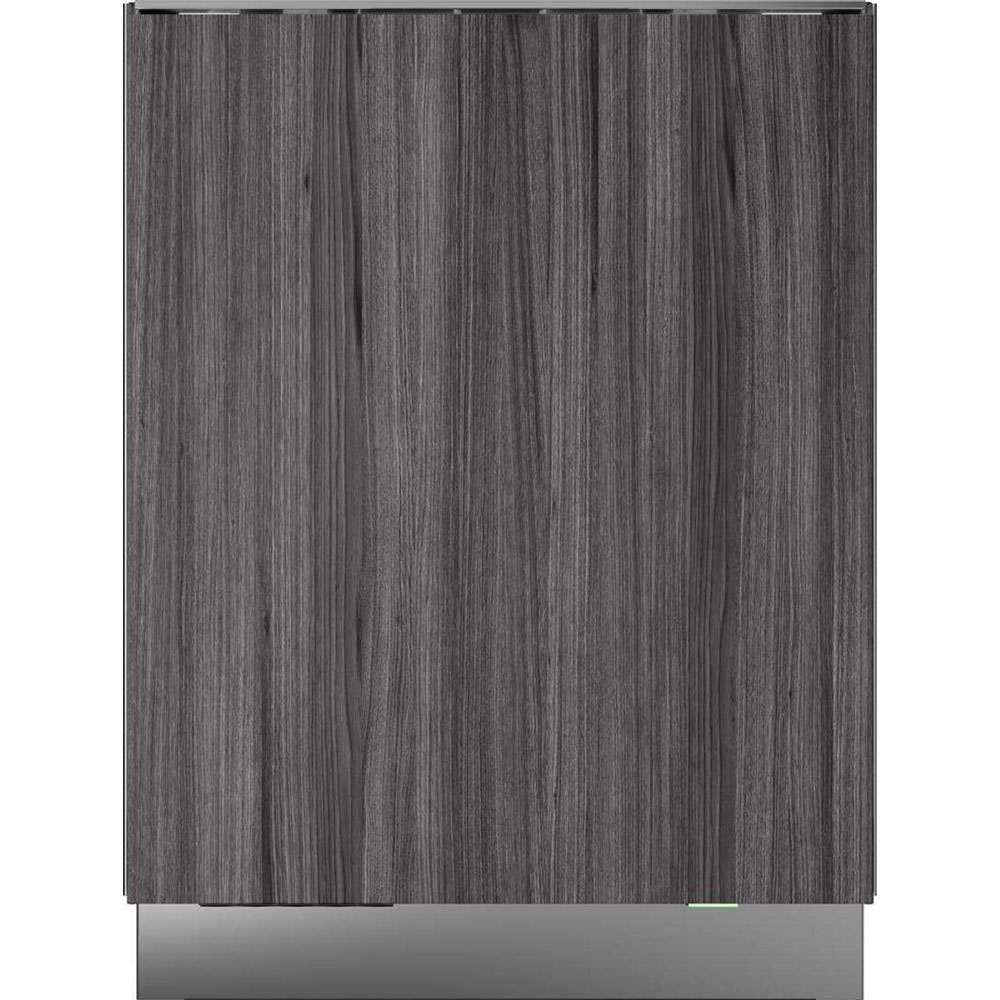

An ADA height compliant, 40 Series, fully integrated XL dishwasher tested for 20 years of use with three-level Flexi Racks system, a low noise level <42 dB>, Status Light and Turbo Combi Drying. The Adjustable power zones and the effective Super Cleaning System ensure perfectly clean dishes.
| Construction and performance | |
| 8 Steel™ - Vital parts of the dishwasher made in stainless steel | Yes |
| No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
| Automatic water-softener for better washing performance | No |
| Number of spray arms | 3 Number of spray arms |
| Number of spray zones | 9 |
| Cleaning systems | Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off. Stainless steel spray arms Aqua Level™ Sensor No need to rinse the dishes thanks to Super Cleaning System™ Cutlery Spray™ - Extra dishwashing power for the cutlery basket |
| Use and flexibility | |
| Number of place settings | 16 Number of place settings |
| Number of racks | 3 |
| Top tray | Easy height adjustment Handle Removable |
| Upper rack type | Premium, fixed tines and foldable wine shelves |
| Upper basket system | Switch wheels |
| Upper basket | Standard knife stand Fixed glass support Fixed pin rows Foldable wine shelves to right Foldable wine shelves to left Handle with plastic logotype Small distance between the basket threads - makes loading easy and prevents small items to fall through |
| Middle basket | Without middle basket |
| Lower rack type | Premium - Basket wiring in steel, fixed pin rows and removable cutlery basket |
| Lower rack | Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle with plastic logotype Foldable/divisible rear pin row Cutlery basket |
| Automatic dosing system | No |
| Interior light | No |
| Interaction and control | |
| Wifi | No |
| Type of display | LCD display |
| Status Light™ - Visual indication of dishwashing progress | Yes, spot on floor |
| Remaining time indication | Yes |
| Wash end indication | Displayed with sound and light |
| Language settings | Chinese simpified Chinese traditional Swedish Slovenian Slovak Russian Portuguese Polish Norwegian Dutch Latvian Lithuanian Japanese Italian Croatian French Finnish Estonian Spanish English German Danish Czech Ukrainian |
| Functions, programs and modes | |
| Programs | Anti odour Sanitize Light wash Self cleaning Rinse and hold programme Time program Standard Intensive program Quick wash |
| Delayed start | Possible to delay up to 24 hours |
| Options and modes | Enable/disable automatic door opening Super Rinse™ - Two extra rinses Time set Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Heat Boost Mode |
| Design and integration | |
| From the front adjustable door spring | Yes |
| From front adjustable rear foot | Yes |
| Installation | Steam protection strip Trim kit Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Multi fit outlet hose Velcro strips for easy mounting and adjustment of the separate custom door |
| Sliding door | No |
| Possible to install elevated | Yes |
| Custom door size | Custom door size 680-760 |
| Min. niche width | 24 Min. niche width |
| Min. niche height | 32 5/16 Min. niche height |
| Depth (incl. wall spacing) | 21 7/8 " (incl. wall spacing) |
| Max Height adjustment | 2 1/16 Max " adjustment |
| Adjustable kick plate | 30-94/0 |
| Safety and maintenance | |
| Aqua Safe™ | Anti Block™ - Self cleaning drain pump Light and sound alarm Maximum time for water intake Extra durable PEX inlet hose Stand-by water protecion - Leakage detection when machine is off Aqua Level™ Sensor - Ensures an optimized water level Aqua Detect™ - Instant recognition of any leakage in the motor compartment Detection of water leakage on the bottom plate Waterproof bottom plate Extra durable stainless steel container Sealing points outside container |
| Aqua Safe™ system | Yes |
| Child safety | Kid Safe™ - Lockable controls |
| Indication of low level of rinse-aid | Notification in display |
| Technical data | |
| Water connection | Hot or cold |
| Adapter for water connection | No |
| Max. temperature of inflow water | 140 Max. temperature of inflow water |
| Noise level (max) | 42 Noise level (max) |
| Reference programme | 1 |
| Duration of standard programme | 125 Duration of standard programme |
| Estimated yearly energy consumption | 220 Estimated yearly energy consumption |
| Energy consumption - normal program | 1 Energy consumption - normal program |
| Estimated annual water consumption | 647.5 Estimated annual water consumption |
| Water consumption | 3 Water consumption |
| Power consumption in standby mode | 0.5 Power consumption in standby mode |
| Plug type | USA |
| Connected load | 1300 Connected load |
| Voltage (V) | 120 V |
| Number of phases | 1 |
| Fuse | 15 Fuse |
| Frequency | 60 Hz |
| Required inlet water pressure psi | 0,03-1 |
| Net weight | 88.2 Net weight |
| Dimensions | |
| Width | 23 15/16 " |
| Height | 32 1/4 " |
| Depth | 21 13/16 " |
| Maximum product height | 34 5/16 Maximum product height |
| Length of electrical cord | 71 7/16 " |
| Depth with door open | 46 7/8 " |
| Length inlet hose | 64 3/16 Length inlet hose |
| Length outlet hose | 90 9/16 Length outlet hose |
| Logistic information | |
| Packaging width | 25 3/16 " |
| Packaging height | 35 1/16 " |
| Packaging depth | 26 3/4 " |
| Gross weight | 94.8 Gross weight |
| Product code | 740105 |
| EAN code | 3838782627453 |
Products specifications
| Height | 32.25, 35.00 |
| Width | 23.94, 25.00 |
| Depth | 21.80, 26.00 |
| WiFi Connected | No |
| Color | PANEL READY |
| Decibel Rating | 42 |
